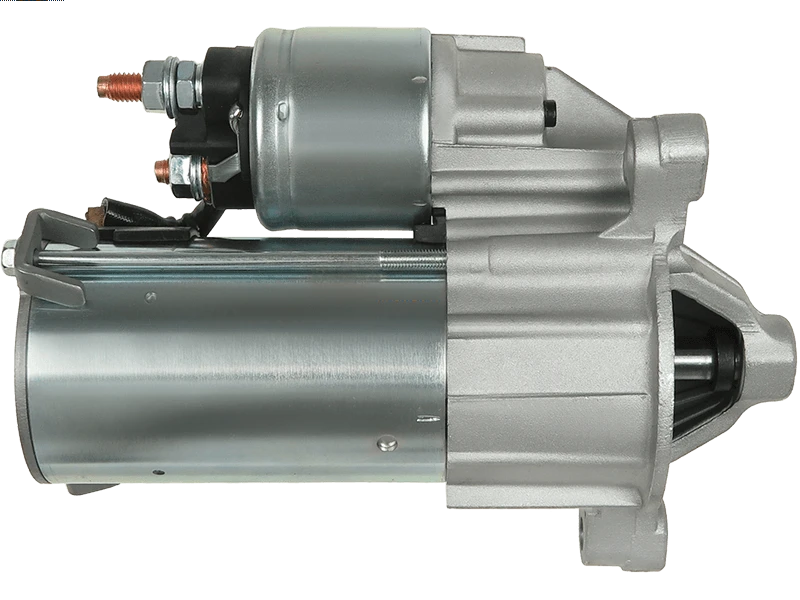

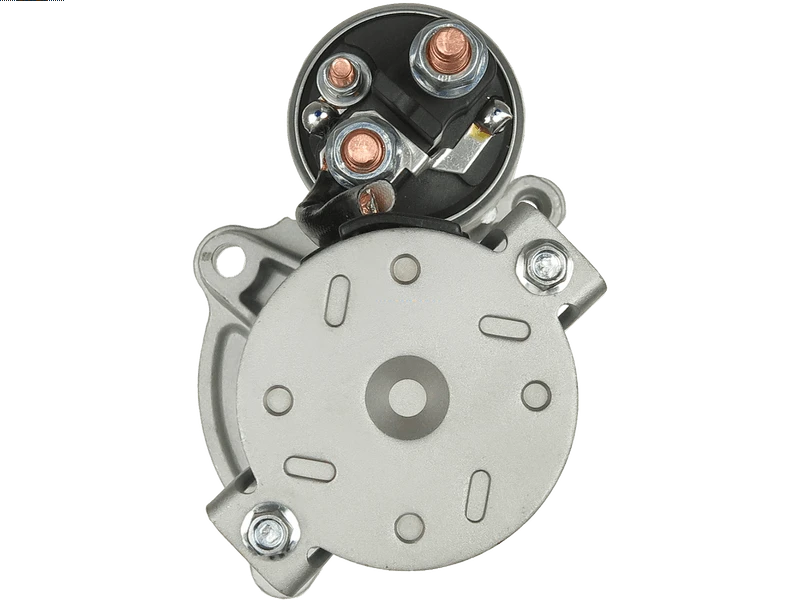

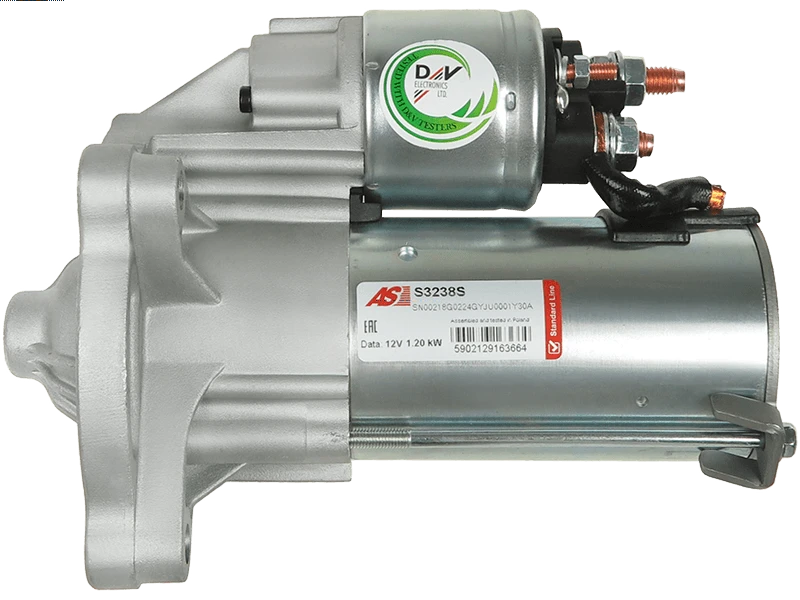

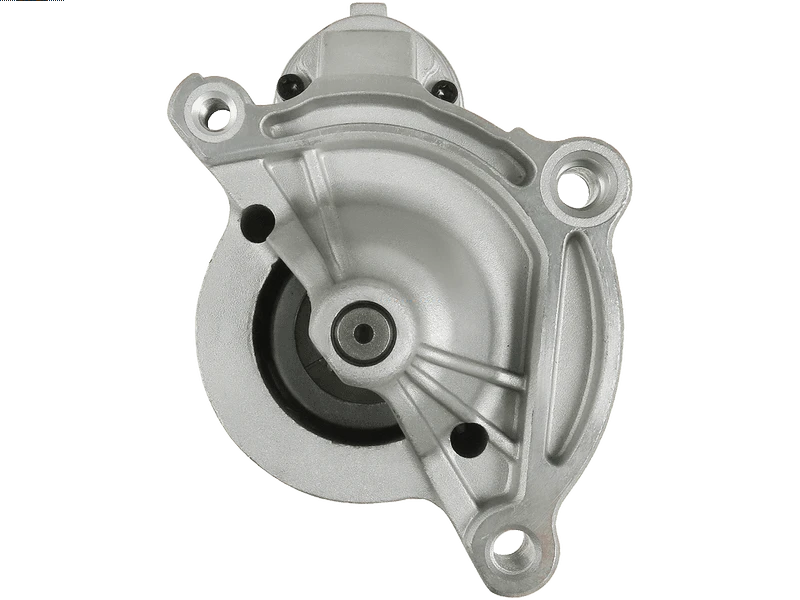

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 212.96 including GST
NZ$ 185.18 excluding GST
or four payments of $53.24
with
Learn More
UOM:
each
Product Code:
S3238S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
TS12-77Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 200 mm |
| Mount Hole Center - Center (O.1) | 85 mm |
| Mount Hole Center - Center (O.2) | 120 mm |
| Mount Hole Center - Center (O.3) | 85 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 9.50 mm |
| Mount Hole Diameter (C.3) | 9.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | -4.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C3 1.6 VTi | [NFP(EC5)] | 02.2017- |
| CITROEN | C-Elysee 1.6 VTi 115 | [NFP(EC5)] | 11.2012- |
| CITROËN | BERLINGO Box Body/MPV (B9) 1.6 | NFR(TU5JP4B) | 04.2008- |
| CITROËN | BERLINGO Box Body/MPV (B9) 1.6 | NFU(TU5JP4) | 04.2008- |
| CITROËN | BERLINGO MULTISPACE (B9) 1.6 | NFU(TU5JP4) | 04.2008- |
| CITROËN | C3 III (SX) 1.6 VTi (SXNFPT) | NFP(EC5) | 02.2017- |
| CITROËN | C-ELYSEE (DD_) 1.6 VTi 115 (DDNFP0, DDNFP6, DDNFP9) | NFP(EC5) | 11.2012- |
| PEUGEOT | 301 1.6 LPG | NFP(EC5) | 07.2014- |
| PEUGEOT | 301 1.6 VTi 115 | [NFP(EC5)] | 11.2012-10.2017 |
| PEUGEOT | 301 1.6 VTi 115 | NFP(EC5) | 11.2012-10.2017 |
| PEUGEOT | 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 VTi (LWNFPA) | NFP(EC5) | 03.2014-06.2021 |
| PEUGEOT | PARTNER Box Body/MPV (5_, G_) 1.6 | NFU(TU5JP4) | 09.2000-10.2002 |
| PEUGEOT | PARTNER MPV (5_, G_) 1.6 16V | NFU(TU5JP4) | 07.2001-03.2008 |
Reference Information
| 1611140180 | PEUGEOT |
| 20479682OE | REAL |
| 220.542.093.008 | WAI |
| 25-5306 | ELSTOCK |
| 256386 | KUHNER |
| 256386V | KUHNER |
| 3374 | CEVAM |
| 438294 | VALEO |
| 458721 | VALEO |
| 6015286.1 | SANDO |
| 88215051 | POWERMAX |
| 9807962880 | PEUGEOT |
| 9807963180 | PEUGEOT |
| CGB-55306 | AINDE |
| CST15286GS | CASCO |
| LRS04143 | LUCAS |
| LRS4143 | LUCAS |
| MAV172860 | SIOM |
| STR00365 | ELECTROLOG |
| TS12-77 | VALEO |
| UD18650S | AS-PL |
