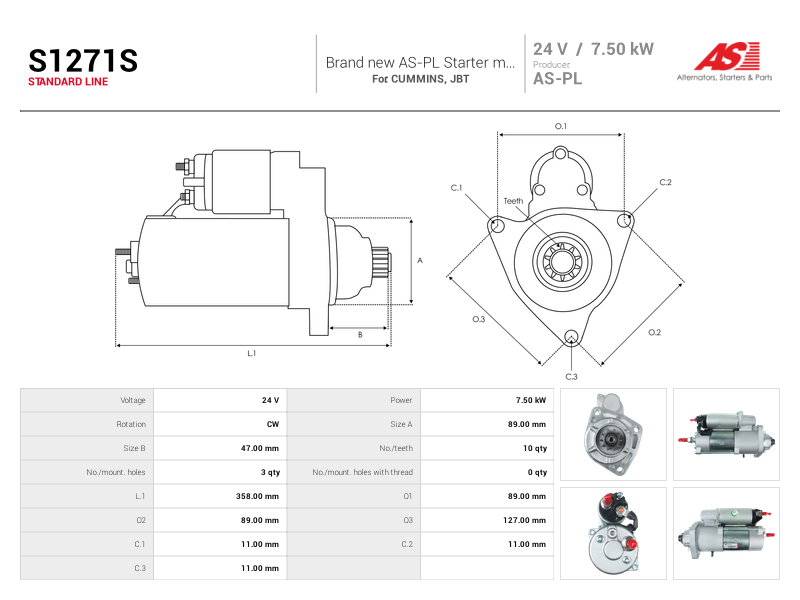

Specifications
| Kilowatt | 7.5 kW |
| Length (L.1) | 358 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 47 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUMMINS | Engine 4.5 | [QSB] | 01.2010-12.2017 |
| CUMMINS | Engine 6.7 | [ISB] | |
| JBT | 15i 4.5 | [QSB] | 01.2010-12.2015 |
| JBT | 30i 4.5 | [QSB] | 01.2010-12.2016 |
Reference Information
REM8200078 UD18577S 8200835 CST60622GS 8201138 STD7912 5267912 5287961 6060622.1 5363431 8200779 STRJ372 91-01-4811 6N3160 REM8200878 140-35505NOE 8201133 20409226OE 641.532.103.392 5363436 8200373Add Your Number
