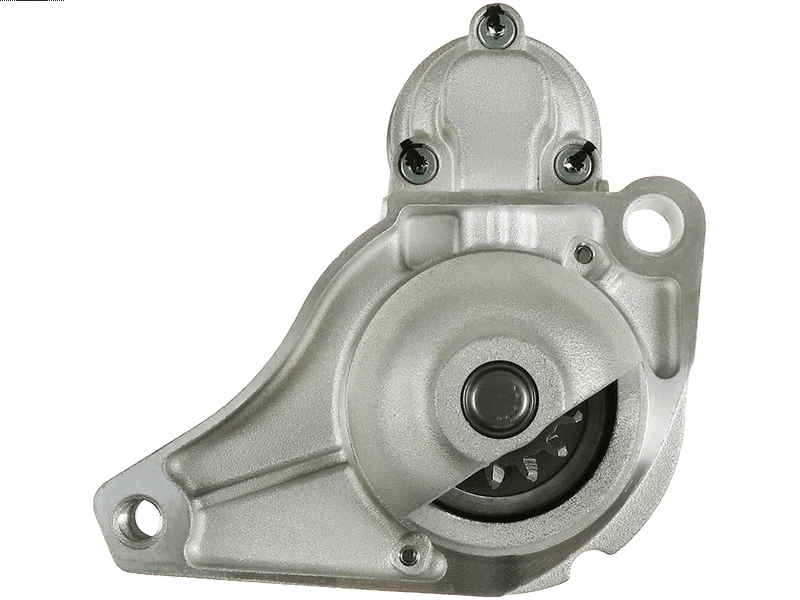

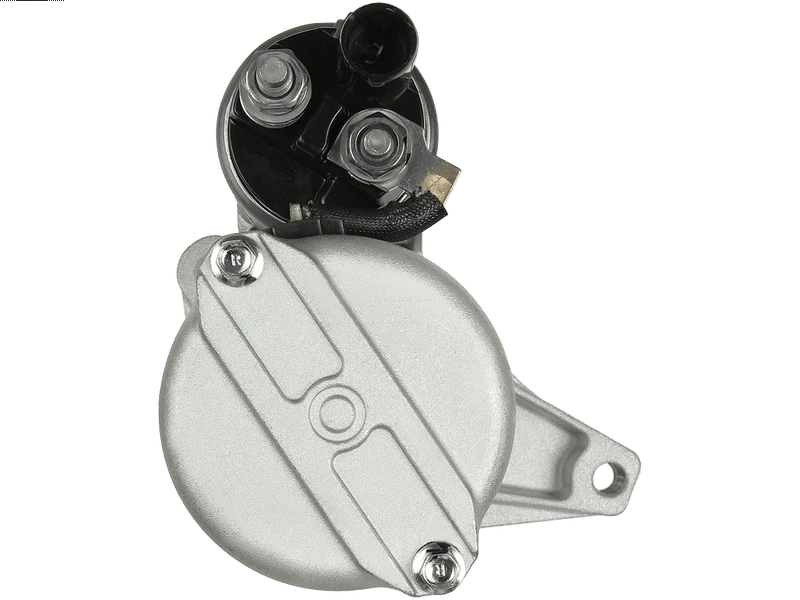

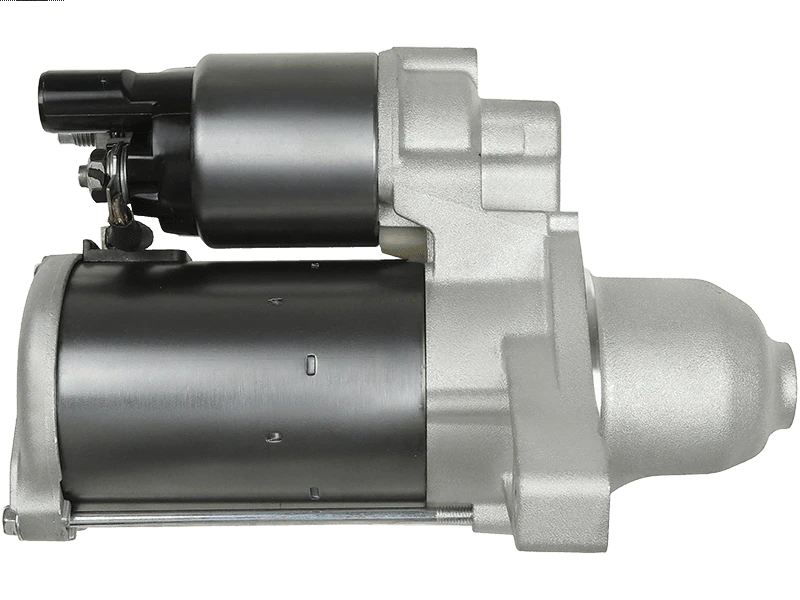

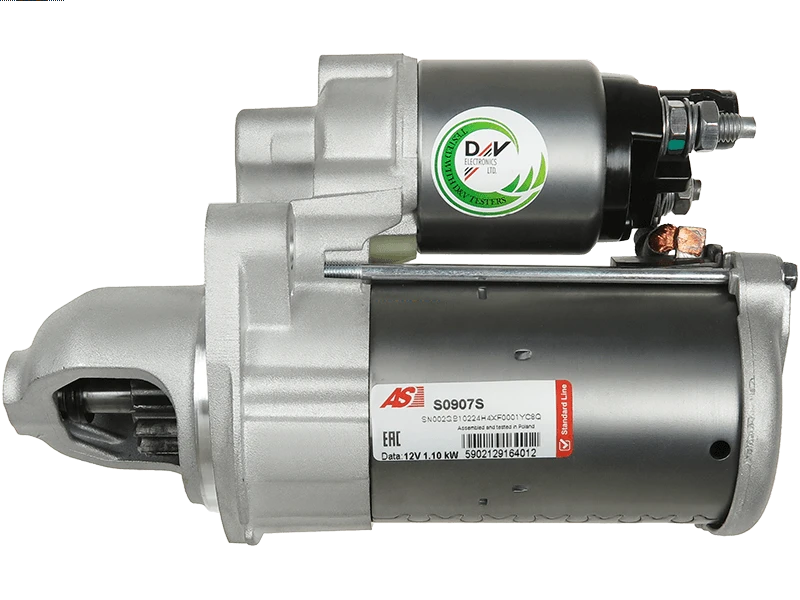

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 347.88 including GST
NZ$ 302.50 excluding GST
or four payments of $86.97
with
Learn More
each
S0907S
No stock in NZ currently
No stock in NZ currently
Information
0001170417Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 206 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500X 1.0 | [55282151] | 06.2018- |
| FIAT | 500X 1.0 | [55282151] | 09.2018- |
| FIAT | 500X 1.3 | [55282328] | 09.2018- |
| FIAT | Tipo 1.0 | [55282151] | 11.2020- |
| JEEP | Renegade 1.0 T-GDi | [55282151] | 08.2018- |
| JEEP | Renegade 1.3 T-GDi | [55282328] | 08.2018- |
| JEEP | Renegade 1.3 T-GDi 4x4 | [55282328] | 08.2018- |
Reference Information
| 0001170416 | BOSCH |
| 0001170417 | BOSCH |
| 0001170430 | BOSCH |
| 0001170435 | BOSCH |
| 10010048OV | ITAB AUTOMOTIVE |
| 109277 | FARCOM |
| 11090458 | EUROTEC |
| 12548 | EAI |
| 20401840OE | REAL |
| 221052 | ERA |
| 221055 | ERA |
| 25-5517 | ELSTOCK |
| 25-5517CT | AINDE |
| 256556 | KUHNER |
| 256556S | KUHNER |
| 30-1209 | AIRSTAL |
| 318244132 | DRI |
| 3442 | CEVAM |
| 50057239 | FIAT |
| 50057673 | FIAT |
| 500.593.132.010 | PSH |
| 500.593.132.281 | PSH |
| 500.593.132.440 | PSH |
| 500.593.132.441 | PSH |
| 5010947 | MEAT & DORIA |
| 5010947G | MEAT & DORIA |
| 51975679 | FIAT |
| 548ST21 | STARTCAR |
| 6010048.1 | SANDO |
| 8080751 | FRIESEN |
| 91-15-7389 | WILSON |
| ANM100368 | ANDEL |
| CST10048GS | CASCO |
| DIP3620N | DIPASPORT |
| DRS1411 | DELCO |
| FI9089 | SNRA |
| H5010947 | HOFFER |
| H5010947G | HOFFER |
| LRS04355 | LUCAS |
| LRS4355 | LUCAS |
| MAV120480 | SIOM |
| S0907S | AS-PL |
| S100530 | BTS TURBO |
| S101320 | BTS TURBO |
| S104884 | BTS TURBO |
| S12BH0916 | SIDAT |
| S132.688 | PSH |
| S144.240 | PSH |
| ST02974 | TMI |
| STB2505 | KRAUF |
| STR10089 | ELECTROLOG |
| STX210380 | STARDAX |
| UD100731S | AS-PL |
| WST00814 | WALKER |
