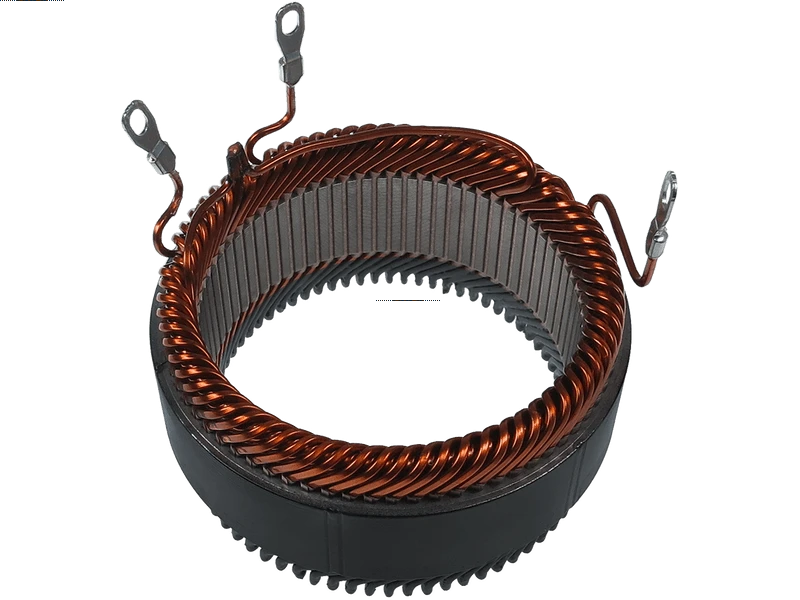

Specifications
| Amp | 80 A |
| Height (H.1) | 54.5 mm |
| Inside Diameter (I.D.1) | 87 mm |
| Lam. Stack Height (H.3) | 27 mm |
| No./Leads | 3 qty |
| Outside Diameter (O.D.1) | 110.8 mm |
| Outside Diameter of Windings (O.D.3) | 105 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
UD46795AS 27360-31550 27360-0J070 27360-BZ010 330957 27360-0Y030 AFN9021 27360-0M070 27360-0C020 27360-0H111 050.000.233.206 27360-0C021 27360-0M040 27360-0H110Video/Publications
1042109030 1042109110 A6200S 270600M040 270600C020 27060BZ130 1042108060 1042109150 1042108210 1042109020 1042109021 1042108411 2706050300 2706047010 1042113075 1042109060 1042109181 1042108090 1042108000 1042109210 2706062240 1042108200 1042108321 1042112420 270600Q060 1042108040 270600J070 270600Y300 2706075310 1042109290 1042108280 1042108160 1042109090 2706047200 2706021130 2706040011 1042108110 1042109200 1042112210 1022115121 1042108151 1042109240 1042108230 1042109000 A6201S 270600H220 A6439S 270600D260 1042109081 1042109040 2706040041 1042109080Add Your Number
