AS5086S - Brand new AS-PL Alternator stator

Name: Brand new AS-PL Alternator stator
Brand: AS GROUP NZ
SKU: AS5086S
Price: 130.34 NZD
Availability: InStock

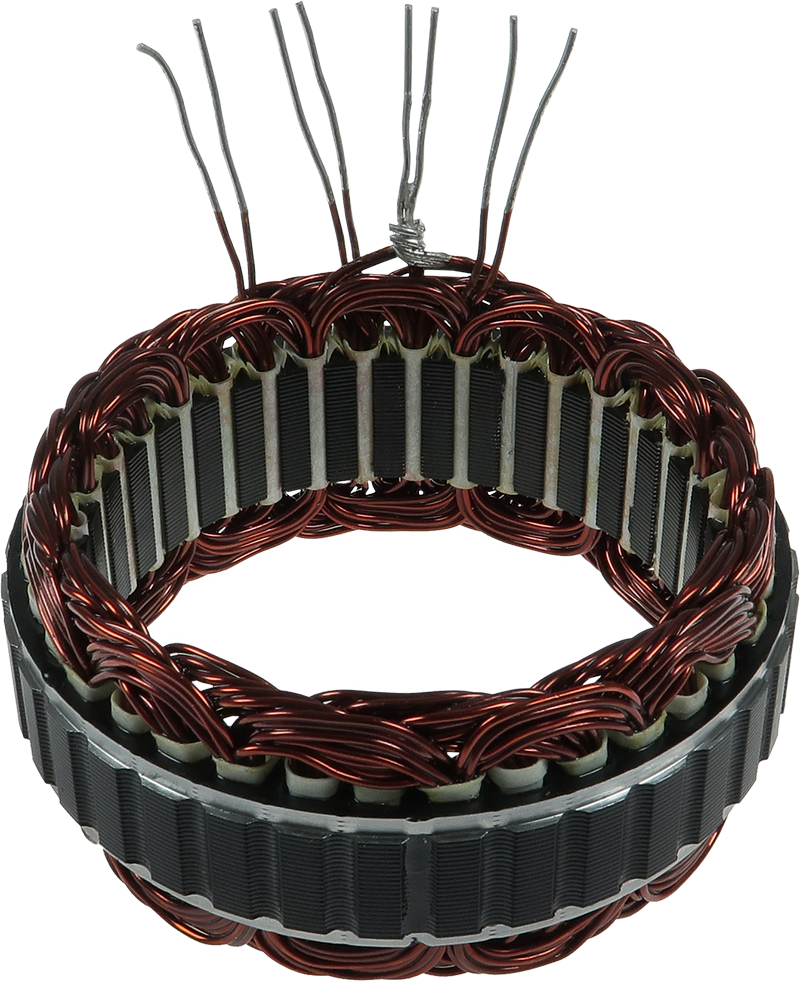

Brand new AS-PL Alternator stator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

MITSUBISHI

Price:

NZ$ 130.34 including GST

NZ$ 113.34 excluding GST

UOM:

each

Product Code:

AS5086S

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Specifications
Reference Information
Video/Publications
Add Your Number

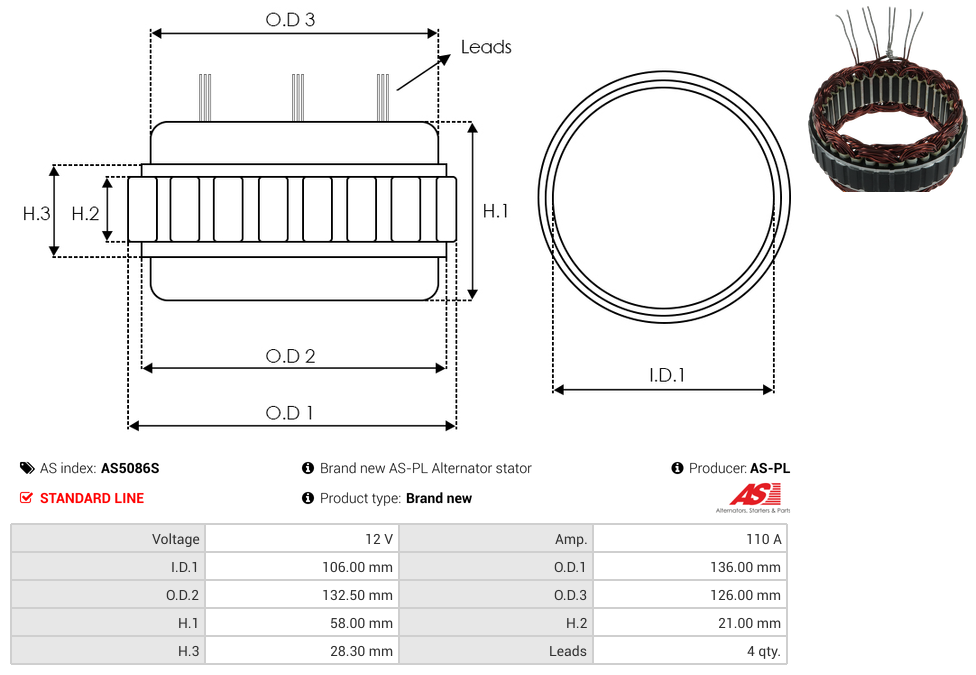

Amp	110 A
Height (H.1)	58 mm
Height (H.2)	21 mm
Inside Diameter (I.D.1)	106 mm
Lam. Stack Height (H.3)	28.3 mm
No./Leads	4 qty
Outside Diameter (O.D.1)	136 mm
Outside Diameter (O.D.2)	132.5 mm
Outside Diameter of Windings (O.D.3)	126 mm
Unit Type	MITSUBISHI
Voltage	12 V

A383X62070 MD632040 UD48258AS AFM2500 23712-AA160 23712-AA170

A3TG0591 A003TG2991 A003TG2192ZC A3TG6691A A003TG0491 A003TG6691A A003TA4791 A003TG3091 A003TG6191ZC A003TG3491 A003TG1192 A003TG1191 A003TB1891 A3TG2192ZC A003TG5891 A5242 A003TG6191 A003TG4291 A5161 A3TG6191ZC A003TG2192 A3TG2291 A3TG3181 A5425S A3TG6691 A003TB2891 A3TG0491 A3TG2291A A003TG0591 A3TB2891 A3TG2991 A003TG2991A A5275 A5155 A3TG2991A A3TA4791 A003TG2291A A5192 A3TG2192AC A3TG3091 A3TG1191 A3TG1192 A3TG3491 A3TG5891 A3TB1891 A5266 A003TG3181 A003TG6691 A3TG4291 A003TG2291 A3TG6191 A3TG2192 A003TG2192AC
