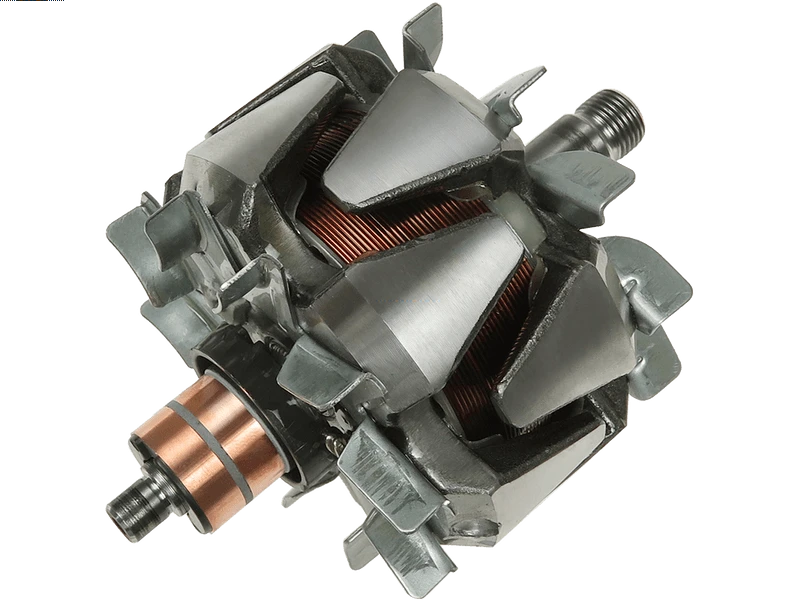

Specifications
| Amp | 150 A |
| Fitted with Bearing | No |
| Length (L.1) | 149 mm |
| Length (L.2) | 35 mm |
| Outside Diameter (O.D.1) | 107.5 mm |
| Outside Diameter (O.D.2) | 17 mm |
| Poles | 12 qty |
| Slip Ring to Suit | ASL9039 |
| Thread Direction | Right |
| Thread size & pitch (d.) | M16x1.5 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Reference Information
UD51409AR AVH0706Video/Publications
LR1130701 LR1125705B LR1150706B A2041 LR1150702 LR1150702B A2058 LR1150706Add Your Number
