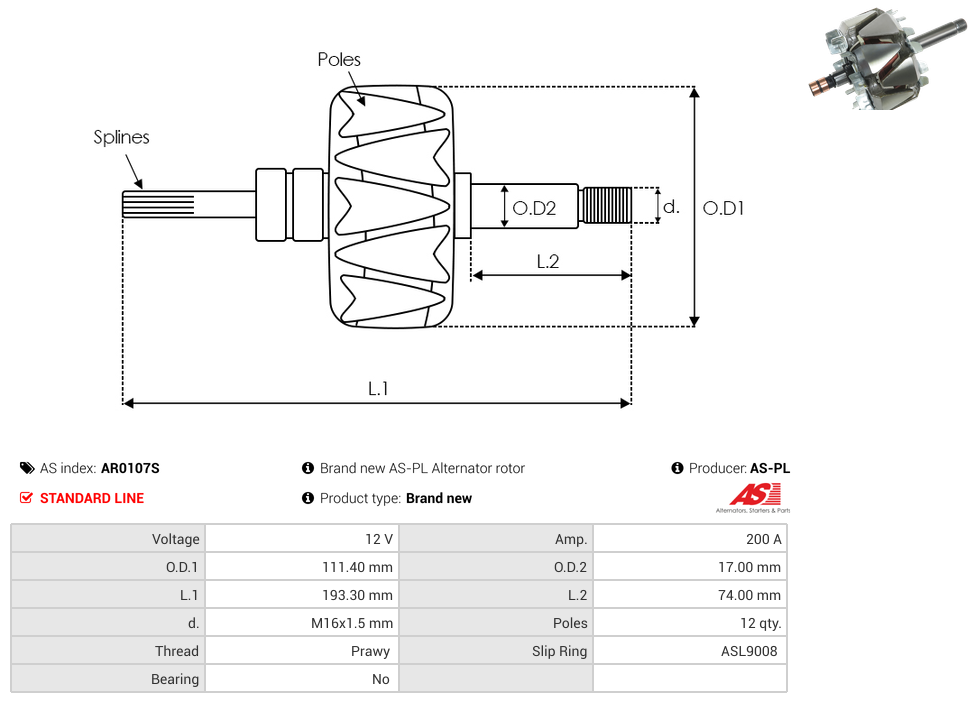

Specifications
Amp | 200 A |
Fitted with Bearing | No |
Length (L.1) | 193.3 mm |
Length (L.2) | 74 mm |
Outside Diameter (O.D.1) | 111.4 mm |
Outside Diameter (O.D.2) | 17 mm |
Poles | 12 qty |
Slip Ring to Suit | ASL9008 |
Thread Direction | Right |
Thread size & pitch (d.) | M16x1.5 mm |
Unit Type | BOSCH |
Voltage | 12 V |
Reference Information
F00M131717 F00M131855 AVB4351 F00M131711 UD46930ARVideo/Publications
0124625068 A0437 0124625043 0124625044 A0672S 124625068 124625044 124625043Add Your Number
