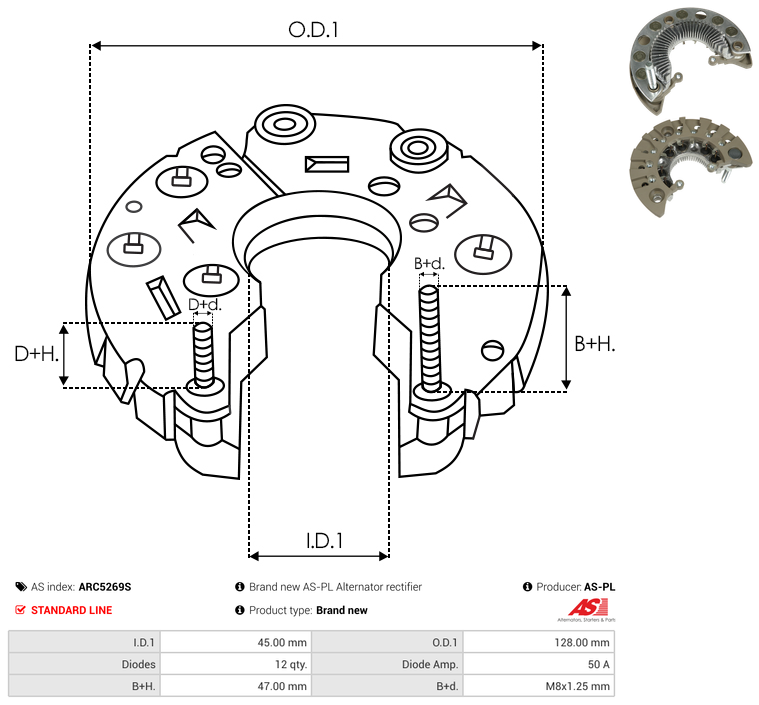

Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 47 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 12 qty |
| Inside Diameter (I.D.1) | 45 mm |
| Outside Diameter (O.D.1) | 128 mm |
| Reg/Rec Combo | No |
| Unit Type | MITSUBISHI |
| With Attached Bracket | No |
Reference Information
UD52337ARC IMR12802 AEM2802Video/Publications
A003TJ1881ZC A3TJ1881 A3TJ1881ZC A003TJ0381 A5316 A003TJ1881 A3TJ0381Add Your Number
