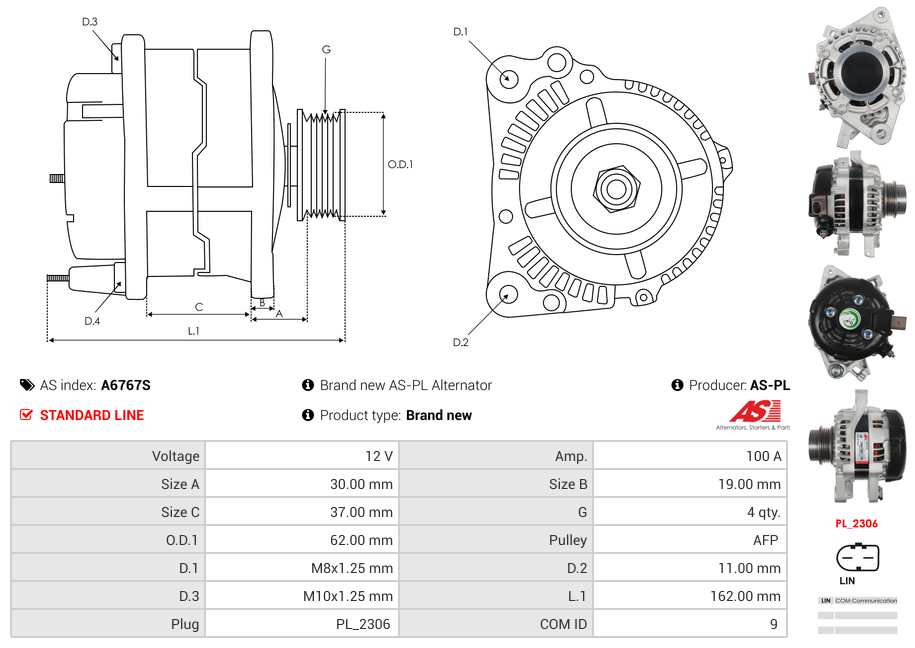

Specifications
Amp | 100 A |
Bottom Mounting Foot Width (B) | 19 mm |
Diameter (D.1) | M8x1.25 mm |
Diameter (D.2) | 11 mm |
Diameter (D.3) | M10x1.25 mm |
Grooves | 4 qty |
Length (L.1) | 162 mm |
Mount Inside Length or Pad Mount C-C (C) | 37 mm |
OEM Product | No |
Outside Diameter (O.D.1) | 62 mm |
Plug Code | PL_2306 |
Product Line | Standard Line |
Product Type | Brand new |
Pulley to Mount Distance (A) | 30 mm |
Pulley Type | CLUTCH |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
TOYOTA | Corolla 1.5 | [2NR-FKE] | 01.2015- |
TOYOTA | Sienta 1.5 | [2NR-FKE] | 01.2015- |
TOYOTA | Spade 1.5 | [2NR-FKE] | 01.2015- |
Reference Information
27060-47270 UD101269A 104211-3522Add Your Number
