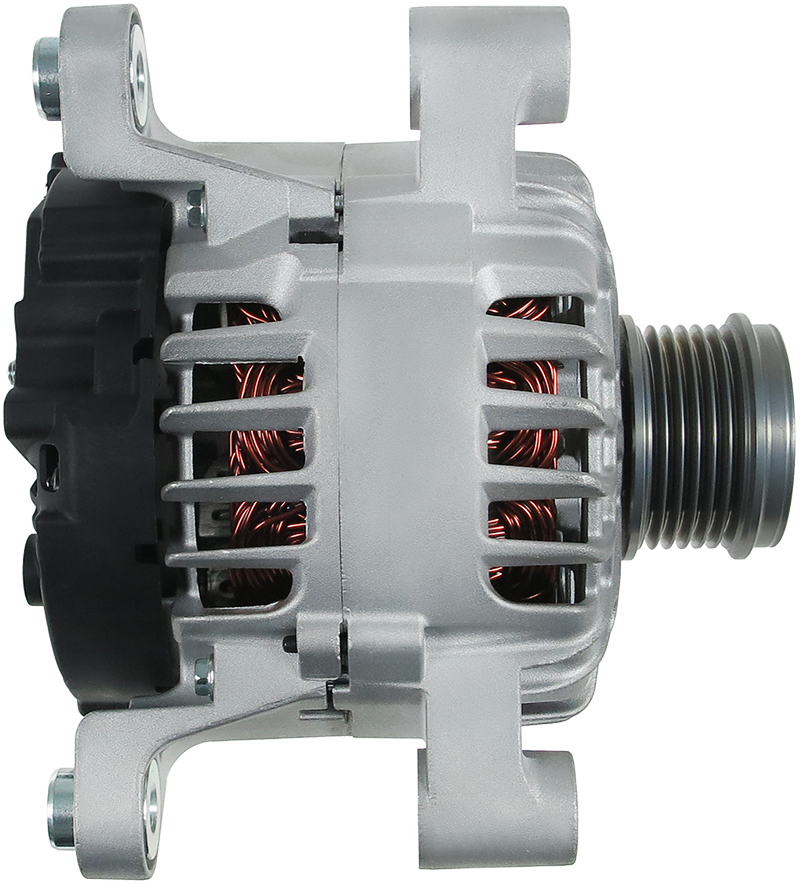

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 703.75 including GST
NZ$ 611.96 excluding GST
or four payments of $175.94
with
Learn More
each
A3670S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
TG12C074Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 33.50 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 194.20 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57.70 mm |
| OEM Product | No |
| Plug Code | PL_2201 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 53.70 mm |
| Pulley to Mount Distance (A) | 54 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra 1.4 | [A14XEL] | 01.2014-10.2015 |
| OPEL | Astra 1.4 | [A14XEL] | 12.2009-10.2015 |
| OPEL | Astra 1.4 | [A14XER] | 06.2012-10.2015 |
| OPEL | Astra 1.4 | [A14XER] | 12.2009-10.2015 |
| OPEL | Astra 1.4 | [B14XER] | 06.2012-10.2015 |
| OPEL | Astra 1.4 | [B14XER] | 12.2009-10.2015 |
| OPEL | Astra 1.4 GTC | [A14NEL] | 10.2011- |
| OPEL | Astra 1.4 GTC | [A14NET] | 10.2011- |
| OPEL | Astra 1.4 GTC | [A14XER] | 10.2011-10.2015 |
| OPEL | Astra 1.4 GTC | [B14NEL] | 10.2011- |
| OPEL | Astra 1.4 GTC | [B14NET] | 10.2011- |
| OPEL | Astra 1.4 LPG | [A14NET] | 01.2012-10.2015 |
| OPEL | Astra 1.4 LPG | [A14NET] | 07.2014- |
| OPEL | Astra 1.4 LPG Sports Tourer | [A14NET] | 12.2011-10.2015 |
| OPEL | Astra 1.4 Sports Tourer | [A14XEL] | 10.2010-10.2015 |
| OPEL | Astra 1.4 Sports Tourer | [A14XER] | 10.2010-10.2015 |
| OPEL | Astra 1.4 Sports Tourer | [B14XER] | 10.2010-10.2015 |
| OPEL | Astra 1.4 Turbo | [A14NEL] | 06.2012-10.2015 |
| OPEL | Astra 1.4 Turbo | [A14NEL] | 10.2010-10.2015 |
| OPEL | Astra 1.4 Turbo | [A14NET] | 06.2012- |
| OPEL | Astra 1.4 Turbo | [A14NET] | 12.2009-10.2015 |
| OPEL | Astra 1.4 Turbo | [B14NEL] | 06.2012-10.2015 |
| OPEL | Astra 1.4 Turbo | [B14NEL] | 10.2010-10.2015 |
| OPEL | Astra 1.4 Turbo | [B14NET] | 06.2012- |
| OPEL | Astra 1.4 Turbo | [B14NET] | 12.2009-10.2015 |
| OPEL | Astra 1.4 Turbo Sports Tourer | [A14NEL] | 10.2010-10.2015 |
| OPEL | Astra 1.4 Turbo Sports Tourer | [A14NET] | 10.2010-10.2015 |
| OPEL | Astra 1.4 Turbo Sports Tourer | [B14NEL] | 10.2010-10.2015 |
| OPEL | Astra 1.4 Turbo Sports Tourer | [B14NET] | 10.2010-10.2015 |
Reference Information
| 1202119 | OPEL |
| 13500314 | OPEL |
| 135.926.140.500 | PSH |
| 2015413.1 | SANDO |
| 20179314OE | REAL |
| 2605322A | VALEO |
| 28-7825 | ELSTOCK |
| 40292 | CEVAM |
| 554852RIV | KUHNER |
| ALT174130 | SIOM |
| ALTE475 | 3EFFE |
| CAL15413GS | CASCO |
| LRA04216 | LUCAS |
| LRA4216 | LUCAS |
| PRAE475 | 3EFFE |
| STX110348 | STARDAX |
| STX110348R | STARDAX |
| TG12C074 | VALEO |
| UD100874A | AS-PL |
Video/Publications
A3670SRelated Items
