220 AMP VERSION
or four payments of $219.34
with
Learn More
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
FGN20S052Associated Numbers
|
116636 |
HC-Cargo |
|---|---|
|
14201481 |
AES |
|
2011355 |
Ford |
|
21060N |
WAI |
|
21060OS |
WAI |
|
2165474 |
Ford |
|
2454938 |
Ford |
|
2461540 |
Ford |
|
2488647 |
Ford |
|
2699090 |
Ford |
|
439994 |
Valeo |
|
440782 |
Valeo |
|
595569220 |
PSH |
|
717620 |
Valeo |
|
AL197 |
FAI |
|
ALT14678 |
Wood Auto |
|
DRA1972 |
Delco Remy |
|
FG20S029 |
Valeo |
|
FG20S041 |
Valeo |
|
FG20S052 |
Valeo |
|
FGN20S029 |
Valeo |
|
FGN20S041 |
Valeo |
|
FGN20S052 |
Valeo |
|
GK2T10300BA |
Ford |
|
GK2T10300BB |
Ford |
|
GK2T10300BC |
Ford |
|
GK2T10300BD |
Ford |
|
GK2TBD |
Ford |
|
KT2T10300EA |
Ford |
|
LRA04119 |
Lucas |
|
LRA4119 |
Lucas |
|
RMGK2T10300CC |
Ford |
|
RNLFG20S041 |
RNL |
|
VAL439994 |
Wood Auto |
|
WOOALT14678 |
Wood Auto |
|
WURT5B801123 |
Würtemberg |
GK2T-10300-BA FORD GK2T-10300-BB FORD GK2T-10300-BC FORD GK2T-10300-BD FORD 2011356 FORD 2454938 FORD 2461540

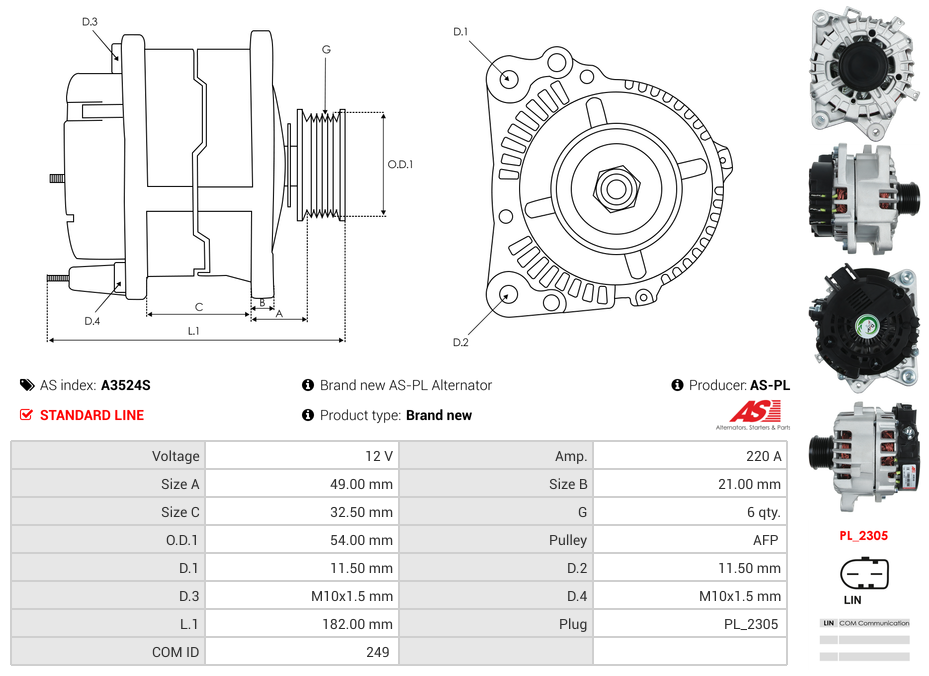

Specifications
| Amp | 220 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 11.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 182 mm |
| Mount Inside Length or Pad Mount C-C (C) | 32.50 mm |
| OEM Product | No |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 49 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Focus 2.0 EcoBlue | [YLDA] | 01.2018- |
| FORD | Focus Turnier 2.0 EcoBlue | [YLDA] | 09.2018- |
| FORD | Tourneo Custom 2.0 EcoBlue | [BJFA] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [BJFB] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [BKFA] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [BKFB] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [BLFA] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [BLFB] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YLF6] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YLFA] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YLFB] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YLFS] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YMF6] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YMFA] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YMFB] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YMFS] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YNF6] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YNFA] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YNFB] | 12.2015- |
| FORD | Tourneo Custom 2.0 EcoBlue | [YNFS] | 12.2015- |
| FORD | Transit 2.0 EcoBlue | [BJFA] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [BJFB] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [BKFA] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [BKFB] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [BLFA] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [BLFB] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YLF6] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YLFA] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YLFB] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YLFS] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YMF6] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YMFA] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YMFB] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YMFS] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YNF6] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YNFA] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YNFB] | 03.2016- |
| FORD | Transit 2.0 EcoBlue | [YNFS] | 03.2016- |
| FORD | Transit 2.0 EcoBlue 4x4 | [BKRA] | 01.2017- |
| FORD | Transit 2.0 EcoBlue 4x4 | [BLRA] | 01.2017- |
| FORD | Transit 2.0 EcoBlue 4x4 | [YMR6] | 01.2017- |
| FORD | Transit 2.0 EcoBlue 4x4 | [YMRA] | 01.2017- |
| FORD | Transit 2.0 EcoBlue 4x4 | [YNR6] | 01.2017- |
| FORD | Transit 2.0 EcoBlue 4x4 | [YNRA] | 01.2017- |
| FORD | Transit 2.0 EcoBlue RWD | [BJRA] | 03.2016- |
| FORD | Transit 2.0 EcoBlue RWD | [YLR6] | 03.2016- |
| FORD | Transit 2.0 EcoBlue RWD | [YLRA] | 03.2016- |
| FORD | Transit Custom 2.0 EcoBlue | [BJFA] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [BJFB] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [BKFA] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [BKFB] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [BLFA] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [BLFB] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YLF6] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YLFA] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YLFB] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YLFS] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YMF6] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YMFA] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YMFB] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YMFS] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YNF6] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YNFA] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YNFB] | 12.2015- |
| FORD | Transit Custom 2.0 EcoBlue | [YNFS] | 12.2015- |
Reference Information
| 012125 | DA SILVA |
| 063730849010 | MAGNETI MARELLI |
| 10445031 | ALANKO |
| 115028 | FARCOM |
| 116 636 | CARGO |
| 12090893 | EUROTEC |
| 20015040AV | ITAB AUTOMOTIVE |
| 20015040OV | ITAB AUTOMOTIVE |
| 200364 | VALEO |
| 2011355 | FORD |
| 20-1354 | AIRSTAL |
| 2015040.0 | SANDO |
| 2015040.1 | SANDO |
| 2015A97.1 | SANDO |
| 20179040BN | REAL |
| 20179040OE | REAL |
| 2017979AOE | REAL |
| 209584 | ERA |
| 209584A | ERA |
| 21060N | WAI / TRANSPO |
| 21060OS | WAI / TRANSPO |
| 2165474 | FORD |
| 2193362202 | DRI |
| 2454938 | FORD |
| 2454939 | FORD |
| 2461540 | FORD |
| 2488647 | FORD |
| 2726566A | VALEO |
| 28-7728 | ELSTOCK |
| 28-7728CT | AINDE |
| 40319 | CEVAM |
| 439994 | VALEO |
| 440782 | VALEO |
| 442665 | LOGISTIK |
| 4825008 | NK |
| 4G1408 | RIDEX |
| 5481FB0055600 | FRANKBERG |
| 55151085 | MEAT & DORIA |
| 555027RI | KUHNER |
| 555027RIV | KUHNER |
| 57679 | EAI |
| 595.569.220.000 | PSH |
| 595.569.220.340 | PSH |
| 595.569.220.346 | PSH |
| 595.569.220.347 | PSH |
| 595.569.220.440 | PSH |
| 595.569.220.500 | PSH |
| 6501407580 | EUROREPAR |
| 679ST75 | STARTCAR |
| 8310 16021 | TRISCAN |
| 8550504794 | MOTRIO |
| 8620592 | KAMOKA |
| 89216658 | POWERMAX |
| 8EL015637-551 | HELLA |
| 9091016 | FRIESEN |
| A12VA0304A2 | SIDAT |
| A134.397 | PSH |
| A146.457 | PSH |
| A2032V | PRESTOLITE |
| A3524S | AS-PL |
| AC-CBA6219 | ACAUTO |
| AL03659 | TMI |
| ALT01023 | ELECTROLOG |
| ALT144KUHN | DIPASPORT |
| ALT14678 | WOODAUTO |
| ALT170400 | SIOM |
| ALT170400A | SIOM |
| ALT17A970 | SIOM |
| ALT2410CP | ROLLCO |
| ALV3945 | KRAUF |
| ANM98881 | ANDEL |
| AVA042 | AUTOTEAM |
| BREF032116636 | CARWOOD GROUP |
| CAL15040AS | CASCO |
| CAL15040GS | CASCO |
| CAL15A97GS | CASCO |
| CGB-13241 | AINDE |
| DA3082 | DELCO |
| DRA1972 | DELCO |
| F032116636 | CARGO |
| FG20S029 | VALEO |
| FG20S041 | VALEO |
| FG20S052 | VALEO |
| FG20S064 | VALEO |
| FGN20S029 | VALEO |
| FGN20S041 | VALEO |
| FGN20S052 | VALEO |
| FGN20S064 | VALEO |
| FO8133 | SNRA |
| G104481 | BTS TURBO |
| G104482 | BTS TURBO |
| GK2T-10300-BA | FORD |
| GK2T-10300-BB | FORD |
| GK2T-10300-BC | FORD |
| GK2T-10300-BD | FORD |
| GK2T-10300-EA | FORD |
| H55151085 | HOFFER |
| IR5587 | PROTECH |
| L52160 | ATL AUTOTECHNIK |
| L52161 | ATL AUTOTECHNIK |
| LRA04119 | LUCAS |
| LRA4119 | LUCAS |
| MQA849 | MAGNETI MARELLI |
| RMGK2T-10300-BC | FORD |
| RMGK2T-10300-CC | FORD |
| STX110087R | STARDAX |
| T002006053 | SEG AUTOMOTIVE |
| TTAL001428 | TURBO-TEC |
| UD90710A | AS-PL |
| UD91052A | AS-PL |
| VAL439994 | WOODAUTO |
| WAL00007 | WALKER |
| WG2471766 | WILMINK GROUP |
| WOOALT14678 | WOODAUTO |
Video/Publications
