Brand new AS-PL Starter motor clutch
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 72.93 including GST
NZ$ 63.42 excluding GST
or four payments of $18.23
with
Learn More
UOM:
each
Product Code:
SD6050S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
28100-17030 228000-1600 2280001601 028300-1970 028300-1971 028300-5380 028300-5381 028300-5390 028300-5391 143-0539 Caterpillar Starter 12V 10T CW OSGR 2.7kW 143-0541 24V DD 4.5kW 144-9955 3E0079 2.5kW 3E7905 4428221 Chrysler 4741012 4746639 3925045 Cummins 13T 3kW 3964427 3964428 4090084 19011812 Delco New 028000-5000 Denso 9T R 028000-5001 028000-5002 028000-5003 028000-5300 11T 028000-5301 028000-5490 028000-5530 028000-5540 028000-5550 028000-5551 028000-5552 028000-5553 028000-5560 028000-5570 028000-5580 028000-5581 028000-5620 028000-5660 15T 028000-5661 Enlarge 028000-5662 028000-5690 028000-5691 028000-5832 028000-5833 028000-5840 028000-5850 028000-5860 028000-5861 028000-5862 028000-5863 028000-5864 028000-5870 028000-5890 028000-6060 028000-6061 028000-6062 028000-6063 028000-6200 028000-6202 028000-6210 028000-6290 028000-6340 028000-6341 028000-6351 028000-6410 028000-6460 028000-6461 028000-6462 028000-6463 028000-6464 028000-6560 028000-6561 028000-6590 028000-6640 028000-6780 028000-6781 028000-6860 028000-6870 028000-6871 028000-6872 028000-6880 028000-6881 028000-6882 028000-6891 028000-6892 028000-6893 028000-6900 028000-6910 028000-6950 028000-7223 028000-7240 028000-7241 028000-7242 028000-7451 028000-7540 028000-7730 028000-7731 028000-7732 028000-7733 028000-7800 028000-7801 028000-7802 028000-7803 028000-7810 028000-7811 028000-8070 028000-8071 028000-8072 028000-8073 028000-8401 028000-8402 028000-8403 028000-8405 028000-8490 028000-8500 028000-8611 028000-8840 028000-8841 028000-9330 028000-9331 028000-9770 RO 028000-9771 028000-9773 028000-9774 028099-2390 Drive Kit Roller & Reduction Gear 1.72" / 43.8mm OD 10 Spiral Spl. 028099-5490 028300-1730 Assembly 028300-1810 028300-1811 028300-1812 1.37" 34.9mm 028300-1920 028300-2011 028300-2012 1.58" 40.1mm 028300-2040 028300-2090 028300-2260 028300-3690 028300-3691 1.59" 40.3mm 028300-3700 028300-3790 028300-3791 028300-4081 028300-4480 028300-4550 028300-4551 1.57" 40mm 028300-5450 028300-5451 028300-5550 028300-5670 16 028300-5671 028300-5920 028300-5921 028300-6550 028300-7660 028300-7661 028300-7801 028300-8011 1.56" 39.7mm 028300-8131 128000-0210 128000-0212 128000-0213 128000-0214 128000-0216 128000-0380 128000-0381 128000-0382 128000-0383 128000-0490 128000-0491 128000-0492 128000-0520 128000-0530 128000-0540 128000-0550 128000-0560 128000-0790 128000-0791 128000-0792 128000-0793 128000-0794 128000-0970 128000-0971 128000-0972 128000-0973 128000-0974 128000-1000 128000-1001 128000-1002 128000-1060 128000-1061 128000-1062 128000-1562 128000-1563 128000-1564 128000-1565 128000-1566 128000-1570 128000-1571 128000-1572 128000-1573 128000-1574 128000-1575 128000-1580 128000-1581 128000-1780 128000-1781 128000-1782 128000-1790 128000-2250 128000-2251 128000-2252 128000-2253 128000-2273 128000-2450 5.5kW 128000-2451 128000-2470 128000-2560 128000-2561 128000-2562 128000-2563 128000-2740 128000-2741 128000-2742 128000-2930 128000-2931 128000-3030 128000-3032 128000-3080 128000-3081 128000-3320 128000-3321 128000-3322 128000-3323 128000-3512 128000-3513 128000-3514 128000-4080 128000-4081 128000-4082 128000-4083 128000-4091 128000-4092 128000-4220 128000-4221 128000-4682 128000-4683 128000-4684 128000-4685 128000-4687 128000-4688 128000-4689 128000-4781 128000-4782 128000-4783 128000-4910 128000-4911 128000-4971 128000-4972 128000-5091 128000-5370 128000-5371 128000-5372 128000-5373 128000-5380 128000-5381 128000-5382 128000-5383 128000-5510 128000-5600 128000-5601 128000-5602 128000-6170 128000-6171 128000-6180 128000-6810 128000-6811 128000-6822 128000-6823 128000-6830 128000-6831 128000-6832 128000-6833 128000-6860 128000-6861 128000-7040 128000-7041 128000-7042 128000-7280 128000-7281 128000-7282 128000-7283 128000-7290 128000-7291 128000-7292 128000-7293 128000-7294 128000-7360 128000-7361 128000-7362 128000-7363 128000-7600 128000-7601 128000-7602 128000-7603 128000-7604 128000-7750 128000-7751 128000-7752 128000-7753 128000-7871 128000-7920 128000-7921 128000-7922 128000-7923 128000-7932 128000-7933 128000-8061 128000-8063 128000-8064 128000-8290 128000-8291 128000-8292 128000-8293 128000-8294 128000-8300 128000-8301 128000-8620 12T 128000-8621 128000-9580 128000-9581 128000-9582 128000-9610 128000-9970 128000-9971 128000-9972 128099-5160 128300-0080 228000-0020 228000-0270 228000-0271 228000-0281 228000-0282 228000-0291 228000-0292 228000-0350 228000-0351 228000-0570 228000-0571 228000-1190 228000-1350 228000-1420 228000-1590 228000-1591 228000-1601 228000-1610 228000-1611 228000-1612 228000-1661 228000-1671 228000-1830 228000-1831 228000-1832 228000-2030 228000-2031 228000-2032 228000-2200 228000-2201 228000-2290 228000-2291 228000-2292 228000-2470 228000-2660 228000-2670 228000-2800 228000-2801 228000-2803 228000-2804 228000-2806 228000-2807 228000-3080 228000-3090 228000-3100 228000-3180 228000-3181 228000-3310 228000-3311 228000-3320 228000-3321 228000-3710 228000-3711 228000-3810 228000-4990 228000-5010 228000-5011 228000-5231 228000-5280 4kW 228000-5311 4.8kW 228000-5460 228000-5640 228000-5641 228000-5652 228000-5733 228000-6230 228000-6261 228000-6290 228000-6291 228000-6350 228000-6381 228000-6391 228000-6470 228000-6471 228000-6980 228000-6981 228000-7371 228000-7410 7.5kW 228000-7411 228000-7491 228000-7500 228000-8520 228000-8570 7.8kW 228000-8571 228000-8781 228000-8850 228000-9151 228000-9760 228000-9761 428000-0071 428000-0170 428000-0310 428000-1190 428000-1600 428000-1610 428000-1660 428000-1850 428000-1860 428000-1880 428000-2160 428000-2370 428000-2511 428000-2580 428000-2832 428000-2840 428000-2860 428000-2880 428000-2910 428000-4860 428000-5330 428000-5440 428000-5920 5702800-566 12596914 General Motors 15750369 28100-1861B Hino 28100-1862A 28100-1862B 28100-1863A 28100-2541 3520840C91 International Harvester 1811001410 Isuzu 1811002301 1811002302 1811002310 1811002340 1811002390 1811002391 1811002392 1811002610 5811001081 5811001690 5811001691 8943991591 CH19285 John Deere RE61406 RE68470 600-813-4490 Komatsu 10666-01100 Kubota 14182-63011 14182-63012 15451-63013 15451-63014 15481-63013 15527-63011 15527-63012 19872-63013 ME029237 Mitsubishi ME951800 191-2212 Onan 28100-30800-71 Toyota 28100-31625-71 28100-32080 28100-46030 28100-46040 28100-47090 28100-54023 28100-54042 28100-54130 28100-54370 28100-54430 28100-56030 28100-56070 28100-56071 28100-56120 28100-56131 28100-56140 28100-56180 28100-56220 28100-56240 28100-56290 28100-56320 28100-56330 28100-56340 28100-64030 28100-64080 28100-67090 28100-77090 28100-78502 28100-96502 119773-77010 Yanmar 121420-77010Specifications

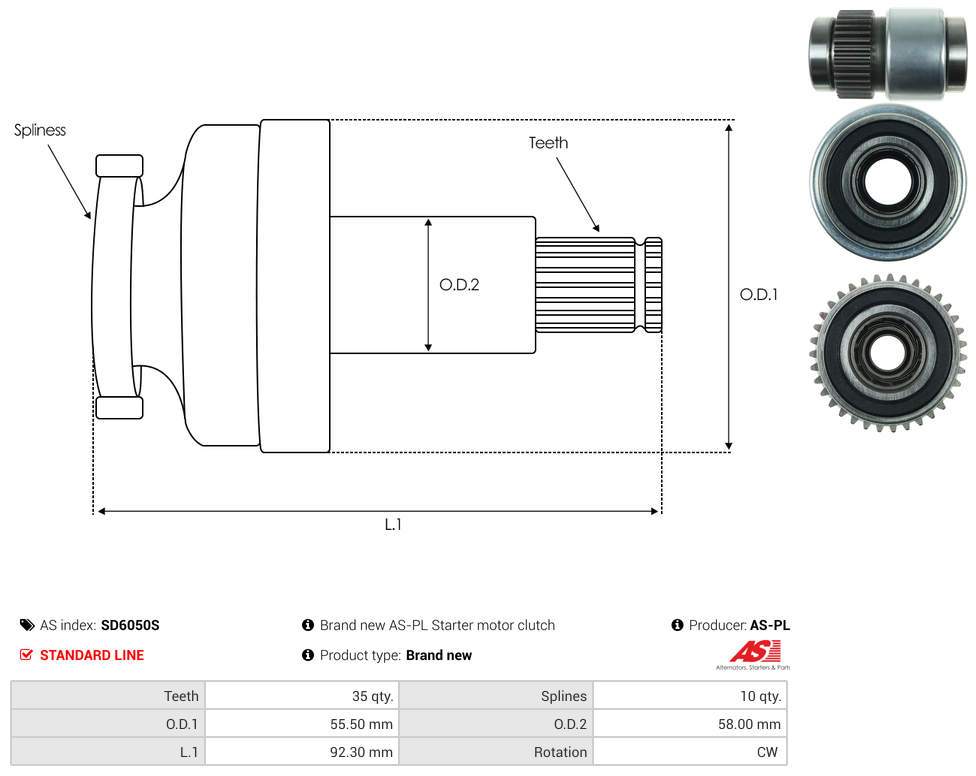

| Inside Diameter (I.D.1) | 16.5 mm |
| Inside Diameter (I.D.2) | 22.2 mm |
| Length (L.1) | 92.30 mm |
| No./Splines | 10 qty |
| No./Teeth | 35 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 55.50 mm |
| Outside Diameter (O.D.2) | 58 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Clutch |
| Unit Type | DENSO |
Reference Information
| 028300-1970 | DENSO |
| 028300-1971 | DENSO |
| 028300-4170 | DENSO |
| 028300-5380 | DENSO |
| 028300-5381 | DENSO |
| 028300-5390 | DENSO |
| 028300-5391 | DENSO |
| 028300-6750 | DENSO |
| 028300-6751 | DENSO |
| 060.000.271.050 | PSH |
| 060.000.272.050 | PSH |
| 1.01.1828.0 | ZEN |
| 128099-5060 | DENSO |
| 138681 | CARGO |
| 1728 | GHIBAUDI |
| 1828 | ZEN |
| 18482 | ZNP |
| 205-72-45 | VISNOVA |
| 233180 | CARGO |
| 4.5153.1 | IKA |
| 47211 | MEAT & DORIA |
| 532343C | CIVIC/DA PARTS |
| 54246-200 | DIXIE |
| 54-82400 | WAI / TRANSPO |
| 54-82409 | WAI / TRANSPO |
| 81014997 | POWERMAX |
| 87-122 | PAN PACIFIC |
| CH12485 | JOHN DEERE |
| DRV6020C | ELECTROLOG |
| DRV6126 | ELECTROLOG |
| DRX72011 | ASHDOWN INGRAM |
| F032138681 | CARGO |
| F032233180 | CARGO |
| SD-5170 | UNIPOINT |
| SDN6180 | KRAUF |
| SDN6681 | KRAUF |
| SDV32660 | WOODAUTO |
| SDV32666 | WOODAUTO |
| UD13812SD | AS-PL |
| ZN1828 | ZEN |
Video/Publications
0280004800 0280005300 0280005301 0280005510 0280005511 0280005530 0280005531 0280005532 0280005541 0280005542 0280005543 0280005550 0280005551 0280005552 0280005553 0280005560 0280005561 0280005570 0280005571 0280005620 0280005651 0280005652 0280005660 0280005661 0280005690 0280005691 0280005692 0280005693 0280005832 0280005833 0280005834 0280005835 0280005840 0280005841 0280005850 0280005860 0280005862 0280005863 0280005870 0280005871 0280005880 0280005890 0280005891 0280006010 0280006012 0280006013 0280006020 0280006021 0280006022 0280006060 0280006061 0280006062 0280006200 0280006201 0280006290 0280006291 0280006340 0280006341 0280006460 0280006461 0280006462 0280006463 0280006590 0280006591 0280006780 0280006870 0280006871 0280006872 0280006880 0280006881 0280006882 0280006891 0280006892 0280006893 0280006900 0280006901 0280006902 0280006910 0280006911 0280006912 0280006950 0280006951 0280007140 0280007241 0280007242 0280007400 0280007450 0280007451 0280007452 0280007540 0280007541 0280007542 0280007550 0280007731 0280007732 0280007800 0280007801 0280007802 0280007810 0280007811 0280008070 0280008071 0280008072 0280008360 0280008490 0280008491 0280008500 0280008501 0280008561 0280008562 0280008840 0280008841 0280008842 0280009331 0280009332 0280009333 1280000210 1280000380 1280000381 1280000382 1280000383 1280000520 1280000530 1280000531 1280000532 1280000972 1280000973 1280001000 1280001001 1280001010 1280001011 1280001060 1280001561 1280001570 1280001571 1280001572 1280001573 1280001574 1280001580 1280001581 1280001582 1280001583 1280001584 1280001585 1280001790 1280002270 1280002930 1280002931 1280002932 1280002933 1280003030 1280003080 1280003081 1280003082 1280003120 1280003512 1280003513 1280003514 1280004100 1280004101 1280004110 1280004111 1280004112 1280005040 1280005090 1280005091 1280005300 1280005380 1280005381 1280005382 1280005730 1280005731 1280006170 1280006171 1280006172 1280006173 1280006180 1280006181 1280006182 1280006183 1280006184 1280006810 1280006811 1280006812 1280006822 1280006823 1280006830 1280006831 1280006832 1280006833 1280006860 1280006861 1280006910 1280006911 1280007280 1280007281 1280007282 1280007283 1280007290 1280007291 1280007292 1280007293 1280007294 1280007360 1280007361 1280007362 1280007363 1280007920 1280007921 1280007922 1280007923 1280007932 1280007933 1280008290 1280008620 1280008621 1280009580 1280009581 1280009582 1280009970 1280009971 2280000270 2280000271 2280000281 2280000282 2280000291 2280000292 2280000350 2280000351 2280000570 2280000571 2280001590 2280001591 2280001600 2280001601 2280001610 2280001611 2280001661 2280001671 2280001790 2280001791 2280001830 2280002030 2280002031 2280002110 2280002111 2280002290 2280002660 2280003070 2280003080 2280003090 2280003100 2280003230 2280003710 2280003810 2280004680 2280005641 2280005830 2280005980 2280005990 2280006380 2280006470 2280006471 2280007500 2280007550 2280009020 4280001190 4280001850 4280001860 4280002370 S6005 S6023 S6025 S6026 S6064 S6067 S6068 S6070 S6071 S6106 S6119 S6120 S6134 S6139 S6224S S6282S S6285S S6335S S6404S S6405S S6412S S6478S S6735S S6752S S6794S SD6006 SD6029View your shopping basket or Browse other items in Starter Clutches.
