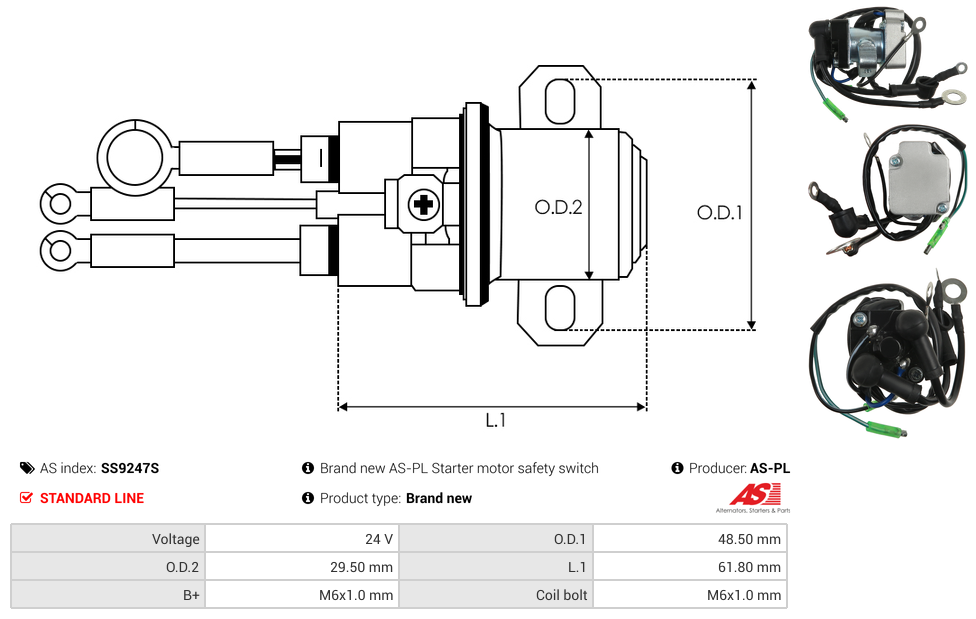

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M6x1.0 mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M6x1.0 mm |
Length (L.1) | 61.8 mm |
Outside Diameter (O.D.1) | 48.5 mm |
Outside Diameter (O.D.2) | 29.5 mm |
Unit Type | NIKKO |
Voltage | 24 V |
Reference Information
SND12959 SSK3686 0-25000-6162 0-25000-6220 UD21254SS 0-25000-6161 0-25000-6160 0-25000-7810 0-25000-7812 SOLX108 0-25000-7811 0-25000-6222 0-25000-6221 0-25000-6320Video/Publications
230001260 0230001260 230001310 230002201 0230001310 0230002201Add Your Number
