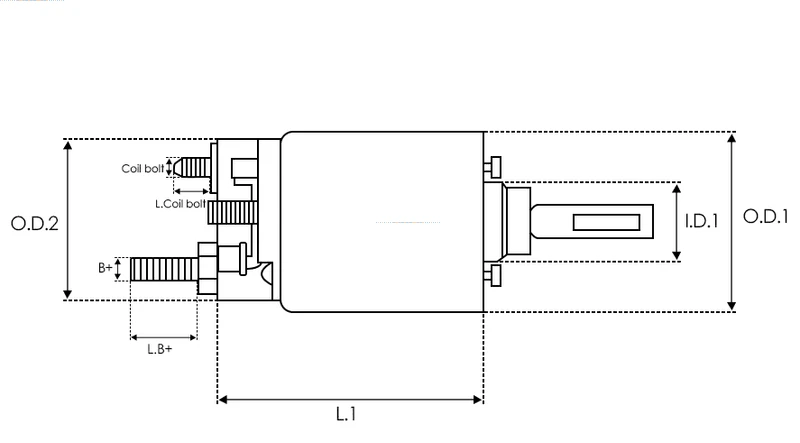

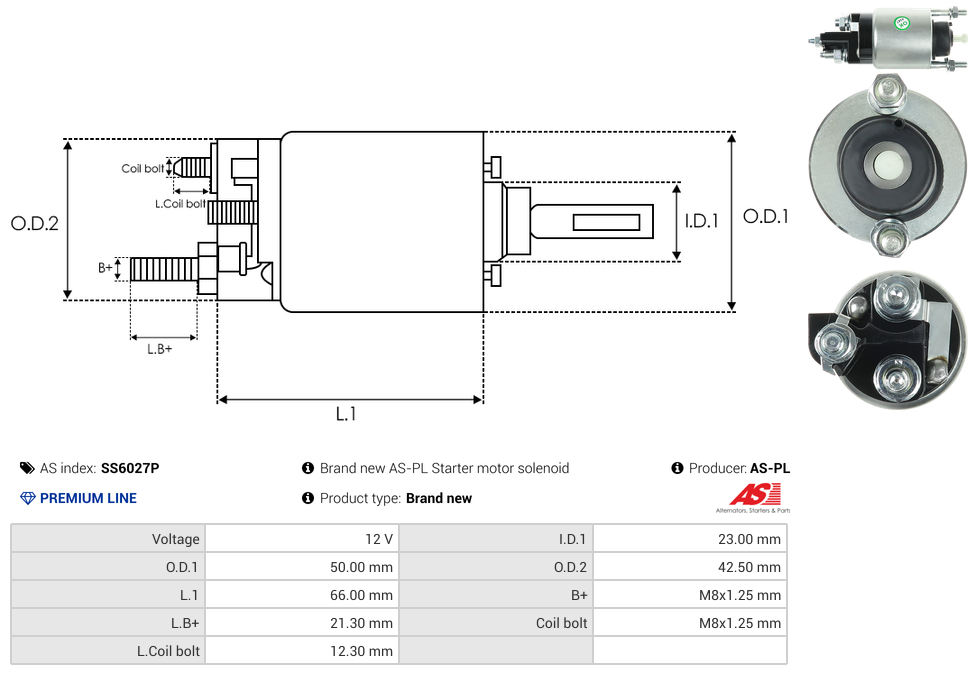

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 12.3 mm |
Inside Diameter (I.D.1) | 23 mm |
L.B+ | 21.3 mm |
Length (L.1) | 66 mm |
Outside Diameter (O.D.1) | 50 mm |
Outside Diameter (O.D.2) | 42.5 mm |
Unit Type | DENSO |
Voltage | 12 V |
Reference Information
A0021520310 CSO40100 UD12191SS SND1519 UD03366SS SSN5510 SSN5510BA UD16303SS 66-8240 21520310 SSO40100 SS6027 334034 ZM3708 UD01342SS SOL6080Video/Publications
A0021520310 UD12191SS SND1519 DSN967 SSN5510 UD16303SS S6055 6519060026 SSO40100 S6229S 0021520310 SS6027 334034 428000-5510 61514501 4280005580 CSO40100 A0061514501 UD03366SS SSN5510BA 66-8240 4280005511 4280005510 ZM3708 UD01342SS A6519060026Add Your Number
