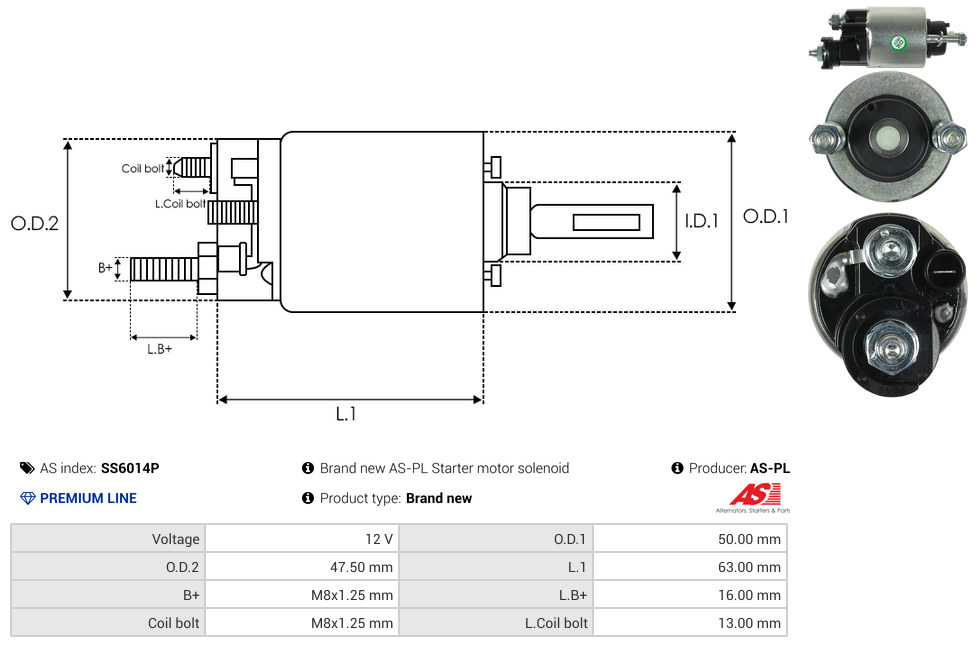

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 13 mm |
L.B+ | 16 mm |
Length (L.1) | 63 mm |
Outside Diameter (O.D.1) | 50 mm |
Outside Diameter (O.D.2) | 47.5 mm |
Unit Type | DENSO |
Voltage | 12 V |
Reference Information
66-8223 153400-4110 UD16347SS 153400-4111 31204-RAD-003 SS6014P AME0574 153400-7610 153400-4401 60-29-15163 227349 66-8222 SOL6047 237806 ZM4705 31204-PLR-A01 SSN8806 SSN7806 6646-0812 SND13033Video/Publications
UD16347SS 2280009580 AME0574 153400-7610 153400-4401 4280000010 227349 237806 ZM4705 31204-PLR-A01 2280009641 SSN8806 2280005780 4280000321 66-8223 153400-4110 153400-4111 31204-RAD-003 SS6014P 60-29-15163 4280000320 4280005950 2280006460 2280006680 SSN7806 6646-0812 SND13033Add Your Number
