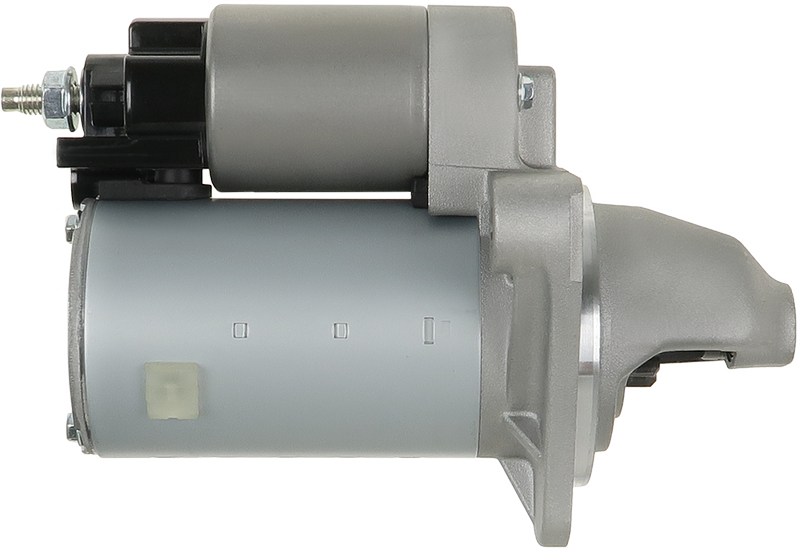

Specifications
Kilowatt | 1.3 kW |
Length (L.1) | 193 mm |
Mount Hole Center - Center (O.1) | 94 mm |
Mount Hole Diameter (C.1) | 9 mm |
Mount Hole Diameter (C.2) | 9 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |
Pinion at Rest (B) | 24.5 mm |
Rotation | CW |
Spigot Diameter (A) | 75 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CADILLAC | ATS 2.0 | [LTG] | 02.2013- |
CADILLAC | ATS 2.0 AWD | [LTG] | 02.2013- |
CADILLAC | CTS 2.0 Turbo | [LTG] | 09.2013- |
CADILLAC | CTS 2.0 Turbo AWD | [LTG] | 01.2014- |
OPEL | Insignia 2.0 Turbo | [A20NHT] | 04.2014-03.2017 |
OPEL | Insignia 2.0 Turbo | [A20NHT] | 04.2014-11.2014 |
OPEL | Insignia 2.0 Turbo | [B20NHT] | 04.2014-03.2017 |
OPEL | Insignia 2.0 Turbo | [B20NHT] | 04.2014-11.2014 |
OPEL | Insignia 2.0 Turbo 4x4 | [A20NFT] | 07.2011-03.2017 |
OPEL | Insignia 2.0 Turbo 4x4 | [A20NFT] | 09.2011-06.2013 |
OPEL | Insignia 2.0 Turbo 4x4 | [A20NFT] | 09.2013-03.2017 |
OPEL | Insignia 2.0 Turbo 4x4 | [A20NHT] | 07.2011-03.2017 |
OPEL | Insignia 2.0 Turbo 4x4 | [A20NHT] | 09.2011-06.2013 |
OPEL | Insignia 2.0 Turbo 4x4 | [A20NHT] | 09.2013-03.2017 |
OPEL | Insignia 2.0 Turbo 4x4 | [B20NHT] | 07.2011-03.2017 |
OPEL | Insignia 2.0 Turbo 4x4 | [B20NHT] | 09.2011-06.2013 |
OPEL | Insignia 2.0 Turbo 4x4 | [B20NHT] | 09.2013-03.2017 |
Reference Information
SR8671X 95520350 000SR8671X 1202517 428000-8060 12626963 91-29-5837 1202354 0000986CR1807 LRS04258 UD20531S 25-5420 DS2057 LRS4258 12657797 0986CR1807 0986UR1807 STN1429 DRS0947 S6457S STR70416 91-29-5837N 12655467 438000-1270 256739 3888 0000986UR1807 438000-0680Add Your Number
