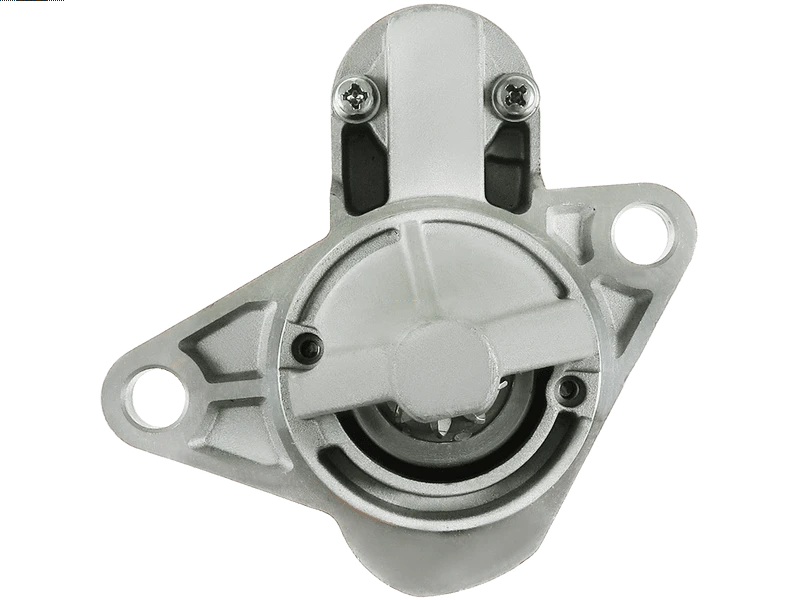

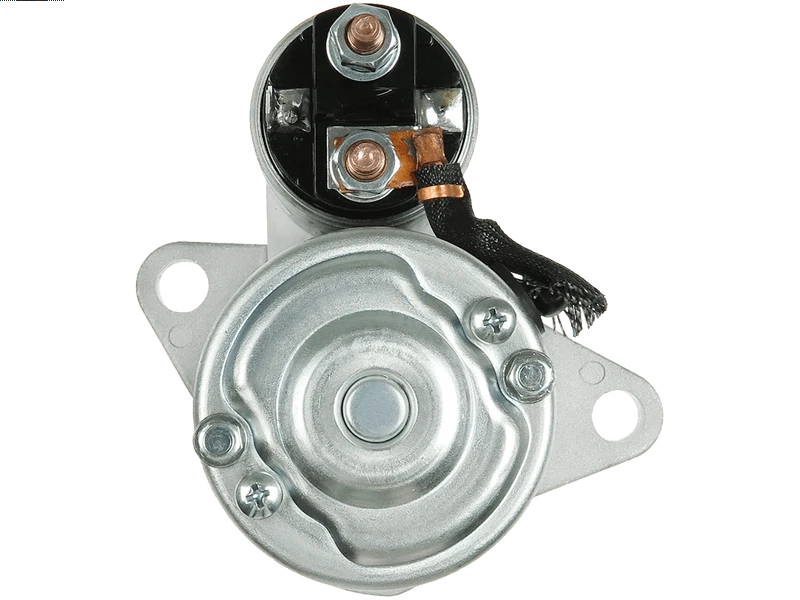

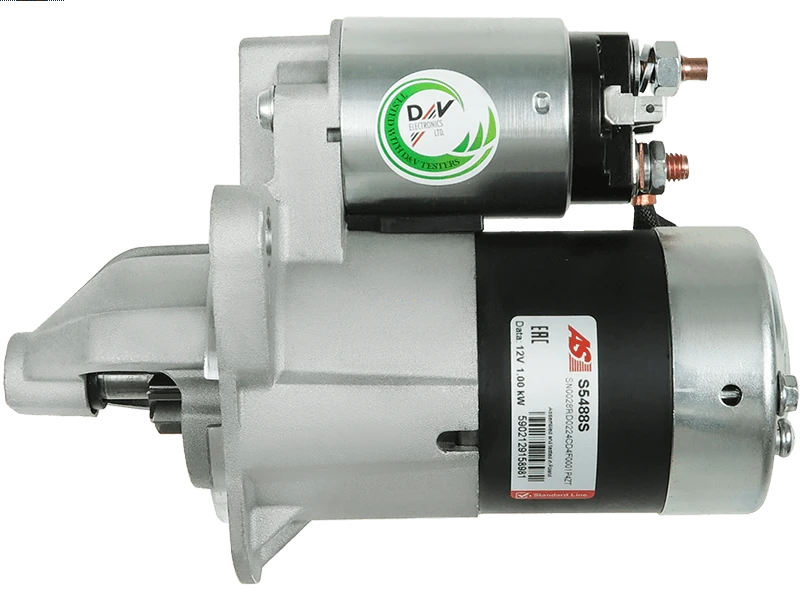

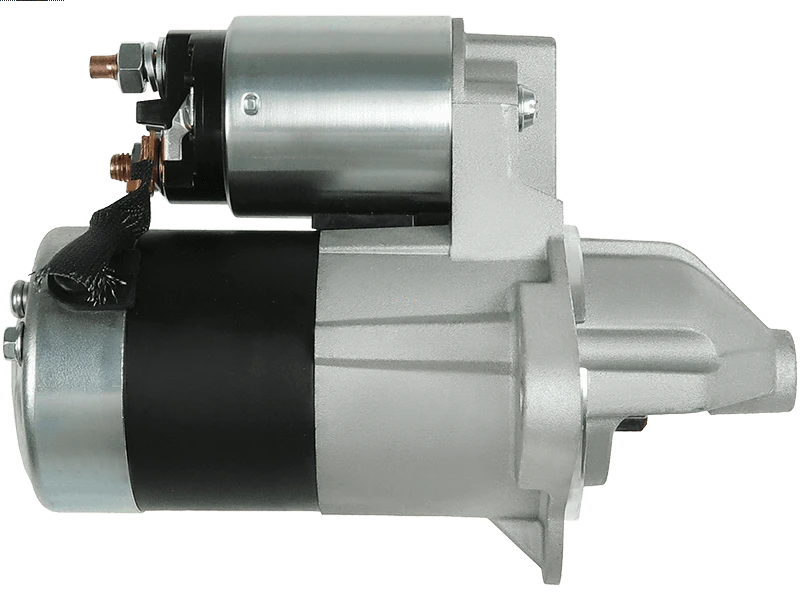

Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 194 mm |
| Mount Hole Center - Center (O.1) | 119 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 24 mm |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Neon 1.6 | [EJD] | 11.2001-12.2006 |
| CHRYSLER | PT Cruiser 1.6 | [EJD] | 11.2001-12.2010 |
Reference Information
M000T90081 M000T90082 STM1811 6035263.1 12350 6035263.2 254691 254691R 20437362RC 254691M 25-4334 3914 05293135AB 05293135AA M0T90082 STR5176 M0T90081 CST35263RS 88214539 20437362OE CGB-54334 CST35263GS STRE052 5293135AB PRSE052 830.564.092.130 M0T90081ZC M0T90082ZC LRS02662 UD19746S M000T90082ZC LRS2662 M000T90081ZCAdd Your Number
