Specifications

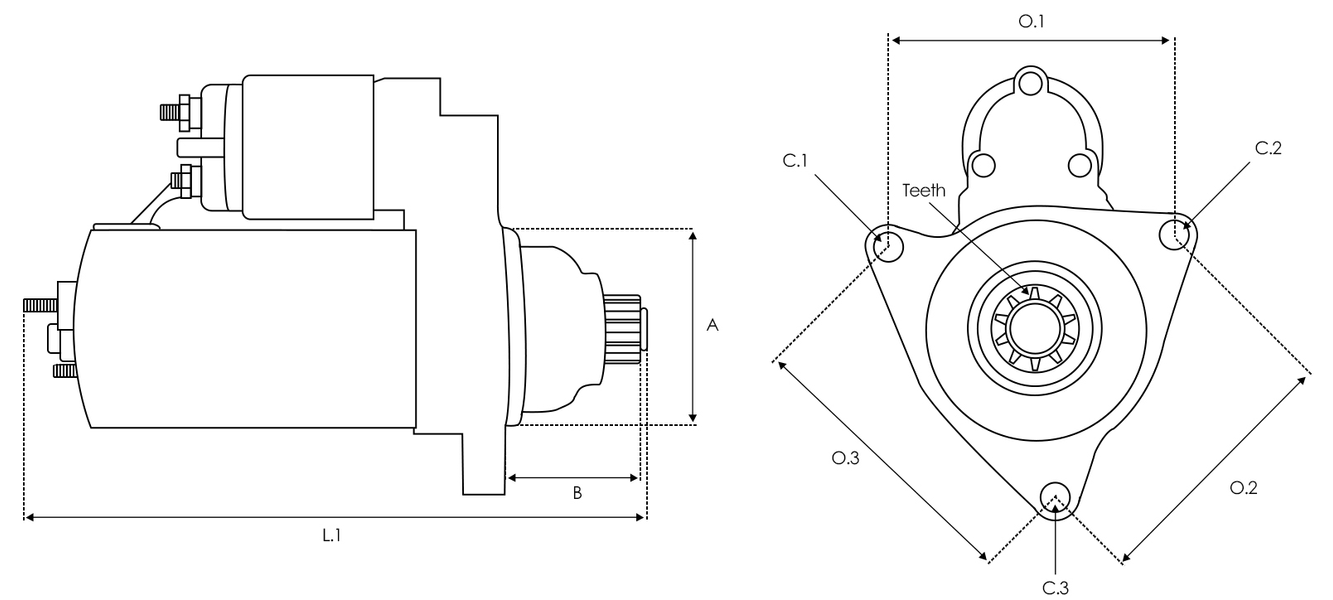

| Kilowatt | 10 kW |
| Length (L.1) | 399 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 89 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| Mount Hole Diameter (C.3) | 10.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 48 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DEUTZ | Engine |
Reference Information
256727B 4611915KZ 521.505.123.280 4611915 0001350024 STR10339 0001350025 1350024 04611915KZ 1350025 UD813369(BOSCH)SAdd Your Number
