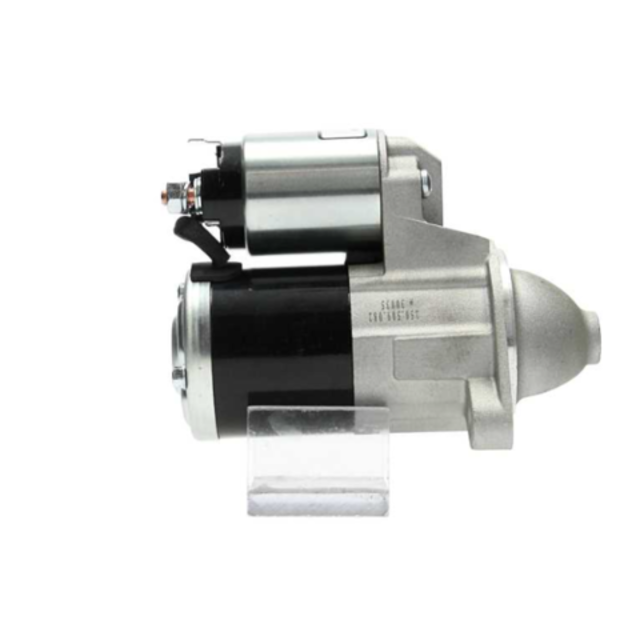

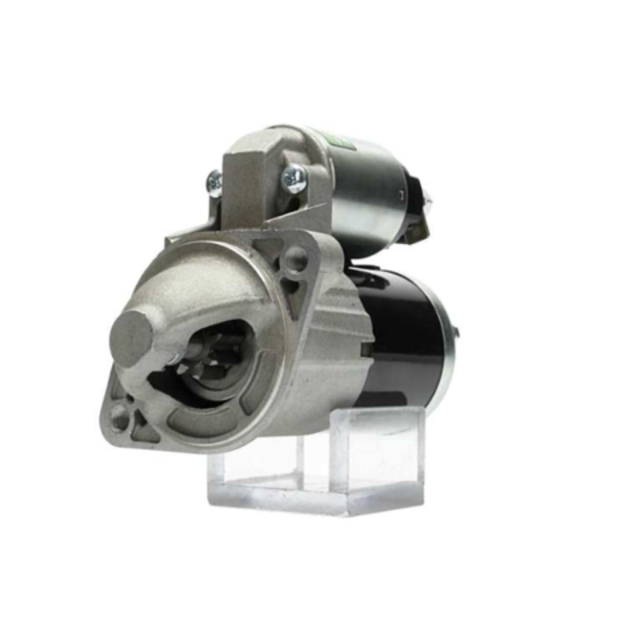

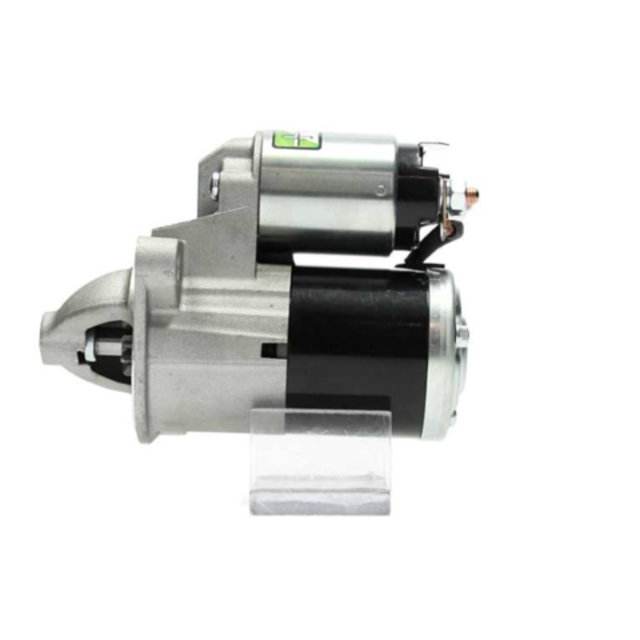

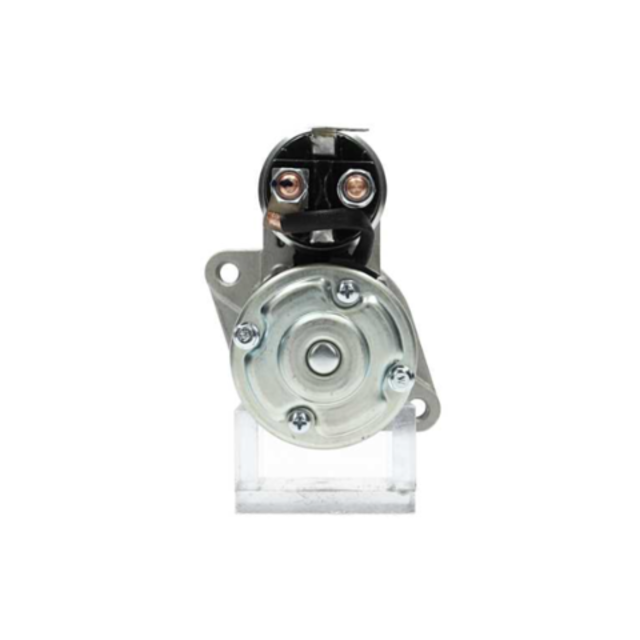

Brand new ASG-NZ Starter motor
STANDARD LINE
ASG-NZ
DELCO
Price:
NZ$ 295.10 including GST
NZ$ 256.60 excluding GST
or four payments of $73.78
with
Learn More
each
S1085(DELCO)
SAM-C8001
2
Associated Numbers
201312 250.509.082 254680V 25915 36100-25860 36100-26850 36100-26860 6945N 8000175 8000356 8212847 91-01-4733 DRS0619 F00E100559 JS1312 PXPSB-008 S-80455 S1085(DELCO) S1119M STR80189 TA000A37301 TM000A27601 UD02056S 70-6240 MSX361 0986CN1652 Bosch Exchange 10438865 Alanko 10439745 11439745 1406027 PIC 220612 Messmer 250509082 PSH 254680 DAS 255073 Elstock 324092082 DRI 3610022085 Kia 3610026850 3610026860 438865 50202038 RE-EX 6945 Lester WAI 6945R Remy 8000356SEL +line 8000775 88214595 Power Max 91014733 Wilson 910619 EDR 9933 CEVAM AEY3910 Auto Electro AS2411AC Charge AS2413AC CST46133 Airframe LRS03910 Lucas LRS3910 R5210330 Herth Buss RAS31720 S1085 AS-PL S131785 Short code S166955 S166956 SDR1069 Quasar SR4149N (USA) SRE1042 Everkraft STR2086sa Electrolog Wood TRS083 TWA WOOSTR80189 WS31720Specifications
| Kilowatt | 0.9 kW |
| Length (L.1) | 191 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| Pinion at Rest (B) | 10 mm |
| Rotation | CW |
| Spigot Diameter (A) | 77 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KIA | Cerato 1.6 | [G4ED] | 07.2004- |
| KIA | Cerato Saloon 1.6 | [G4ED] | 04.2004- |
| KIA | Rio 1.4 16V | [G4EE] | 03.2005- |
| KIA | Rio 1.4 16V | 01.2005- |
Reference Information
201312 DRS0619 220612 F00E100559 PXPSB-008 8000175 TM000A27601 UD02056S 6945N 91-01-4733 8000356 36100-25860 36100-26850 220504 36100-26860 25915 JS1312 S1085(DELCO) 254680V 250.509.082 TA000A37301 STR80189 8212847 S-80455 S1119MVideo/Publications
201312 250.509.082 254680V 25915 36100-25860 36100-26850 36100-26860 6945N 8000175 8000356 8212847 91-01-4733 DRS0619 F00E100559 JS1312 PXPSB-008 S-80455 S1085(DELCO) S1119M STR80189 TA000A37301 TM000A27601 UD02056S 220504 220612View your shopping basket or Browse other items in Starter Motors.
