Associated Numbers
101211-7630 101211-7631 101211-7632 101211-7633 553354RI 553354RID 976121-9763 ALT30151 DAN672 DRA0436 LJA1800 LJA1800AC LJA1800AD LNC1800 LNC1800AA LNC1800AA321 65-8489 anj337
ARROWHEAD AND0372, ND210-0421
BOSCH AL9402X
DENSO 101211-7630, 101211-7631, 101211-7632, 101211-7633, 210-0421
J&N ELECTRICAL PRODUCTS 400-52361
JAGUAR LJA1800, LJA-1800, LJA1800AC, LJA-1800AC, LJA1800AD, LJA-1800AD, LJA1800AE, LJA-1800AE, LNC1800AA, LNC-1800AA
LESTER 13758
LUCAS ELECTRIC LRA02286, LRA03394
0986CR0310 Bosch ruil
0986UR0310 Bosch ruil
1012117630 Denso show
1012117631 Denso
1012117632 Denso
1012117633 Denso show
115748 Cargo
12090309 EuroTec
13758 Lester
2141471202 DRI
2141721202 DRI
284767 Elstock
286506 Elstock
2905051 PIC
40525 CEVAM
845507120 PSH
930436 EDR
9761219763 Denso
AL9402X Bosch (USA)
DAN672 Denso
DRA0436 Remy
L81890 ATL
LJA1800 Jaguar
LJA1800AA Jaguar
LJA1800AC Jaguar
LJA1800AD Jaguar
LJA1800AE Jaguar
LNC1800 Jaguar
LNC1800AA Jaguar
LNC1800AA321 Jaguar
LRA02286 Lucas
LRA03394 Lucas
LRA2286 Lucas
RAA11547 Remy
Specifications
Fitted with OEM Regulator and INA Clutch Pulley (if fitted)
| Amp | 120 A |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 10.5 mm |
| Grooves | 7 qty |
| Length (L.1) | 194 mm |
| Outside Diameter (O.D.1) | 57.5 mm |
| Pivot Foot Length (B) | 58 mm |

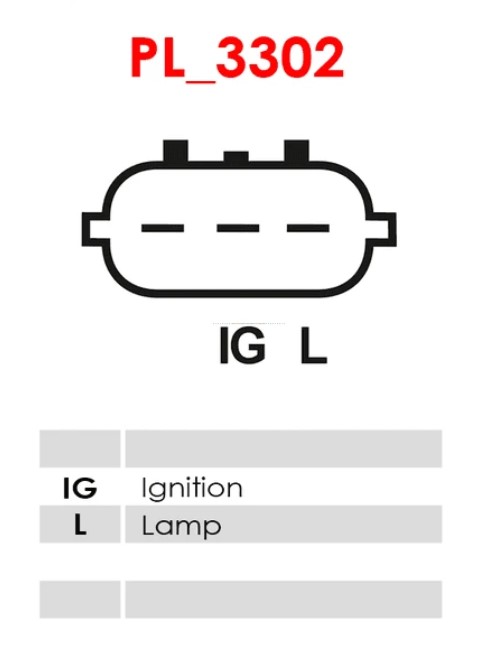

| Plug Code | PL_3302 |
| Pulley Type | SOLID |
| Pulley to Mount Distance (A) | 90 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAGUAR | XJ 8 3.2 | 01.1998- | |
| JAGUAR | XJ 8 4.0 | 01.1998- | |
| JAGUAR | XJ R 4.0 | 01.2003- | |
| JAGUAR | XK 8 4.0 | 01.1998- |
Reference Information
553354RI DAN672 LJA1800 ALT30151 DRA0436 101211-7631 101211-7632 LJA1800AC 101211-7630 LJA1800AD 101211-7633 LNC1800AA321 LNC1800 976121-9763 553354RID LNC1800AAVideo/Publications
101211-7630 101211-7631 101211-7632 101211-7633 553354RI 553354RID 976121-9763 ALT30151 DAN672 DRA0436 LJA1800 LJA1800AC LJA1800AD LNC1800 LNC1800AA LNC1800AA321Add Your Number
