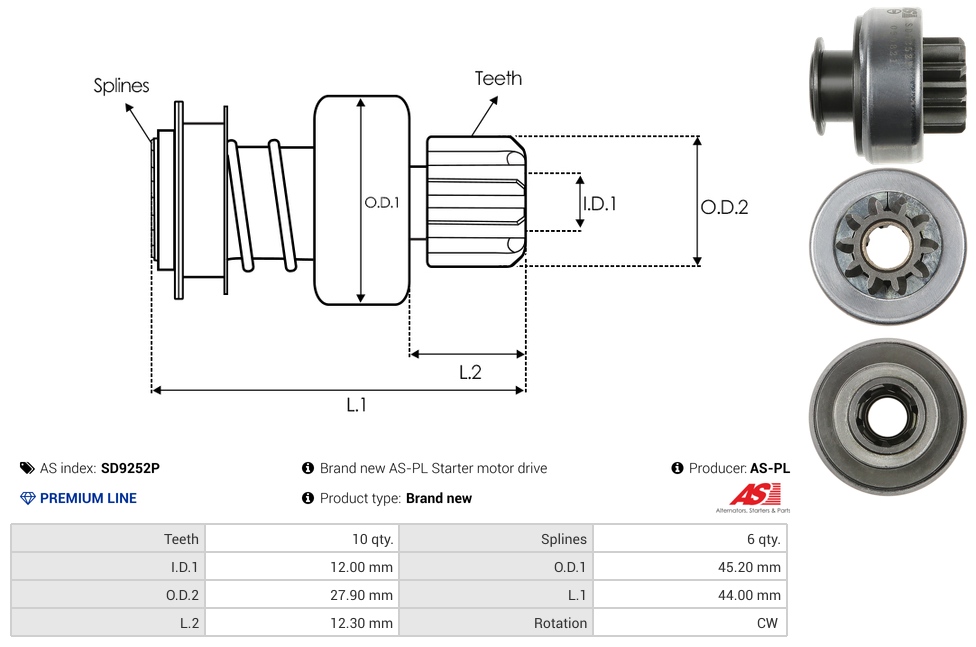

Specifications
| Inside Diameter (I.D.1) | 12 mm |
| Length (L.1) | 44 mm |
| Length (L.2) | 12.3 mm |
| No./Splines | 6 qty |
| No./Teeth | 10 qty |
| Outside Diameter (O.D.1) | 45.2 mm |
| Outside Diameter (O.D.2) | 27.9 mm |
| Rotation | CW |
| Type | Drive |
| Unit Type | FORD |
Reference Information
1997 DRVX045 UD19825SDVideo/Publications
233006904R 9ET0066AIAdd Your Number
