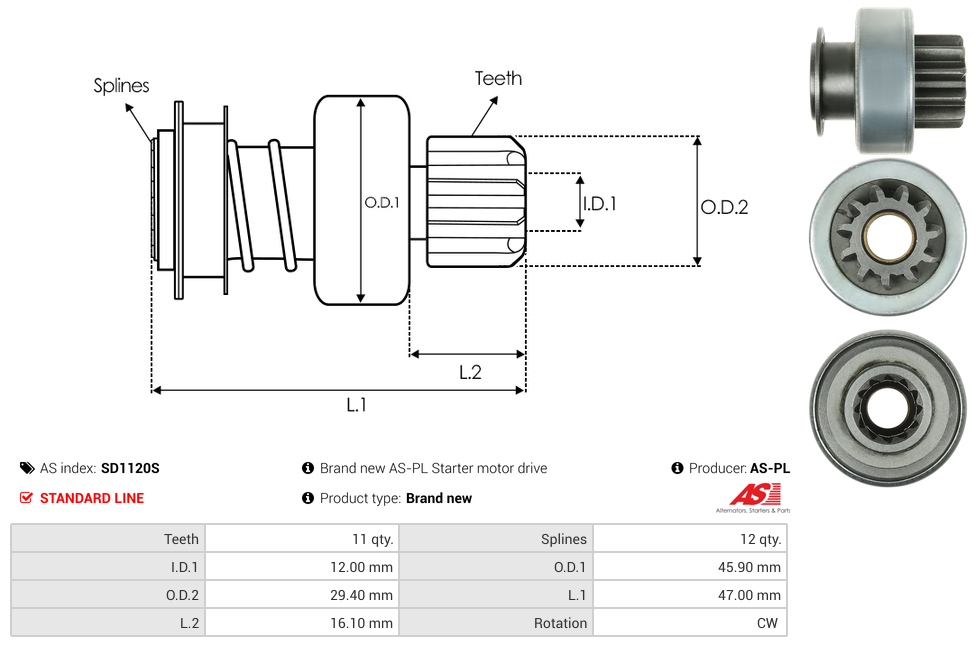

Specifications
| Inside Diameter (I.D.1) | 12 mm |
| Length (L.1) | 47 mm |
| Length (L.2) | 16.1 mm |
| No./Splines | 12 qty |
| No./Teeth | 11 qty |
| Outside Diameter (O.D.1) | 45.9 mm |
| Outside Diameter (O.D.2) | 29.4 mm |
| Rotation | CW |
| Type | Drive |
| Unit Type | DELCO |
Reference Information
UD45273SDVideo/Publications
S1147S 8000000Add Your Number
