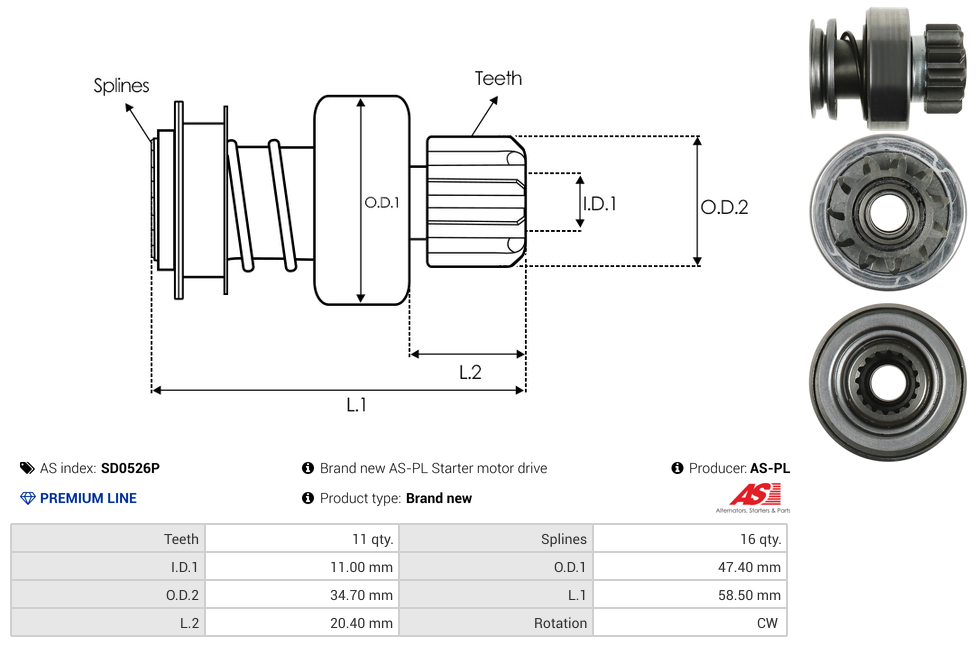

Specifications
Inside Diameter (I.D.1) | 11 mm |
Length (L.1) | 58.5 mm |
Length (L.2) | 20.4 mm |
No./Splines | 16 qty |
No./Teeth | 11 qty |
Outside Diameter (O.D.1) | 47.4 mm |
Outside Diameter (O.D.2) | 34.7 mm |
Rotation | CW |
Type | Drive |
Unit Type | BOSCH |
Reference Information
ZN1983 DRV1477 1983 1006210505 UD90782SDVideo/Publications
1170203 0001170602 0001170203 1170602 0001170202 1170202 1170603 0001170603Add Your Number
