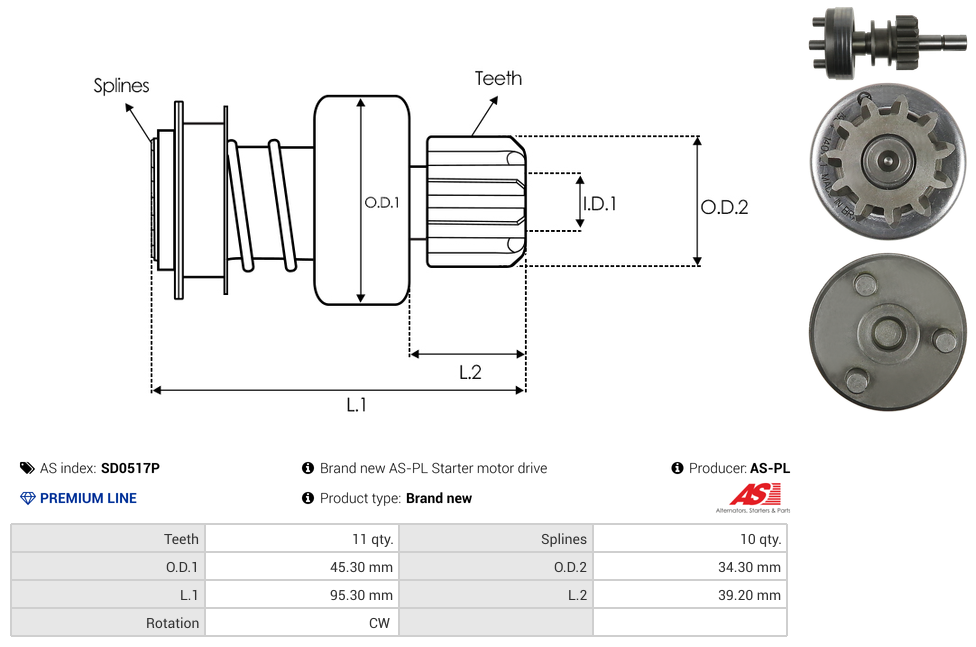

Specifications
Length (L.1) | 95.3 mm |
Length (L.2) | 39.2 mm |
No./Splines | 10 qty |
No./Teeth | 11 qty |
Outside Diameter (O.D.1) | 45.3 mm |
Outside Diameter (O.D.2) | 34.3 mm |
Rotation | CW |
Type | Drive |
Unit Type | BOSCH |
Reference Information
1964 1006485025 1006201510 ZN1964 DRV1126A 1006212003 UD19765SDVideo/Publications
F002GC0044 F002GC0045 J7BT11000AA 0399709050 399709049 GN1511000AA 0001194602 0001194603 F000C60303 F000C60302 1194603 1194602 0399709049 399709050Add Your Number
