Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 552.78 including GST
NZ$ 480.68 excluding GST
or four payments of $138.20
with
Learn More
UOM:
each
Product Code:
A6712S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
104210-7060Associated Numbers
A6712S AS-PL
AL6712S ELC-NZ
104210-7060 DENSO
104211-4700 DENSO
27060-0E020 TOYOTA
27060-0L110 TOYOTA
27060-0L290 TOYOTA
CGB-17060AINDE
CGB-87998AINDE
CAL40020ASCASCO
40668CEVAM
2353701002 DRI
ALT6913 ELECTROLOG
28-7998 ELSTOCK
556442 RIKUHNER
LRA04389 LUCAS
LRA4389 LUCAS
14-945 PANAKL

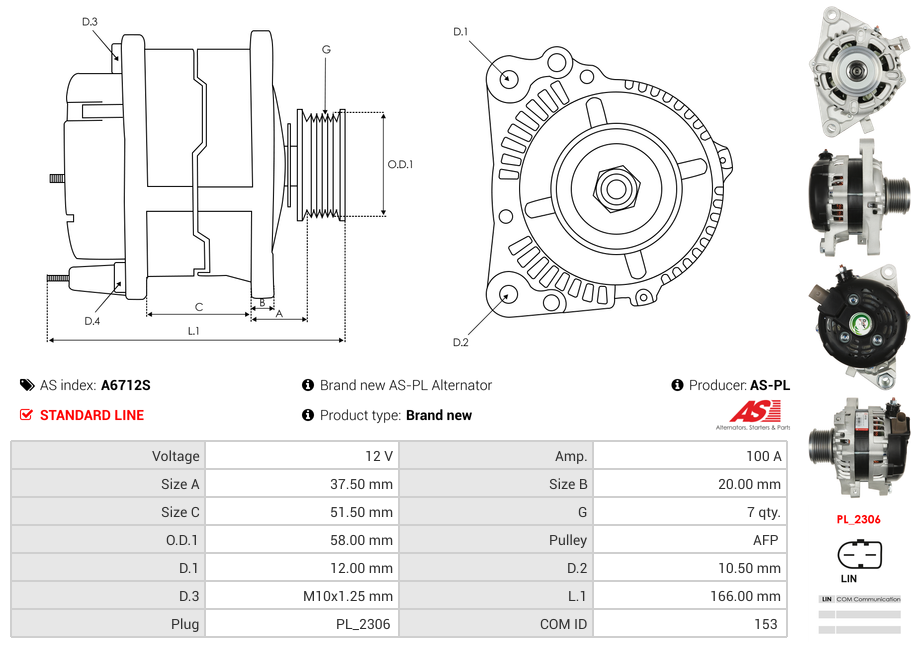

Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 166 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51.50 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.2) | 58 mm |
| Pulley to Mount Distance (A) | 37.50 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Hilux 2.4 D | [2GD-FTV] | 05.2015- |
| TOYOTA | Hilux 2.4 D | [2GD-FTV] | 10.2018- |
| TOYOTA | Hilux 2.4 D 4WD | [2GD-FTV] | 05.2015- |
| TOYOTA | Hilux 2.4 D 4WD | [2GD-FTV] | 10.2018- |
| TOYOTA | HILUX VIII Pickup (_N1_) 2.4 D 4WD (GUN125) | 2GD-FTV | 10.2018- |
| TOYOTA | HILUX VIII Pickup (_N1_) 2.4 D 4WD (GUN125_, GUN125R) | 2GD-FTV | 05.2015- |
| TOYOTA | HILUX VIII Pickup (_N1_) 2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... | 2GD-FTV | 05.2015- |
| TOYOTA | HILUX VIII Pickup (_N1_) 2.4 D (GUN135) | 2GD-FTV | 10.2018- |
Reference Information
| 104210-7060 | DENSO |
| 104211-4700 | DENSO |
| 195.966.100.050 | WAI |
| 2353701002 | DRI |
| 27060-0E020 | TOYOTA |
| 27060-0L110 | TOYOTA |
| 27060-0L290 | TOYOTA |
| 28-7998 | ELSTOCK |
| 40668 | CEVAM |
| 556442RI | KUHNER |
| 89216809 | POWERMAX |
| A131.190 | WAI |
| A6712S | AS-PL |
| ALT30656 | WOODAUTO |
| ALT30760 | WOODAUTO |
| ALT6913 | ELECTROLOG |
| CAL40020AS | CASCO |
| CGB-17060 | AINDE |
| CGB-87998 | AINDE |
| LRA04389 | LUCAS |
| LRA4389 | LUCAS |
| UD19678A | AS-PL |
| WOOALT30656 | WOODAUTO |
| WOOALT30760 | WOODAUTO |
Video/Publications
