AGH-C7001 - Brand new OEM HITACHI Alternator

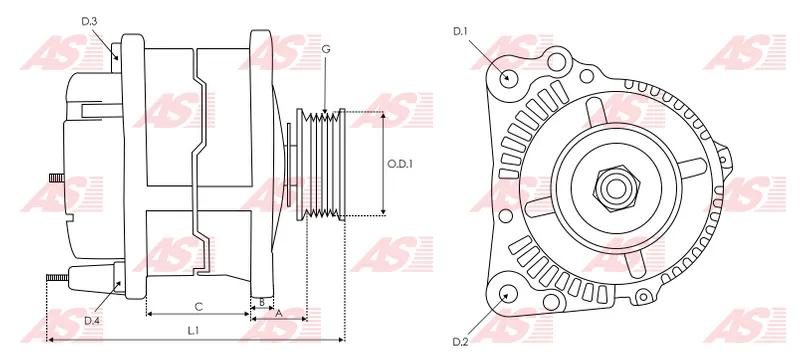

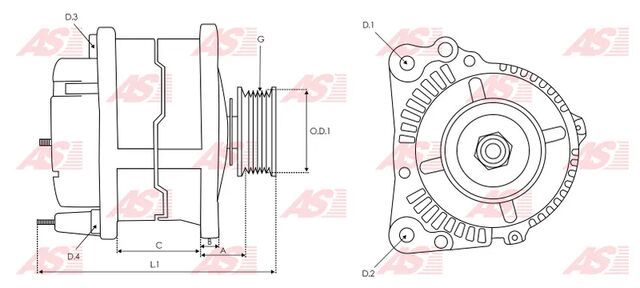

Specifications

Amp	190 A
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Grooves	7 qty
Length (L.1)	217 mm
Outside Diameter (O.D.1)	56 mm
Pivot Foot Length (B)	14 mm
Pivot Inside Length (C)	60.5 mm
Plug Code	PL_2300
Pulley Type	CLUTCH INA
Pulley to Mount Distance (A)	30 mm
Unit Type	HITACHI
Voltage	12 V
Water Cooled	Yes

Vehicle Applications

Make	Model	Type	Year
AUDI	Q7 3.6 FSi Quattro	[BHK]	08.2006-05.2010
VW	Touareg 3.2 V6	[AZZ]	01.2004-12.2006
VW	Touareg 3.2 V6	[BAA]	01.2004-12.2006
VW	Touareg 3.2 V6	[BKJ]	01.2004-12.2006
VW	Touareg 3.2 V6	[BMV]	01.2004-12.2006
VW	Touareg 3.2 V6	[BMX]	01.2004-12.2006
VW	Touareg 3.2 V6	[BRJ]	01.2004-12.2006
VW	Touareg 3.6 V6 FSi	[BHK]	01.2005-12.2010
VW	Touareg 3.6 V6 FSi	[BHL]	01.2005-12.2010

Reference Information

021903026N 11245N 136158 2020212 2506158 28-7556 305.413.190 553518RIH A-80624 AEG1217 ALH3908 ALT222120 ALTF126 ALTF126HI CAL20212 CAL20212AS CAL20212ES CAL20212GS CAL20212OS CAL20212RS CGB-87556 DRA1734 HITLR1190-908 LR1190-908 LR1190-908B LR1190-908C LRA03946 LRA3946 PRAF126 UD13158A
