S9446S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
NIKKO
Price:
NZ$ 991.52 including GST

NZ$ 862.19 excluding GST
each
S9446S
No stock in NZ
No stock in NZ

16-178 nxs9716 snj140gq 70-8830
0230003270 Nikko show
0230003276 Nikko
0230003280 Nikko show
0230003281 Nikko
0230003282 Nikko
0230003283 Nikko
0230003284 Nikko
0230003285 Nikko show
0230003286 Nikko
0230003287 Nikko
0230003288 Nikko
114164 Cargo
185248 PIC
185248A PIC
19934 Lester
220627 Messmer
6008134790 Komatsu
6008134792 Komatsu
6008136610 Komatsu
6008136611 Komatsu
6008136612 Komatsu
6008136613 Komatsu
91284035 Wilson
941555123 PSH
Nikko 0-23000-3288

Substitutes:
J&N 410-50008
Wilson 91-28-4035

References:
Komatsu 600-813-6612
Lester 19934
Nikko 0-23000-3281, 0-23000-3287, 02-23-2036
Wilson 91-28-4035
IMI Hi Torque IMI45101-001
Nikko 0-23000-3288

References:
Komatsu 600-813-4534, 600-813-4680, 600-813-4681, 600-813-4682, 600-813-4790, 600-813-4791, 600-813-4792, 600-813-6610, 600-813-6611, 600-813-6612
Lester 18084, 19934
Nikko 0-23000-3270, 0-23000-3274, 0-23000-3275, 0-23000-3276, 0-23000-3280, 0-23000-3281, 0-23000-3282, 0-23000-3283, 0-23000-3284, 0-23000-3285, 0-23000-3286, 0-23000-4530, 0-23000-7020, 0-23000-7021, 0-23000-7022, 0-23000-7023, 0-23000-7025
PIC Picture ID 185-206, 185-248
Wilson 91-28-4040
0-23000-3280, 0-23000-3284, 0-23000-3285, 0-23000-3286, 02-23-2036

References:
J&N 410-50008
Komatsu 600-813-6613
Nikko 0-23000-3280, 0-23000-3284, 0-23000-3285, 0-23000-3286

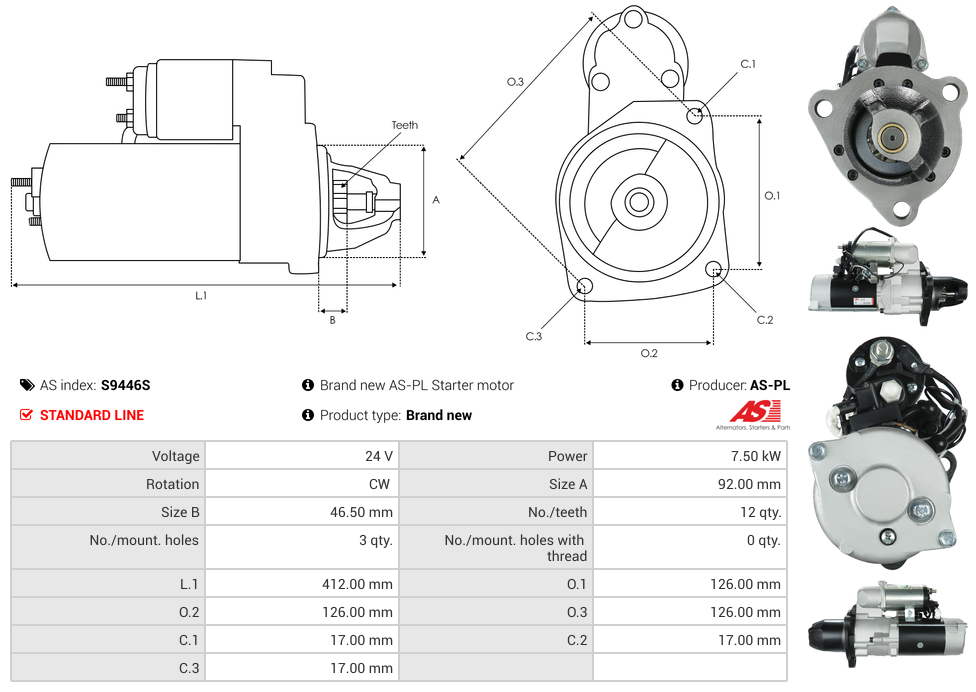

Kilowatt7.5 kW
Length (L.1)412 mm
Mount Hole Center - Center (O.1)126 mm
Mount Hole Center - Center (O.2)126 mm
Mount Hole Center - Center (O.3)126 mm
Mount Hole Diameter (C.1)17 mm
Mount Hole Diameter (C.2)17 mm
Mount Hole Diameter (C.3)17 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth12 qty
Pinion at Rest (B)46.5 mm
RotationCW
Spigot Diameter (A)92 mm
Unit TypeNIKKO
Voltage24 V
Make Model Type Year
KOMATSU D53-17 11.0 [6D125] 01.1995-12.1999
KOMATSU D53A-17 11.0 [6D125] 01.1984-12.1989
KOMATSU D53A-17 11.0 [6D125E] 01.1984-12.1989
KOMATSU D53A-18 11.0 [6D125] 01.2000-12.2000
KOMATSU D53P-17 11.0 [6D125E] 01.1984-12.1991
KOMATSU D53P-18 11.0 [6D125] 01.2000-12.2000
KOMATSU D58E-1 11.0 [6D125] 01.1986-12.2002
KOMATSU D58E-1 11.0 [6D125E] 01.1986-12.2002
KOMATSU D58E-1B 11.0 [6D125E] 01.1986-12.2002
KOMATSU D58P-1 11.0 [6D125] 01.1987-12.2001
KOMATSU D58P-1 11.0 [6D125E] 01.1987-12.2001
KOMATSU D58P-1B 11.0 [6D125E] 01.1987-12.2001
KOMATSU D60P-12 11.0 [S6D125] 01.1991-12.1995
KOMATSU D60P-12-E 11.0 [S6D125E] 01.1996-12.2003
KOMATSU D61E-12 8.3 [S6D114E] 01.2000-12.2002
KOMATSU D61EX-12 8.3 [S6D114E] 01.2000-12.2007
KOMATSU D61EX-12A 8.3 [S6D114E] 01.2003-12.2007
KOMATSU D61EX-15 8.3 [SA6D114E] 01.2004-12.2010
KOMATSU D61P-12 8.3 [S6D114E] 01.2000-12.2002
KOMATSU D61PX-12 8.3 [S6D114E] 01.2003-12.2007
KOMATSU D61PX-12 8.3 [SA6D114E] 01.2003-12.2007
KOMATSU D61PX-15 8.3 [SA6D114E] 01.2004-12.2010
KOMATSU D65E 11.0 [6D125] 01.1994-12.1997
KOMATSU D65E-12 11.0 [6D125] 01.1993-12.2003
KOMATSU D65EX-12 11.0 [S6D125] 01.1993-12.1997
KOMATSU D65EX-12 11.0 [S6D125E] 01.1996-12.2003
KOMATSU D65P-12 11.0 [S6D125E] 01.1993-12.2003
KOMATSU D65P-8 11.0 [S6D125] 01.2000-12.2000
KOMATSU D65PX-12 11.0 [S6D125] 01.1993-12.1995
KOMATSU D65PX-12 11.0 [S6D125E] 01.1995-12.2003
KOMATSU D70LE-12 11.0 [6D125] 01.2000-12.2000
KOMATSU D70LE-12 11.0 [6D125E] 01.2000-12.2000
KOMATSU D75S-5 11.0 [S6D125] 01.2000-12.2000
KOMATSU D85EASS-2A [S6D125-1] 01.2000-12.2000
KOMATSU D85ESS-2A 11.0 [S6D125E] 01.2008-12.2012
KOMATSU GD605A-5 [6D125-1] 01.2000-12.2010
KOMATSU GD705A-4A [S6D125-1] 01.2000-12.2010
MULTIQUIP DCA-220SSK [S6D125E] 01.1997-12.2007
MULTIQUIP DCA-400SSK [SA6D125E-2] 01.1997-12.2007
0-23000-3288 6050604.1 0-23000-3286 0-23000-3287 19934N 0-23000-3280 0-23000-3281 20446406BN 0-23000-3284 0-23000-3285 0-23000-3282 0-23000-3283 941.555.123.710 20446406OE CST50604AS 0-23000-3276 UD19280S 0-23000-3270 CST50604GS 6008136632 600-813-4790 91-28-4035 600-813-4792 600-813-6613 600-813-6610 600-813-6611 941.555.123.140 6050604 600-813-6612
UD19280S 91-28-4035 941.555.123.140 941.555.123.710 0-23000-3288 CST50604AS CST50604GS 20446406BN 20446406OE 6050604.0 6050604.1 0-23000-3270 0-23000-3276 0-23000-3280 0-23000-3281 0-23000-3282 0-23000-3283 0-23000-3284 0-23000-3285 0-23000-3286 0-23000-3287 600-813-4790 600-813-4792 600-813-6610 600-813-6611 600-813-6612 600-813-6613
