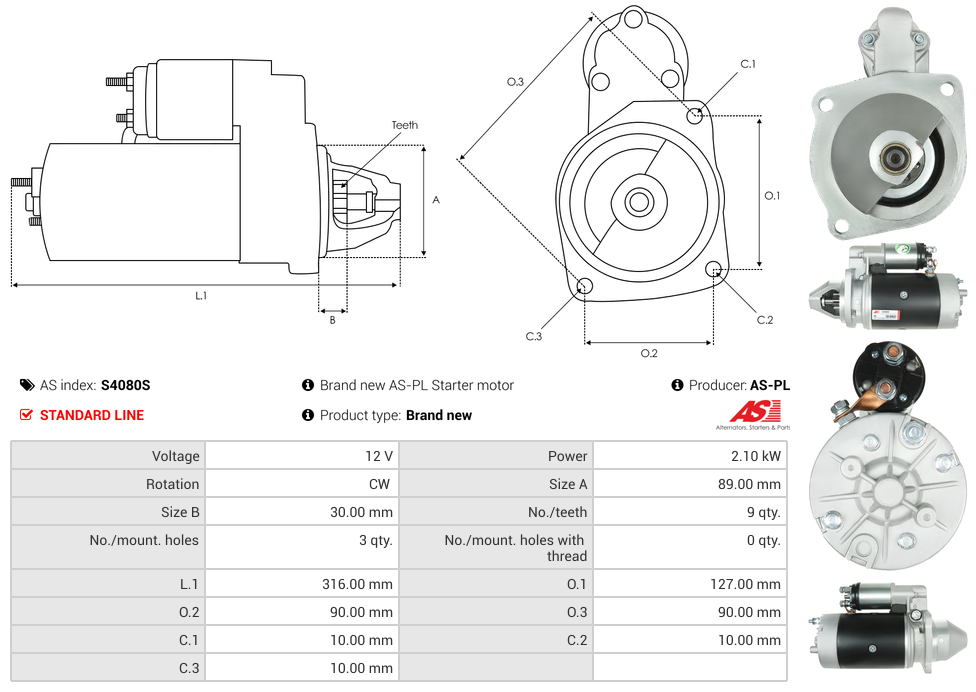

Specifications
Kilowatt | 2.1 kW |
Length (L.1) | 316 mm |
Mount Hole Center - Center (O.1) | 127 mm |
Mount Hole Center - Center (O.2) | 90 mm |
Mount Hole Center - Center (O.3) | 90 mm |
Mount Hole Diameter (C.1) | 10 mm |
Mount Hole Diameter (C.2) | 10 mm |
Mount Hole Diameter (C.3) | 10 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 9 qty |
Pinion at Rest (B) | 30 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | LUCAS/MARELLI |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
AUSTIN | Ambassador 2.0 Fastback | [20H] | 03.1982-10.1984 |
AUSTIN | Princess 2 2000 | [20H] | 10.1978-10.1982 |
Reference Information
16173 25719 25266A 25389 25620 25-0139 25674 000986050050 25720 16173N 25734 25359 986050050 LRS00169 25371 LRS149 25266 UD19535S S4080S LRS00149 LRS00425Video/Publications
16173 LRS149 UD19535S 25266 25266A 25359 25371 25389 25620 25674 25719 25720 25734 LRS00169 LRS00425 0986050050 LRS00149 25-0139 16173NAdd Your Number
