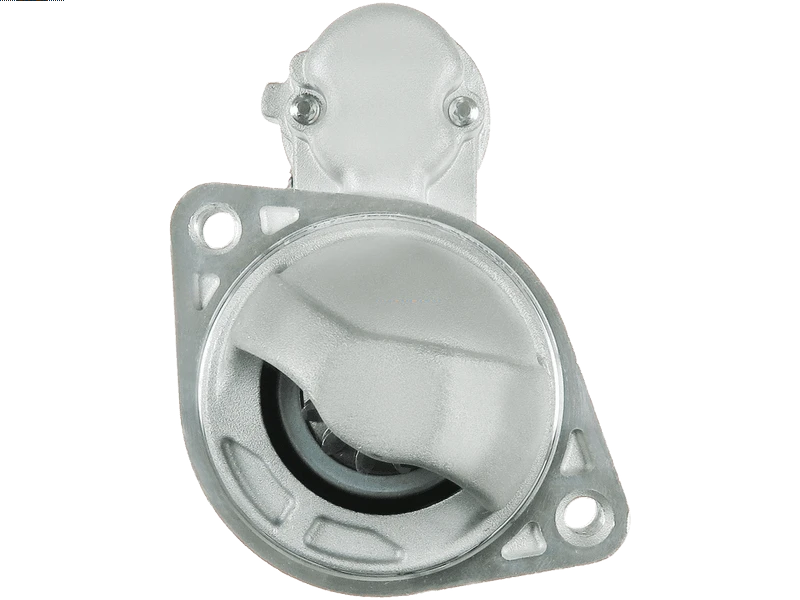

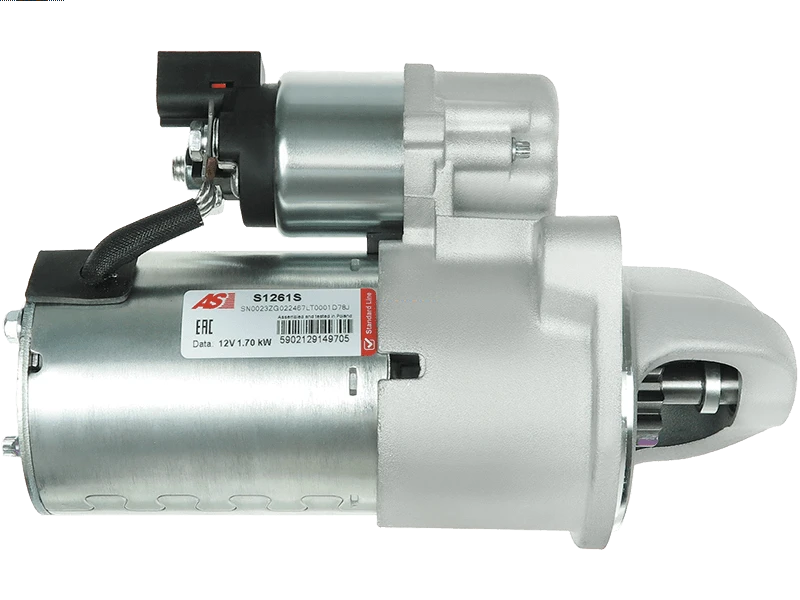

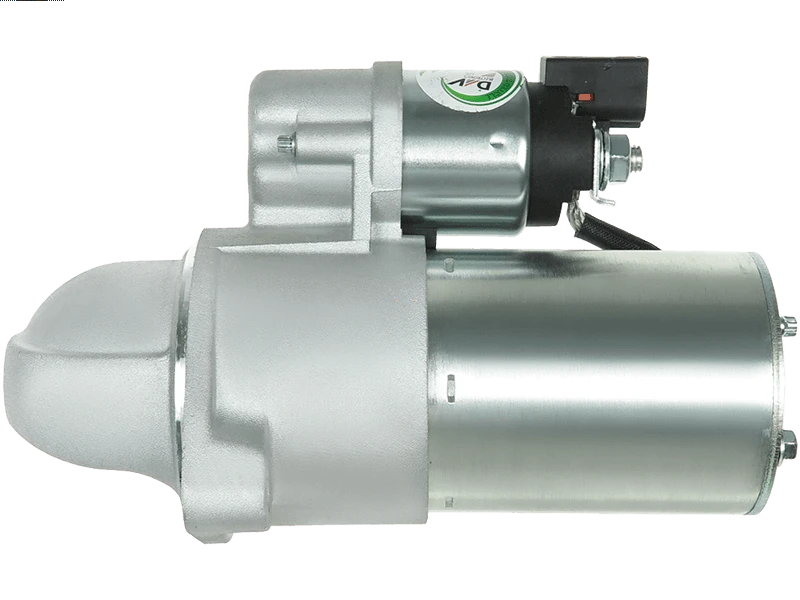

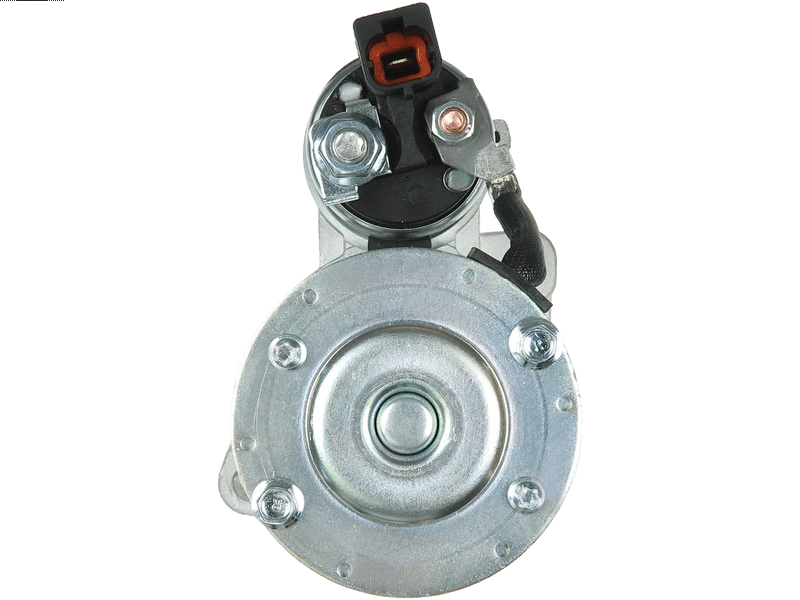

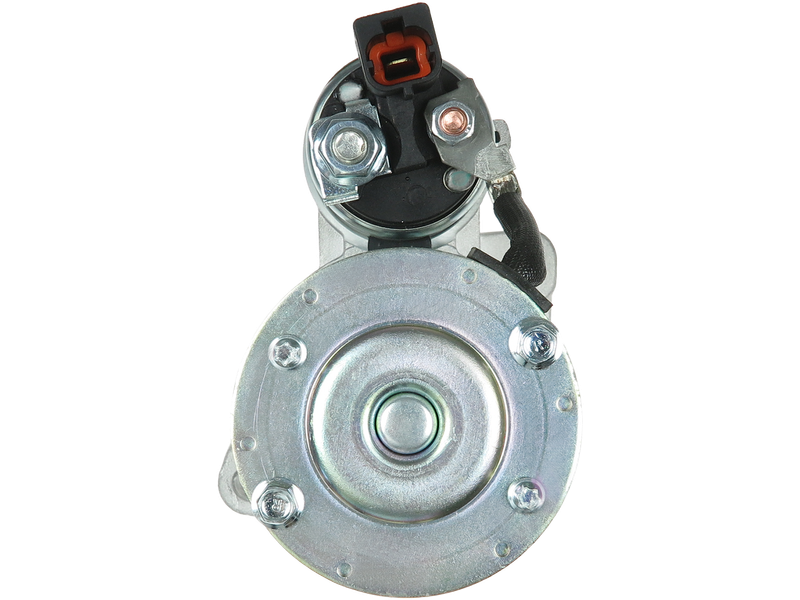

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 299.67 including GST
NZ$ 260.58 excluding GST
or four payments of $74.92
with
Learn More
each
S1261S
2
Information
36100-2A970Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 210 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 77 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | i30 1.6 CDi | [D4FB] | 11.2016- |
| HYUNDAI | i30 1.6 CRDi | [D4FB] | 01.2015- |
| HYUNDAI | i30 1.6 CRDi | [D4FB] | 03.2017- |
| HYUNDAI | i30 1.6 CRDi | [D4FB] | 05.2015- |
| HYUNDAI | i30 1.6 CRDi | [D4FB] | 06.2012- |
| HYUNDAI | i30 1.6 CRDi | [D4FB] | 11.2011-12.2016 |
| HYUNDAI | i30 1.6 CRDi | [D4FB] | 11.2015- |
| HYUNDAI | i30 1.6 CRDi | [D4FB] | 12.2011-12.2015 |
| HYUNDAI | i30 1.6 CRDi | [D4FB] | 12.2011-12.2016 |
| HYUNDAI | i30 1.6 CRDi | [D4FB-5P] | 06.2012-12.2015 |
| HYUNDAI | i30 1.6 CRDi | [G4LC] | 05.2013- |
| HYUNDAI | i30 1.6 CRDi | 08.2018- | |
| HYUNDAI | i30 1.6 CRDi VGT | [D4FB] | 03.2017- |
| HYUNDAI | i40 1.7 CRDi | [D4FD] | 05.2015- |
| HYUNDAI | ix20 1.6 CRDi | [D4FB] | 06.2011- |
| HYUNDAI | ix20 1.6 CRDI | [D4FB] | 06.2011- |
| HYUNDAI | Tucson 1.7 CDi | [D4FD] | 06.2015- |
| HYUNDAI | Tucson 1.7 CRDi | [D4FD] | 06.2015- |
| KIA | Ceed 1.6 CRDi | [D4FB] | 03.2013- |
| KIA | Ceed 1.6 CRDi | [D4FB] | 05.2012- |
| KIA | Ceed 1.6 CRDi | [D4FB] | 09.2012- |
| KIA | Ceed 1.6 CRDi 136 | [D4FB] | 07.2015- |
| KIA | K5 1.7 CRDi | [D4FD] | 09.2016- |
| KIA | Optima 1.7 CRDi | [D4FD] | 09.2016- |
| KIA | Pro Ceed 1.6 CRDi | [D4FB] | 03.2013- |
| KIA | Pro Ceed 1.6 CRDi 136 | [D4FB] | 07.2015- |
| KIA | Sportage 1.7 CRDi | [D4FD-L] | 09.2015- |
| KIA | Sportage 1.7 CRDi | [D4FD-L] | 11.2016- |
| KIA | Sportage 1.7 CRDi | [D4FD-L] | 12.2010- |
| KIA | Venga 1.6 CRDi | [D4FB] | 02.2010- |
Reference Information
| 116271 | CARGO |
| 1204354 | VALEO |
| 150.926.122.030 | PSH |
| 150.926.122.390 | PSH |
| 20460911OE | REAL |
| 220761 | ERA |
| 221001 | ERA |
| 25-4467 | ELSTOCK |
| 255667D | KUHNER |
| 255694V | KUHNER |
| 30667N | WAI / TRANSPO |
| 30667-OS | WAI / TRANSPO |
| 36100-2A835 | HYUNDAI / KIA |
| 36100-2A900 | HYUNDAI / KIA |
| 36100-2A970 | HYUNDAI / KIA |
| 6046119.1 | SANDO |
| 8000551 | DELCO |
| 8000680 | DELCO |
| 9533 | CEVAM |
| AEY3794 | AUTOELECTRO |
| CGB-22835 | AINDE |
| CST46119GS | CASCO |
| DRS1189 | DELCO |
| F032116271 | CARGO |
| J5210535 | HERTH+BUSS |
| LRS03794 | LUCAS |
| LRS3794 | LUCAS |
| S1261S | AS-PL |
| S12DR0415A2 | SIDAT |
| S130.301 | PSH |
| S167.023 | PSH |
| STA8835 | KRAUF |
| STR2212 | ELECTROLOG |
| STR2213 | ELECTROLOG |
| STX200932 | STARDAX |
| STX200932R | STARDAX |
| UD21184S | AS-PL |
