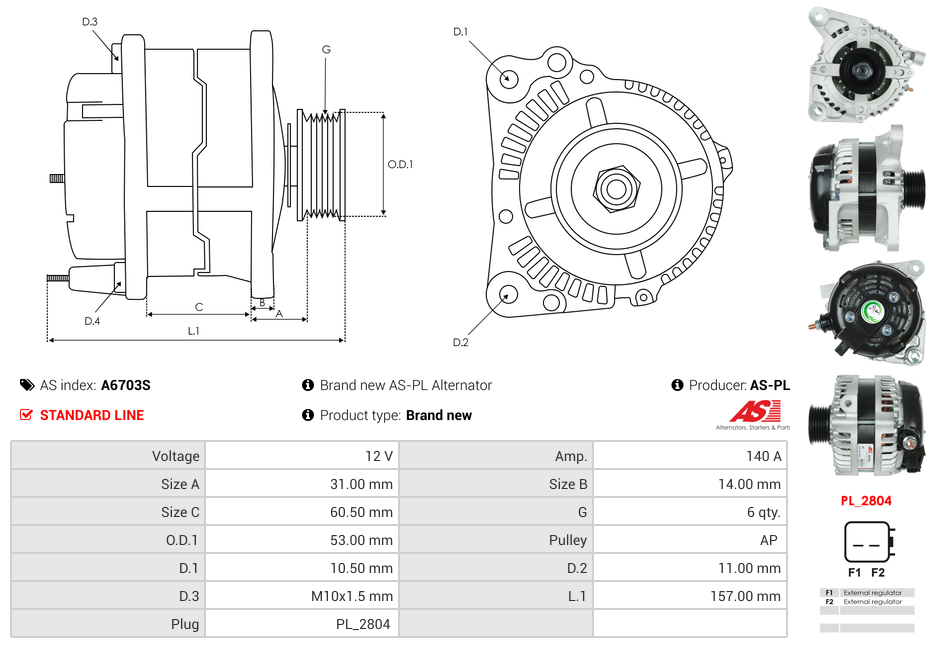

Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Grooves | 6 qty |
| Length (L.1) | 157 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.5 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 53 mm |
| Plug Code | PL_2804 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Grand Voyager 3.8 | [EGL] | 10.2007- |
| JEEP | Wrangler 3.8 | [EGT] | 04.2007- |
| JEEP | Wrangler 3.8 | [EGT] | 04.2007-12.2011 |
| JEEP | Wrangler 3.8 RWD | [EGT] | 10.2007-09.2010 |
Reference Information
89216317 00986UR0689 90-29-5699 0986UR6292 UD21241A 446242 LRA03983 0AL6462X 0AL6477X 0986UR0689 4727865AB 90-29-5699N AL6477X ALT6442 04801304AC 4801304AC AL6462X 11294N 27-7593 835.952.140.050 04727865AB 421000-0560 LRA3983 421000-0541 R4727865AB 421000-0542 421000-0561 421000-0540 421000-0562 00986UR6292 40171Video/Publications
90-29-5699N 11294N 835.952.140.050 LRA3983 LRA03983 27-7593 421000-0542 421000-0541 421000-0540 4727865AB 04801304AC 40171 UD21241A 421000-0560 0986UR0689 0986UR6292 89216317 04727865AB R4727865AB 421000-0561 421000-0562 AL6462X AL6477XAdd Your Number
