or four payments of $144.13
with
Learn More
Associated Numbers
0009061503 0009064702 0125711120 209257 554289RIB 555.930.175 A0009061503 A0009064702 A0530S DRA1557 UD13165A KRAUF ALB7120 ALB7120GE Mercedes Benz 0008081503 A0008081503 ZAUFER 301N22227Z Mercedes-Benz 0009060922 0125711099 Bosch show 0125711099OR +line 0125711100 0125711119 0125711120OR 0986081850 ruil 12090723 EuroTec 2253181752 DRI 286942 Elstock 555929175 PSH 555930175 931557 EDR 931558 A0009060922 Remy DRA1558 LRA03832 Lucas 65-1737g 0-125-711-099 0-125-711-100 Newman AL0786N Reman AL0786X Service Europe 0-986-081-857 IAT A20781 Industry 20781 Lester 000-906-09-22 000-906-09-22-80 A-000-906-09-22 A-906-0922-80 A00-090-60-922-80 A000-906-09-22 PIC 220-5861 Romaine Electric 20781N SEG Automotive 0125.711.099 Voltux V2-20781 WAI
690125711099

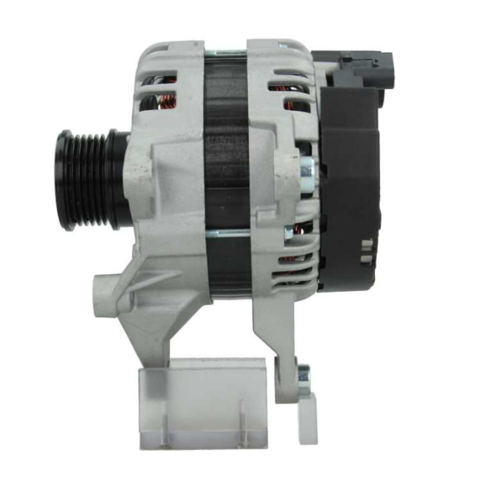

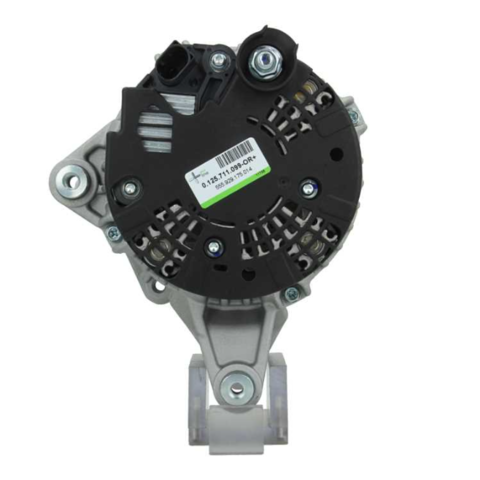

Specifications
Fitted with OEM Regulator and INA Clutch Pulley (if fitted)
| Amp | 175 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | +Plus Line Pro |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | C160 1.6 | (205)[M274.910] | 01.2015- |
| MERCEDES BENZ | C180 1.6 | (205)[M274.910] | 01.2014- |
| MERCEDES BENZ | C180 1.6 CGi | (204)[M274.910] | 01.2012-12.2014 |
| MERCEDES BENZ | C200 2.0 | (205)[M274.920] | 01.2013- |
| MERCEDES BENZ | E180 1.6 | (213)[M274.910] | 01.2017- |
| MERCEDES BENZ | E200 2.0 | (212)[M274.920] | 01.2012- |
| MERCEDES BENZ | E200 2.0 | (213)[M274.920] | 01.2016- |
| MERCEDES BENZ | E200 2.0 | (238)[M274.920] | 01.2016- |
| MERCEDES BENZ | E200 2.0 4-Matic | (213)[M274.920] | 01.2016- |
| MERCEDES BENZ | E200 2.0 4-Matic | (238)[M274.920] | 01.2017- |
| MERCEDES BENZ | E250 2.0 | (212)[M274.920] | 01.2012- |
| MERCEDES BENZ | E250 2.0 | (213)[M274.920] | 01.2016- |
| MERCEDES BENZ | GLC200 2.0 | (253)[M274.920] | 01.2015- |
| MERCEDES BENZ | GLK200 2.0 | (204)[M274.920] | 01.2013- |
| MERCEDES BENZ | GLK250 2.0 | (204)[M274.920] | 01.2013- |
| MERCEDES BENZ | GLK250 2.0 4-Matic | (204)[M270.920] | 01.2013- |
| MERCEDES BENZ | SLC180 1.6 | (172)[M274.910] | 01.2016- |
| MERCEDES BENZ | SLC200 2.0 | (172)[M274.920] | 01.2016- |
| MERCEDES BENZ | SLC300 2.0 | (172)[M274.920] | 01.2016- |
| MERCEDES BENZ | SLK200 2.0 | (172)[M274.920] | 01.2015- |
| MERCEDES BENZ | SLK300 2.0 | (172)[M274.920] | 01.2015- |
Reference Information
0009060922 0009061503 0009064702 0125711099 0125711100 0125711119 0125711120 12090723 20101435OE 2010534.1 20781N 209257 209563 209563A 28-6942 4419 554289RIB 555.929.175 555.930.175 89215807 A0009060922 A0009061503 A0009064702 A0530S ALB7111 ALT10808 ALT125340 ALT2353CP ALTE805 ALTE844 BOS0125711099 CAL10534GS CGB-86942 DA2668 DRA1557 DRA1558 LRA03832 LRA3832 PRAE805 UD13165A UD17104AVideo/Publications
0008081503 Mercedes-Benz
0009060922 Mercedes-Benz
0125711099 Bosch show
0125711099OR +line
0125711100 Bosch show
0125711119 Bosch
0125711120 Bosch show
0125711120OR +line
0986081850 Bosch ruil
12090723 EuroTec
2253181752 DRI
286942 Elstock
555929175 PSH
555930175 PSH
931557 EDR
931558 EDR
A0008081503 Mercedes-Benz
A0009060922 Mercedes-Benz
DRA1557 Remy
DRA1558 Remy
LRA03832 Lucas
65-1737g
