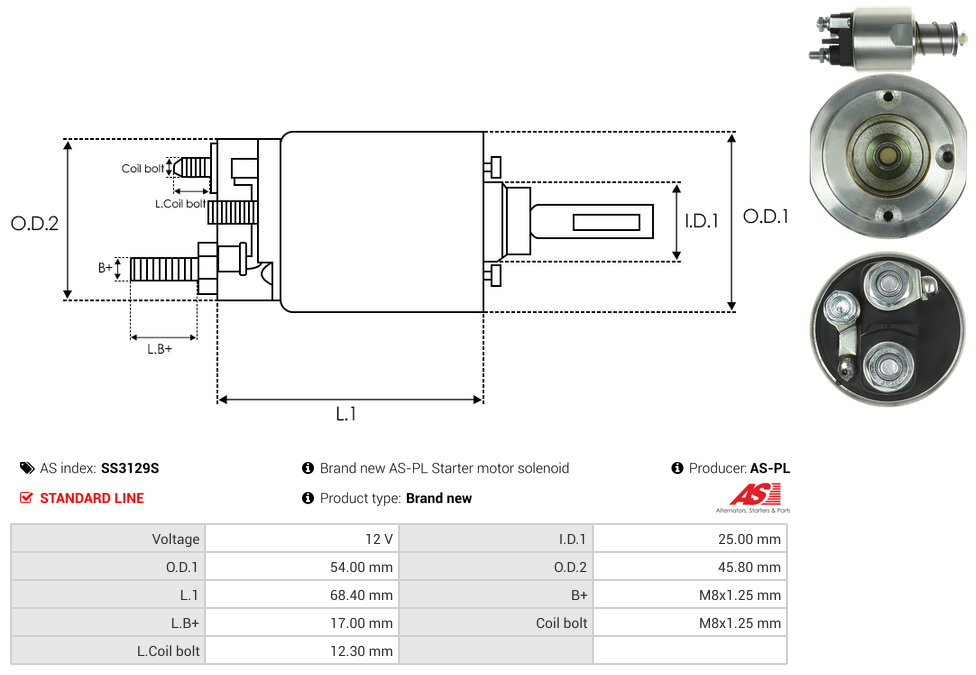

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 12.3 mm |
| Inside Diameter (I.D.1) | 25 mm |
| L.B+ | 17 mm |
| Length (L.1) | 68.4 mm |
| Outside Diameter (O.D.1) | 54 mm |
| Outside Diameter (O.D.2) | 45.8 mm |
| Type | Solenoid |
| Unit Type | VALEO |
| Voltage | 12 V |
Reference Information
SSV1047 UD51750SSVideo/Publications
SSV1047 438318 ESW22E3 UD51750SS S3179S RSM1410Add Your Number
