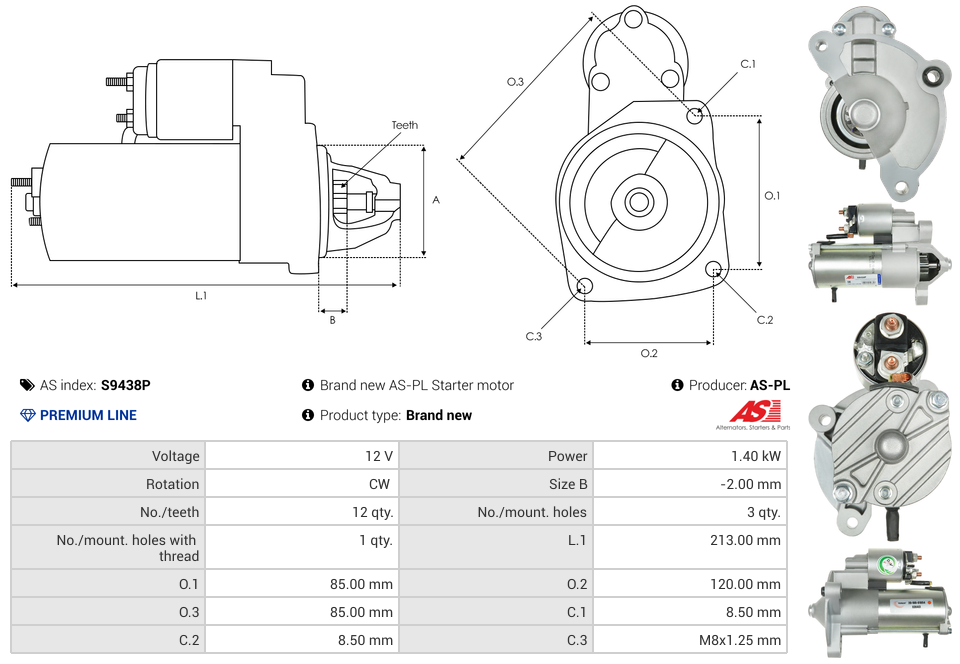

Specifications
Kilowatt | 1.4 kW |
Length (L.1) | 213 mm |
Mount Hole Center - Center (O.1) | 85 mm |
Mount Hole Center - Center (O.2) | 120 mm |
Mount Hole Center - Center (O.3) | 85 mm |
Mount Hole Diameter (C.1) | 8.5 mm |
Mount Hole Diameter (C.2) | 8.5 mm |
Mount Hole Diameter (C.3) | M8x1.25 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 1 qty |
No./Teeth | 12 qty |
Pinion at Rest (B) | -2 mm |
Rotation | CW |
Unit Type | FORD |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
TATA | Indica 1.4 GLX |
Reference Information
26024537A 26024537 6TLU-11000-BB 6014120.1 20450021OE STF2054 331233 280.502.123.230 CST14120GS 2.87215E+11 UD19657S 20-100-01054 255857Video/Publications
6TLU-11000-BB 20-100-01054 255857 CST14120GS 20450021OE 6014120.1 26024537 STF2054 280.502.123.230 UD19657S 26024537A 287215100102Add Your Number
