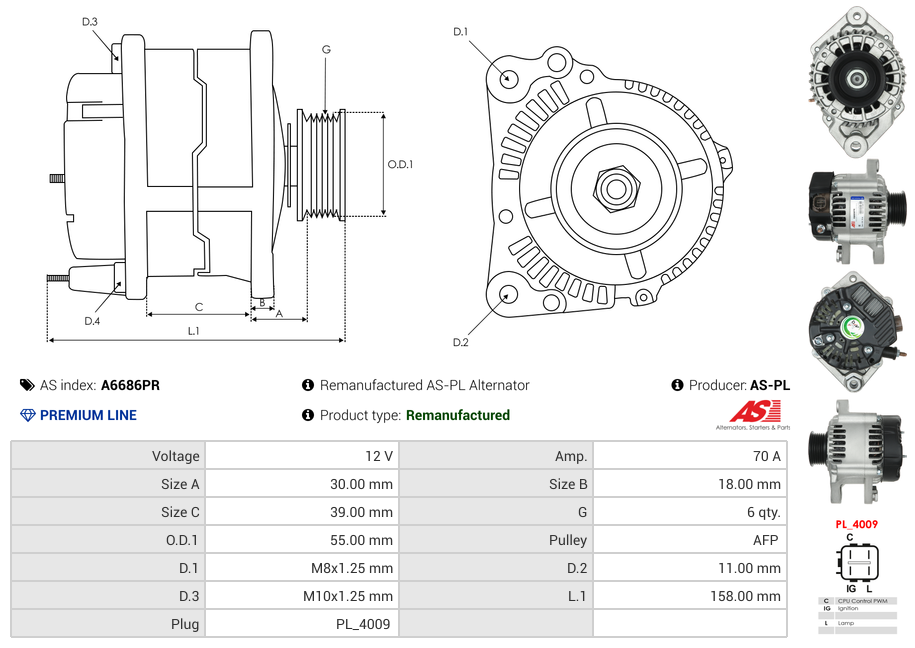

Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 18 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Grooves | 6 qty |
| Length (L.1) | 158 mm |
| Mount Inside Length or Pad Mount C-C (C) | 39 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 55 mm |
| Plug Code | PL_4009 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | CLUTCH |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAIHATSU | Sirion 1.0 | [1KR-FE] | 01.2005-06.2013 |
| SUBARU | Justy 1.0 | [1KR-FE] | 01.2007- |
Reference Information
CAL40362RS 102211-6051 J5116037 102211-6050 LRA03501 2040362.2 DRA1124 553720RI 5540783 CGB-86611 115.518.070.415 28-6611 ALTL349 20132263RC 27060-B1080 A12DE0208A2 AEK3501 LRA3501 446874 115.518.070.050 ALT30597 115.518.070.785 EAA-222950 40529 ALT6678 PRAL349Video/Publications
ALTL349 CGB-86611 AEK3501 DRA1124 PRAL349 CAL40362RS 40529 102211-6050 102211-6051 EAA-222950 28-6611 J5116037 553720RI LRA03501 LRA3501 115.518.070.050 115.518.070.415 115.518.070.785 20132263RC 2040362.2 27060-B1080 ALT30597Add Your Number
