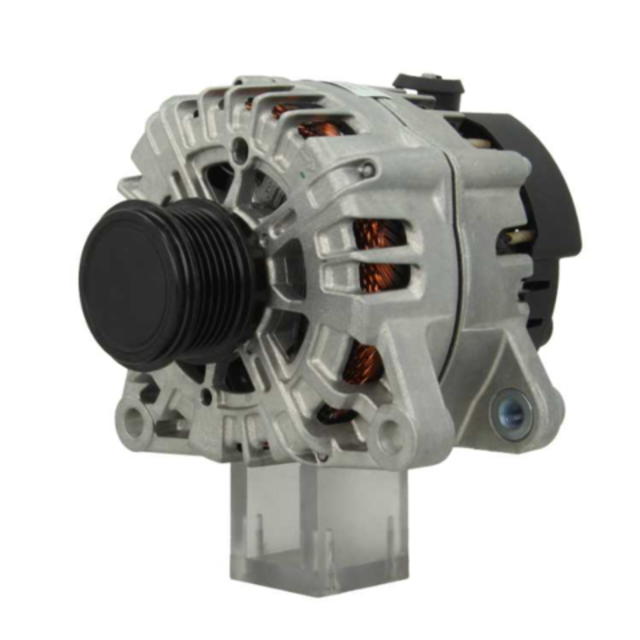

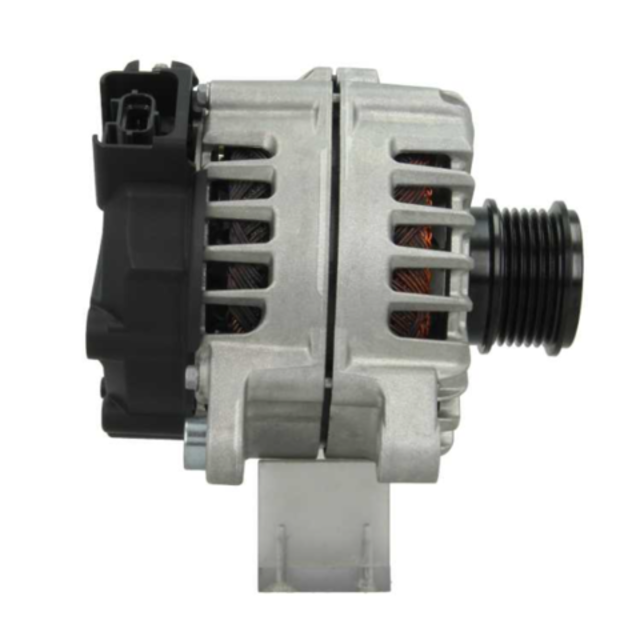

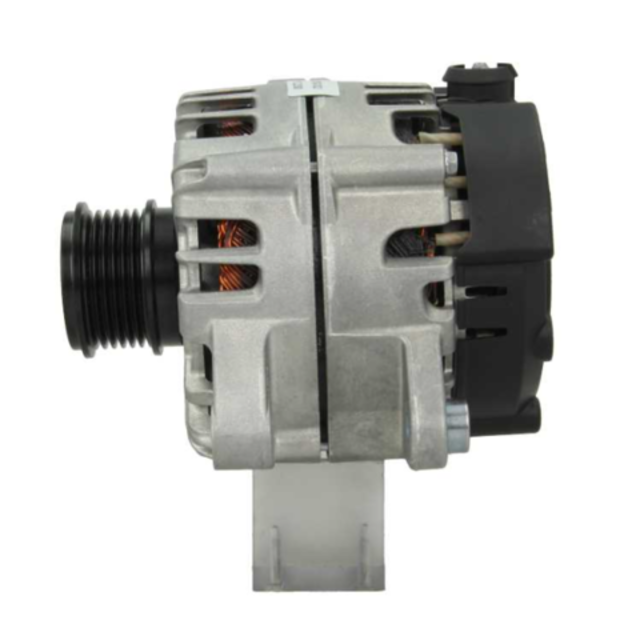

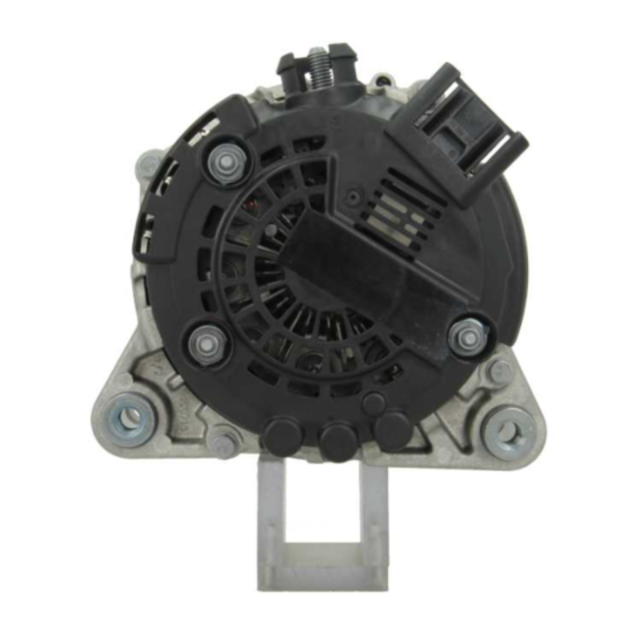

Brand new OEM VALEO Alternator
PREMIUM LINE
VALEO
Valeo
Price:
NZ$ 1,438.65 including GST
NZ$ 1,251.00 excluding GST
or four payments of $359.66
with
Learn More
each
A3569S
AGV-C6003
1
Associated Numbers
2193252352 DRI
287910 Elstock
40134 CEVAM
439972 Valeo
50104171 RE-EX
5341792 Ford show
595917230 PSH
617808 Valeo
726563 Valeo
CG25S032 Valeo show
CG25S055 Valeo
DRA1906 Remy
E1GT10300BB Ford show
LRA04301 Lucas
Specifications
| Amp | 235 A |
| Bottom Mounting Foot Width (B) | 21.5 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 180 mm |
| Mount Inside Length or Pad Mount C-C (C) | 47 mm |
| OEM Product | Yes |
| Plug Code | PL_3402 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 48.5 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Edge 2.0 TDCi AWD | [T8CC] | 08.2015-07.2018 |
| FORD | Edge 2.0 TDCi AWD | [T8CM] | 08.2015-07.2018 |
| FORD | Edge 2.0 TDCi Bi-Turbo AWD | [T9CE] | 08.2015-07.2018 |
| FORD | Edge 2.0 TDCi Bi-Turbo AWD | [T9CF] | 08.2015-07.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CI] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CJ] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CK] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CL] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CG] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CH] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CI] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CJ] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [UFCA] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [UFCB] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T7CI] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T7CJ] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T7CL] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CG] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CH] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CI] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CJ] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi Bi-Turbo | [T9CB] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi Bi-Turbo | [T9CC] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CK] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CL] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CG] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CH] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [UFCA] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [UFCB] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CK] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CL] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CG] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CH] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi Bi-Turbo | [T9CB] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi Bi-Turbo | [T9CC] | 01.2015-06.2018 |
Reference Information
UD18936A CG25S032 554681RIV 595.917.230.500 CAL15A19GS 40134 28-7910 5341792 E1GT-10300-BB LRA04301 LRA4301 2017991AOE 2015A19.1 ALV3547 595.917.230.505 440728 CGB-87910 CG25S055 617808 726563 DRA1906 DA3016 209314 AEG1348View your shopping basket or Browse other items in Alternators.
