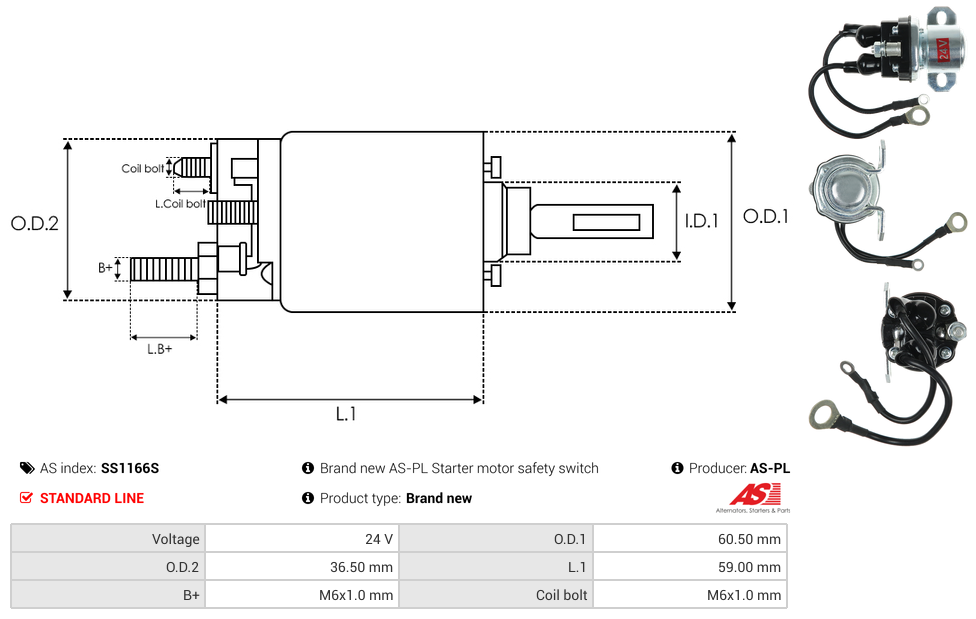

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M6x1.0 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M6x1.0 mm |
| Length (L.1) | 59 mm |
| Outside Diameter (O.D.1) | 60.5 mm |
| Outside Diameter (O.D.2) | 36.5 mm |
| Type | Slave Solenoid |
| Unit Type | DELCO |
| Voltage | 24 V |
Reference Information
054.000.032.030 SSD8784 10515814 11529310 22909006BN 11529910 36140-52000 A9241520010 SRL60600.0 67-1821 SOL2623 10546288 A0011529310 227298 335383 CRL60600AS 10514696 6701-2920 9241520010 A0011529910 11524410 UD45863SS ZM409 10518784 ZM3409 227222 SND1521 A0011524410Video/Publications
SSD8784 054.000.032.030 10515814 22909006BN 36140-52000 A9241520010 SRL60600.0 10461470 67-1821 S1240S 8200004 10546288 0011524410 A0011529310 227298 335383 CRL60600AS S1121 6701-2920 9241520010 A0011529910 10479626 0011529310 UD45863SS 0011529910 8200851 ZM409 S1119 10518784 ZM3409 8200138 19070039 8200777 227222 10479650 SND1521 8200297 S1035 8200474 A0011524410 8200296Add Your Number
