Information
Specifications

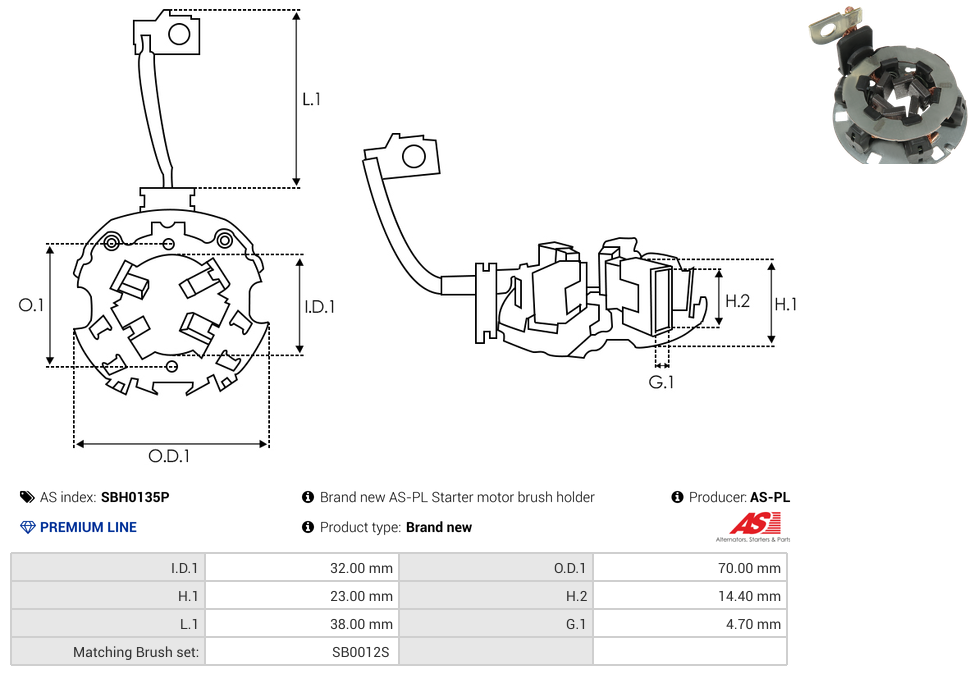

| Brush Holder Width (G.1) | 4.7 mm |
| Height (H.1) | 23 mm |
| Height (H.2) | 14.4 mm |
| Inside Diameter (I.D.1) | 32 mm |
| Inside Diameter (I.D.1) | 32 mm |
| Length (L.1) | 38 mm |
| Matching Brush set: | SB0012S |
| Outside Diameter (O.D.1) | 70 mm |
| Unit Type | BOSCH |
Reference Information
UD03576SBH 1004338198 1004338141 1004338196 1004338195 7.7573.1 SHB1148 1004338139 1004338149Video/Publications
S0770S UD03576SBH S0690S 0001170629 7.7573.1 SHB1148 0001170605 0001170628 1004338139 0001170625 1004338149 0001170604 0001172407 1004338198 1004338141 1004338196 1004338195Add Your Number
