Specifications
Kilowatt | 5.5 kW |
Length (L.1) | 318 mm |
Mount Hole Center - Center (O.1) | 127 mm |
Mount Hole Center - Center (O.2) | 90 mm |
Mount Hole Center - Center (O.3) | 90 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
Mount Hole Diameter (C.3) | 11 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |

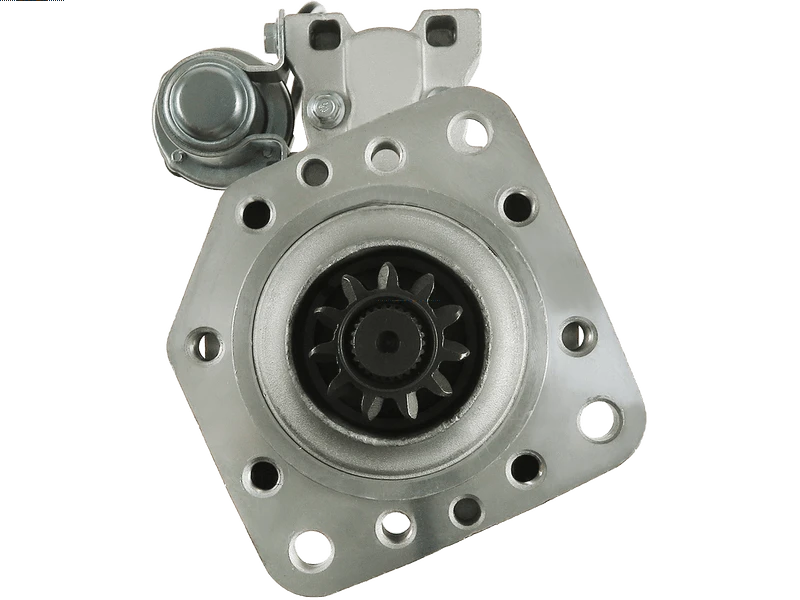

Pinion at Rest (B) | 47 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | MITSUBISHI |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
DEUTZ | Engine |
Reference Information
M9T63271 UD19647S STR71304 M009T63271 S512968 151.556.113.130 WOOSTR71304Video/Publications
M009T63271 M9T63271 UD19647SAdd Your Number
