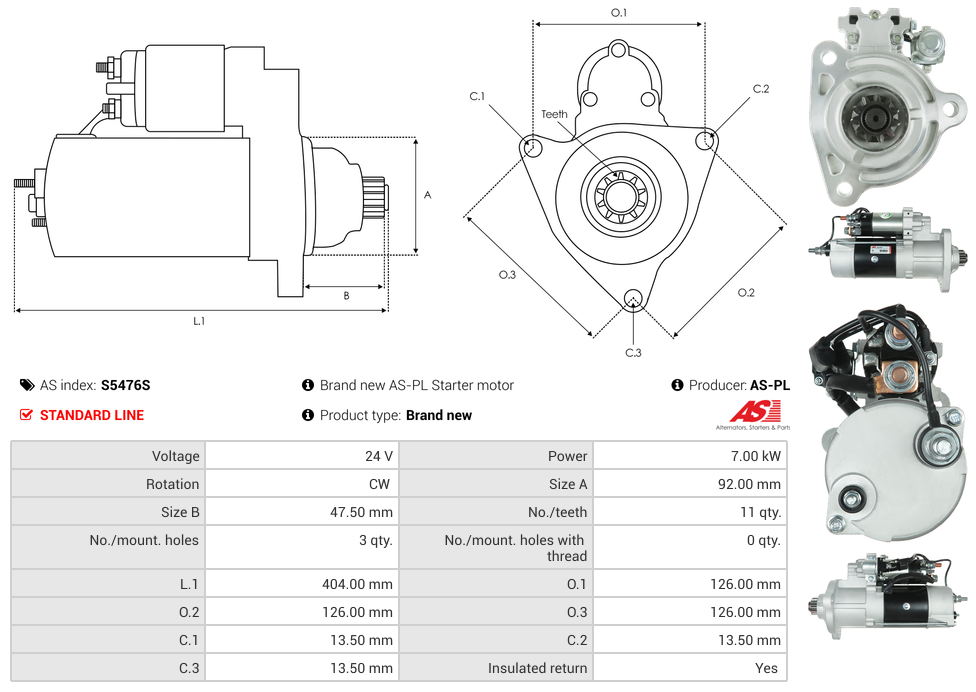

Specifications
| Insulated Earth | Yes |
| Kilowatt | 7 kW |
| Length (L.1) | 404 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 47.5 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CLAAS | Various Models | ||
| HOWO | Various Models | ||
| MAN | Various Models |
Reference Information
M9T83279ZZ9 551.561.113.371 255963M 551.561.113.370 LRS04360 UD19654S M009T83279ZZ9 19910260 336591 MITM9T83279 CST35670GS M009T83279 STM3279 51262017235 MAV376700 M9T83279AM 20437076OE 45-5522 M009T83279AM M9T83279 51.26201-9235 STR5442 LRS4360 51.26201-7214 6035670.1Video/Publications
M009T83279 M9T83279 UD19654S MITM9T83279 255963M 551.561.113.370 551.561.113.371 CST35670GS 20437076OE 6035670.1 0019910260 51262017235 M009T83279AM M9T83279AM STM3279Add Your Number
