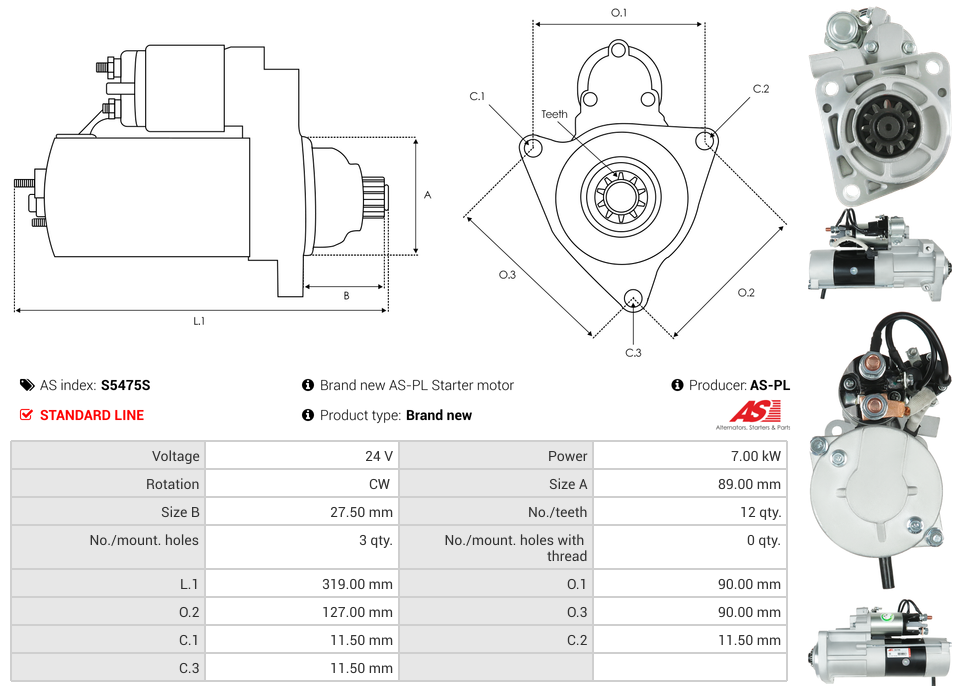

Specifications
Kilowatt | 7 kW |
Length (L.1) | 319 mm |
Mount Hole Center - Center (O.1) | 90 mm |
Mount Hole Center - Center (O.2) | 127 mm |
Mount Hole Center - Center (O.3) | 90 mm |
Mount Hole Diameter (C.1) | 11.5 mm |
Mount Hole Diameter (C.2) | 11.5 mm |
Mount Hole Diameter (C.3) | 11.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 12 qty |
Pinion at Rest (B) | 27.5 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | MITSUBISHI |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
DEUTZ | Engine |
Reference Information
UD19650SVideo/Publications
