Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 352.21 including GST
NZ$ 306.27 excluding GST
or four payments of $88.05
with
Learn More
each
S4075S
2

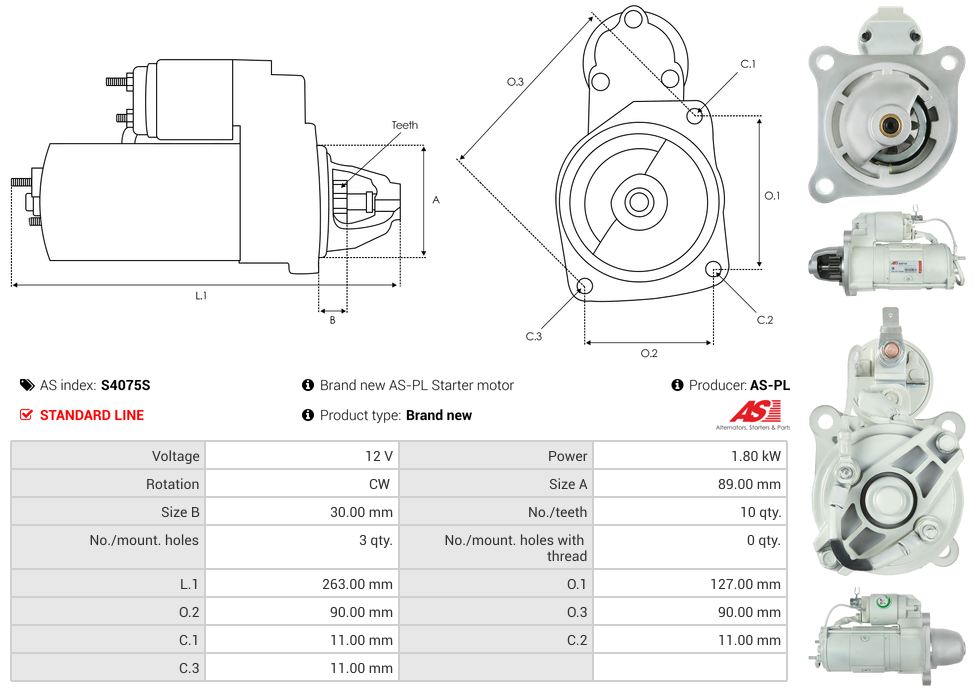

Specifications
| Kilowatt | 1.80 kW |
| Length (L.1) | 263 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | LUCAS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| PERKINS | Engine 1.8 | [4.108VA] | |
| VOLVO PENTA | Engine | [MD22] | 01.1990- |
Reference Information
| 112277 | CARGO |
| 20405211OE | REAL |
| 25-2143 | ELSTOCK |
| 254300P | KUHNER |
| 2873B058 | PERKINS |
| 2873B059 | PERKINS |
| 331791 | LOGISTIK |
| 42790141 | LUCAS |
| 47920034 | PERKINS |
| 47920059 | LUCAS |
| 47920141 | LUCAS |
| 54292967 | LUCAS |
| 6025112.1 | SANDO |
| 6237901141 | LUCAS |
| 63226920 | MAGNETI MARELLI |
| 700.506.103 | PSH |
| 700.506.103.200 | PSH |
| 700.506.103.360 | PSH |
| 859722 | VOLVO |
| 91-17-8907 | WILSON |
| CST25112GS | CASCO |
| DRS0529 | DELCO |
| DS1639 | DELCO |
| F032112277 | CARGO |
| LRS01339 | LUCAS |
| LRS1339 | LUCAS |
| NSB418 | LUCAS |
| PRE20550101 | WOODAUTO |
| PRSS975 | 3EFFE |
| S12VA0387 | SIDAT |
| S12VA0387A2 | SIDAT |
| S134.997 | PSH |
| S145.738 | PSH |
| S4075S | AS-PL |
| STL2277 | KRAUF |
| STR9786 | ELECTROLOG |
| STRS975 | 3EFFE |
| UD18926S | AS-PL |
Video/Publications
