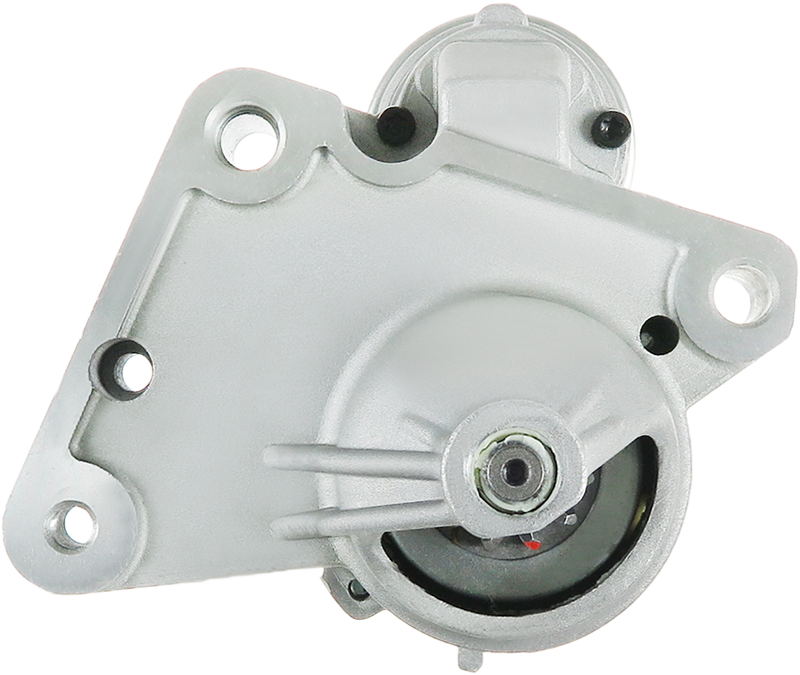

S3227S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 295.04 including GST

NZ$ 256.56 excluding GST
each
S3227S
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

Kilowatt1.4 kW
Length (L.1)201 mm
Mount Hole Center - Center (O.1)123.5 mm
Mount Hole Center - Center (O.2)29 mm
Mount Hole Center - Center (O.3)46.5 mm
Mount Hole Center - Center (O.4)91 mm
Mount Hole Diameter (C.1)9.5 mm
Mount Hole Diameter (C.2)M8x1.25 mm
Mount Hole Diameter (C.3)M8x1.25 mm
Mount Hole Diameter (C.4)9.5 mm
No./Mount holes4 qty
No./Mount holes with thread2 qty
No./Teeth11 qty
Pinion at Rest (B)14 mm
RotationCW
Unit TypeVALEO
Voltage12 V
Make Model Type Year
CITROEN Berlingo 1.5 BlueHDi 100 06.2018-
CITROEN Berlingo 1.5 BlueHDi 130 03.2018-
CITROEN Berlingo 1.5 BlueHDi 75 06.2018-
CITROEN Berlingo 1.6 BlueHDi 100 [BHY(DV6FD)] 12.2014-
CITROEN Berlingo 1.6 BlueHDi 75 [9HN(DV6ETED)] 04.2015-
CITROEN Berlingo 1.6 BlueHDi 75 [BHW(DV6FE)] 04.2015-
CITROEN Berlingo 1.6 HDi [9HN(DV6ETED4)] 04.2008-
CITROEN Berlingo 1.6 HDi [9HT(DV6BTED4)] 04.2008-
CITROEN Berlingo 1.6 HDi [9HT(DV6BUTED4)] 04.2008-
CITROEN Berlingo 1.6 HDi [9HW(DV6BTED4)] 07.2005-
CITROEN Berlingo 1.6 HDi [9HX(DV6ATED4)] 07.2005-
CITROEN Berlingo 1.6 HDi [DV6B] 07.2005-
CITROEN Berlingo 1.6 HDi 4x4 [9HF(DV6DTED)] 02.2012-
CITROEN Berlingo 1.6 HDi 90 [9HF(DV6DTED)] 07.2010-
CITROEN Berlingo 1.6 HDi 90 [9HP(DV6DTED)] 07.2010-
CITROEN Berlingo 1.6 HDi 90 [9HX(DV6ATED4)] 07.2010-
CITROEN Berlingo 1.6 HDi 92 [9HJ(DV6DTEDM)] 07.2010-
CITROEN Berlingo Van 1.6 HDi 4x4 [9HN(DV6ETED)] 02.2012-
CITROEN C1 1.4 HDi [DV4D] 06.2005-
CITROEN C2 1.4 HDi [8HX(DV4TD)] 04.2009-
CITROEN C2 1.4 HDi [8HZ(DV4TD)] 09.2003-
CITROEN C3 1.4 HDi [8HX(DV4TD)] 02.2002-
CITROEN C3 1.4 HDi [8HX(DV4TD)] 04.2004-
CITROEN C3 1.4 HDi 16V [8HY(DV4TED4)] 02.2002-
CITROEN C3 1.5 BlueHDi 100 [YHY(DV5RD)] 05.2018-
CITROEN C3 1.6 HDi [9HP(DV6DTED)] 11.2009-
CITROEN C3 1.6 HDi [9HX(DV6ATED4)] 10.2005-
CITROEN C3 1.6 HDi [9HX(DV6ATED4)] 11.2009-
CITROEN C3 1.6 HDi 115 [9HD(DV6C)] 09.2012-
CITROEN C3 1.6 HDi 16V [9HX(DV6ATED4)] 10.2005-
CITROEN C3 1.6 HDi 16V [9HZ(DV6TED4)] 09.2005-
CITROEN C3 1.6 HDi BlueHDi 110 [BHY(DV6FD)] 07.2016-
CITROEN C3 1.6 HDi BlueHDi 75 [BHW(DV6FE)] 07.2016-
CITROEN C3 1.6 HDi Picasso [9HP(DV6DTED)] 07.2010-
CITROEN C4 1.6 BlueHDi 100 [BHY(DV6FD)] 07.2014-
CITROEN C4 1.6 HDi [9HP(DV6DTED)] 11.2009-
CITROEN C4 1.6 HDi [9HR(DV6C)] 11.2009-
CITROEN C4 1.6 HDi [9HX(DV6ATED4)] 11.2004-
CITROEN C4 1.6 HDi [9HY(DV6ATED4)] 11.2004-
CITROEN C4 1.6 HDi [9HY(DV6TED4)] 07.2006-
CITROEN C4 1.6 HDi [9HY(DV6TED4)] 11.2004-
CITROEN C4 1.6 HDi [9HZ(DV6ATED4)] 11.2004-
CITROEN C4 1.6 HDi [9HZ(DV6TED4)] 07.2006-
CITROEN C4 1.6 HDi [9HZ(DV6TED4)] 11.2004-
CITROEN C4 1.6 HDi 115 [9HC(DV6C)] 09.2013-
CITROEN C4 1.6 HDi 115 [9HR(DV6C)] 07.2012-
CITROEN C4 1.6 HDi 115 [BHX(DV6FC)] 09.2013-
CITROEN C4 1.6 HDi 115 Picasso [9HC(DV6C)] 02.2013-
CITROEN C4 1.6 HDi 115 Picasso [BHX(DV6FC)] 02.2013-
CITROEN C4 1.6 HDi 90 [9HP(DV6DTED)] 09.2013-
CITROEN C4 1.6 HDi 90 Picasso [9HP(DV6DTED)] 02.2013-
CITROEN C4 1.6 HDi Picasso [9HY(DV6TED4)] 02.2007-
CITROEN C4 1.6 HDi Picasso [9HZ(DV6TED4)] 02.2007-
CITROEN C4 Cactus 1.6 BlueHDi 100 [BHY(DV6FD)] 09.2014-
CITROEN C4 Cactus 1.6 HDi 90 [9HP(DV6DTED)] 09.2014-
CITROEN C5 1.6 HDi [9HY(DV6TED4)] 09.2004-
CITROEN C5 1.6 HDi [9HZ(DV6TED4)] 09.2004-
CITROEN C-Elysee 1.5 BlueHDi 100 05.2018-
CITROEN C-Elysee 1.6 HDi [9HJ(DV6DTEDM)] 11.2012-
CITROEN C-Elysee 1.6 HDi [9HP(DV6DTED)] 11.2012-
CITROEN Dispatch 1.5 BlueHDi 100 06.2018-
CITROEN Dispatch 1.6 HDi BlueHDi 115 [BHX(DV6FCU)] 04.2016-
CITROEN Dispatch 1.6 HDi BlueHDi 95 [BHS(DV6FDU)] 04.2016-
CITROEN Dispatch 1.6 HDi BlueHDi 95 [BHV(DV6FDU)] 04.2016-
CITROEN DS3 1.4 HDi 70 [8HR(DV4C)] 04.2010-
CITROEN DS3 1.6 HDi 90 [9HP(DV6DTED)] 01.2013-
CITROEN DS4 1.6 HDi 110 [9HR] 04.2011-
CITROEN DS4 1.6 HDi 110 [9HR(DV6C)] 04.2011-
CITROEN DS4 1.6 HDi 115 [9HL(DV6C)] 08.2012-
CITROEN Jumpy 1.6 BlueHDi 115 [BHX(DV6FCU)] 04.2016-
CITROEN Jumpy 1.6 BlueHDi 95 [BHV(DV6FDU)] 04.2016-
CITROEN Jumpy 1.6 HDi [9HU(DV6UTED4)] 01.2007-
CITROEN Jumpy 1.6 HDi 90 [9HH(DV6DUM)] 01.2007-
CITROEN Jumpy 1.6 HDi 90 [9HM(DV6UC)] 01.2007-
CITROEN Jumpy 1.6 HDi BlueHDi 95 [BHS(DV6FDU)] 09.2016-
CITROEN Jumpy 1.6 HDi BlueHDi 95 [BHV(DV6FDU)] 09.2016-
CITROEN Nemo 1.4 HDi [8HS(DV4TD)] 02.2008-
CITROEN Nemo 1.4 HDi [8HS(DV4TED)] 04.2009-
CITROEN SpaceTourer 1.6 BlueHDi 115 [BHX(DV6FC)] 04.2016-
CITROEN SpaceTourer 1.6 BlueHDi 95 [BHV(DV6FDU)] 04.2016-
CITROEN SpaceTourer 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2016-
CITROEN Xsara 1.4 HDi [8HX(DV4TD)] 01.2003-03.2005
CITROEN Xsara 1.4 HDi [8HX(DV4TD)] 01.2003-08.2005
CITROEN Xsara 1.6 HDi Picasso [9HX(DV6ATED4)] 09.2005-
CITROEN Xsara 1.6 HDi Picasso [9HY(DV6TED4)] 05.2004-
CITROEN Xsara 1.6 HDi Picasso [9HZ(DV6TED4)] 05.2004-
FIAT Scudo 1.6 Multijet [9H07(DV6UC)] 01.2007-
FIAT Scudo 1.6 Multijet [9H07(DV6UC)] 02.2011-
FIAT Scudo 1.6 Multijet [9HM(DV6UC)] 01.2007-
FIAT Scudo 1.6 Multijet [9HM(DV6UC)] 02.2011-
FIAT Scudo 1.6 Multijet [9HU] 01.2007-
PEUGEOT 1007 1.4 HDi [8HX(DV4TD)] 04.2005-
PEUGEOT 1007 1.4 HDi [8HZ(DV4TD)] 04.2005-
PEUGEOT 107 1.4 HDi [8HT(DV4TD)] 06.2005-
PEUGEOT 2008 1.4 HDi [8HR(DV4C)] 06.2013-
PEUGEOT 2008 1.6 HDi [9HP(DV6DTED)] 03.2013-
PEUGEOT 206 1.4 HDi [8HX(DV4TD)] 07.2002-
PEUGEOT 206 1.4 HDi [8HX(DV4TD)] 09.2001-03.2009
PEUGEOT 206 1.4 HDi [8HX(DV4TD)] 09.2002-02.2007
PEUGEOT 206 1.4 HDi [8HZ(DV4TD)] 09.2001-03.2009
PEUGEOT 206 1.4 HDi eco [8HX(DV4TD)] 09.2001-
PEUGEOT 206 1.4 HDi eco [8HZ(DV4TD)] 09.2001-
PEUGEOT 206 1.4 HDi eco 70 [8HZ(DV4TD)] 09.2008-
PEUGEOT 206 1.6 HDi [9HZ(DV6TED4)] 04.2005-
PEUGEOT 206 1.6 HDi FAP [9HY(DV6TED4)] 05.2004-
PEUGEOT 206 1.6 HDi FAP [9HZ(DV6TED4)] 05.2004-
PEUGEOT 207 1.4 HDi [8HR(DV4C)] 02.2006-
PEUGEOT 207 1.4 HDi [8HZ(DV4TD)] 02.2006-
PEUGEOT 207 1.4 HDi [8HZ(DV4TD)] 04.2007-
PEUGEOT 207 1.6 HDi [9HP(DV6DTED)] 11.2009-
PEUGEOT 207 1.6 HDi [9HV(DV6ATED4)] 02.2006-
PEUGEOT 207 1.6 HDi [9HV(DV6TED4)] 02.2006-
PEUGEOT 207 1.6 HDi [9HX(DV6ATED4)] 02.2006-
PEUGEOT 207 1.6 HDi [9HX(DV6ATED4)] 04.2007-
PEUGEOT 207 1.6 HDi [9HX(DV6ATED4)] 06.2007-
PEUGEOT 207 1.6 HDi [9HY(DV6TED4)] 02.2006-
PEUGEOT 207 1.6 HDi [9HZ(DV6TED4)] 02.2006-
PEUGEOT 207 1.6 HDi [9HZ(DV6TED4)] 02.2007-
PEUGEOT 208 1.4 HDi [8HP(DV4C)] 03.2012-
PEUGEOT 208 1.4 HDi [8HR(DV4C)] 03.2012-
PEUGEOT 208 1.4 HDi [8HR(DV4C)] 10.2012-
PEUGEOT 208 1.6 BlueHDi 75 [9HK(DV6ETEDM)] 01.2013-
PEUGEOT 208 1.6 BlueHDi 75 [BHW(DV6FE)] 01.2013-
PEUGEOT 208 1.6 HDi [9HP(DV6DTED)] 03.2012-
PEUGEOT 208 1.6 HDi [9HP(DV6DTED)] 03.2014-
PEUGEOT 301 1.5 D 05.2018-
PEUGEOT 301 1.6 HDi 92 [9HF(DV6DTED)] 11.2012-
PEUGEOT 307 1.4 HDi [8HX(DV4TD)] 10.2001-
PEUGEOT 307 1.4 HDi [8HZ(DV4TD)] 03.2002-
PEUGEOT 307 1.4 HDi [8HZ(DV4TD)] 10.2001-
PEUGEOT 307 1.6 HDi FAP [9HY(DV6TED4)] 02.2004-
PEUGEOT 307 1.6 HDi FAP [9HZ(DV6TED4)] 02.2004-
PEUGEOT 307 SW 1.4 HDi 70 [8HZ(DV4TD)] 03.2002-01.2005
PEUGEOT 308 1.5 BlueHDi 100 [YHY(DV5RD)] 05.2018-
PEUGEOT 308 1.6 HDi [9HC(DV6C)] 09.2013-
PEUGEOT 308 1.6 HDi [9HP(DV6DTED)] 11.2009-
PEUGEOT 308 1.6 HDi [9HZ(DV6ATED4)] 09.2007-
PEUGEOT 308 1.6 HDi [BHZ(DV6FC)] 09.2013-
PEUGEOT 308 SW 1.5 BlueHDi 100 [YHY(DV5RD)] 04.2018-
PEUGEOT 308 SW 1.6 HDi [9HD(DV6C)] 03.2014-
PEUGEOT 308 SW 1.6 HDi 03.2014-
PEUGEOT 380 SW 1.6 HDi [9HP(DV6DTED)] 11.2009-
PEUGEOT 407 1.6 HDi FAP [9HY(DV6TED4)] 05.2004-
PEUGEOT 407 1.6 HDi FAP [9HZ(DV6TED4)] 05.2004-
PEUGEOT 407 2.0 HDi 11.2004-10.2007
PEUGEOT 407 SW 2.0 HDi [RHL(DW10BTED4)] 11.2004-
PEUGEOT Bipper 1.4 HDi [8HS(DV4TD)] 02.2008-
PEUGEOT Bipper 1.4 HDi [8HS(DV4TD)] 04.2008-
PEUGEOT Expert 1.6 BlueHDi 115 [BHS(DV6FDU)] 04.2016-
PEUGEOT Expert 1.6 BlueHDi 115 [BHV(DV6FDU)] 04.2016-
PEUGEOT Expert 1.6 BlueHDi 115 [BHX(DV6FC)] 04.2016-
PEUGEOT Expert 1.6 BlueHDi 175 [BHX(DV6FCU)] 04.2016-
PEUGEOT Expert 1.6 BlueHDi 95 [BHV(DV6FDU)] 04.2016-
PEUGEOT Expert 1.6 HDi [9HU(DV6UTED4)] 01.2007-
PEUGEOT Expert 1.6 HDi 90 [9HH(DV6DUM)] 01.2007-
PEUGEOT Expert 1.6 HDi 90 [9HM(DV6UC)] 01.2007-
PEUGEOT Expert 1.6 HDi 90 01.2007-
PEUGEOT Expert 1.6 HDi BlueHDi 95 [BHV(DV6FDU)] 09.2016-
PEUGEOT Expert 1.6 HDi Tepee [9HH(DV6DUM)] 01.2007-
PEUGEOT Expert 1.6 HDi Tepee [9HM(DV6UC)] 01.2007-
PEUGEOT Expert 1.6 HDi Tepee [9HU(DV6UTED4)] 01.2007-
PEUGEOT Partner 1.6 BlueHDi 100 [BHY(DV6FD)] 04.2015-
PEUGEOT Partner 1.6 BlueHDi 120 [BHZ(DV6FC)] 04.2015-
PEUGEOT Partner 1.6 BlueHDi 75 [BHW(DV6FE)] 01.2015-
PEUGEOT Partner 1.6 BlueHDi Tepee [BHW(DV6FE)] 01.2015-
PEUGEOT Partner 1.6 BlueHDi Tepee [BHY(DV6FD)] 12.2014-
PEUGEOT Partner 1.6 BlueHDi Tepee [BHZ(DV6FC)] 12.2014-
PEUGEOT Partner 1.6 HDi [9HF(DV6DTED)] 03.2013-
PEUGEOT Partner 1.6 HDi [9HJ(DV6DTEDM)] 04.2010-
PEUGEOT Partner 1.6 HDi [9HP(DV6DTED)] 04.2010-
PEUGEOT Partner 1.6 HDi [9HS(DV6TED4BU)] 04.2008-
PEUGEOT Partner 1.6 HDi [9HT(DV6BTED4)] 01.2009-
PEUGEOT Partner 1.6 HDi [9HT(DV6BTED4)] 04.2008-
PEUGEOT Partner 1.6 HDi [9HW(DV6BTED4)] 02.2006-
PEUGEOT Partner 1.6 HDi [9HW(DV6BTED4)] 04.2008-
PEUGEOT Partner 1.6 HDi [9HX(DV6ATED4)] 01.2009-
PEUGEOT Partner 1.6 HDi [9HX(DV6ATED4)] 02.2006-
PEUGEOT Partner 1.6 HDi [9HX(DV6ATED4)] 04.2008-
PEUGEOT Partner 1.6 HDi [9HX(DV6ATED4)] 04.2010-
PEUGEOT Partner 1.6 HDi 75 [9HK(DV6ETEDM)] 08.2005-07.2008
PEUGEOT Partner 1.6 HDi BlueHDi 110 4x4 [BHY(DV6FD)] 04.2015-
PEUGEOT Partner 1.6 HDi Tepee [9HF(DV6DTED)] 03.2013-
PEUGEOT Partner 1.6 HDi Tepee [9HP(DV6DTED)] 04.2010-
PEUGEOT Partner 1.6 HDi Tepee [9HT(DV6BTED4)] 04.2008-
PEUGEOT Partner 1.6 HDi Tepee [9HV(DV6TED4)] 04.2008-
PEUGEOT Partner 1.6 HDi Tepee [9HW(DV6BTED4)] 04.2008-
PEUGEOT Partner 1.6 HDi Tepee [9HX(DV6ATED4)] 04.2008-
PEUGEOT Partner 1.6 HDi Tepee [9HX(DV6ATED4)] 04.2010-
PEUGEOT Rifter 1.5 BlueHDi 100 09.2018-
PEUGEOT Rifter 1.5 BlueHDi 130 09.2018-
PEUGEOT Traveller 1.6 BlueHDi 115 04.2016-
PEUGEOT Traveller 1.6 BlueHDi 95 04.2016-
TOYOTA Aygo 1.4 HDi [2WZTV] 07.2005-08.2010
CST15108GS 201000 5802-Y6 5802-Y5 9688512780 5802-Y4 9664016980 101260M 101260V 9688268480 101260R 6015108 455982 28100-YV010 28100-YV011 9801667580 M000T93581 190549 9646679980 220.519.114.502 5802A2 220068 220387 6015108.1 95526662 TS14E110 5802M4 STR00144 438133 5802Y4 5802Y5 5802Y6 5802AZ 5802-FP 838020 5802-AZ STR0064 5802-FG 9663528880 5802-FH 101260 9637813680 20479801OE 3640319 726862 UD19445S 9640825280 5802FP M0T93581 CST15108AS 5802FG 5802FH
455982 838020 190549 438133 28100-YV011 28100-YV010 5802-Y5 5802Y5 5802-Y4 5802Y4 5802-FP 5802FP 5802-FH 5802FH 5802-FG 5802FG 5802-AZ 5802AZ 9801667580 95526662 3640319 9688512780 9637813680 726862 201000 6015108.1 6015108.0 20479801OE 220068 CST15108GS CST15108AS 220.519.114.502 101260V 101260R 101260M TS14E110 UD19445S 220387
