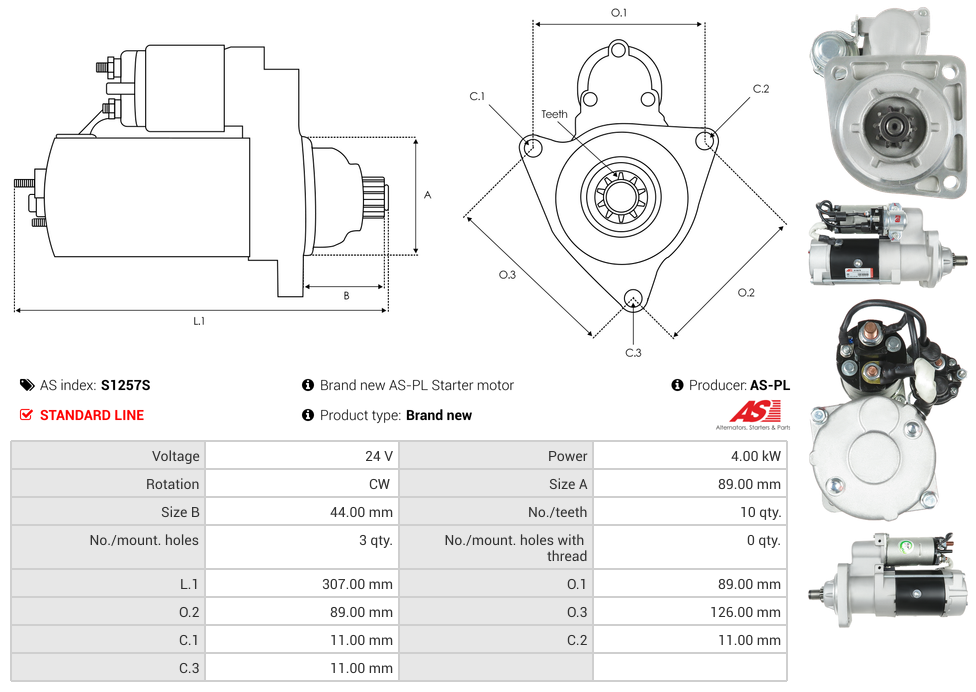

Specifications
Kilowatt | 4 kW |
Length (L.1) | 307 mm |
Mount Hole Center - Center (O.1) | 89 mm |
Mount Hole Center - Center (O.2) | 89 mm |
Mount Hole Center - Center (O.3) | 126 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
Mount Hole Diameter (C.3) | 11 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 44 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | DELCO |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
VW | Worker 17-250E | [ISBE6] | 01.2003-12.2009 |
VW | Worker 24-250E | [ISBE6] | 01.2003-06.2009 |
VW | Worker 8-150E | [ISBE4] | 01.2003-06.2009 |
VW | Worker 9-150E | [ISBE4] | 01.2003-06.2009 |
Reference Information
301.504.103.030 STP2292 2R0911023H 2R0911023D UD14199S 8200292 2W0911023C REM8200292 201-29210Video/Publications
2R0911023H 201-29210 STP2292 2R0911023D 301.504.103.030 REM8200292 2W0911023C UD14199SAdd Your Number
