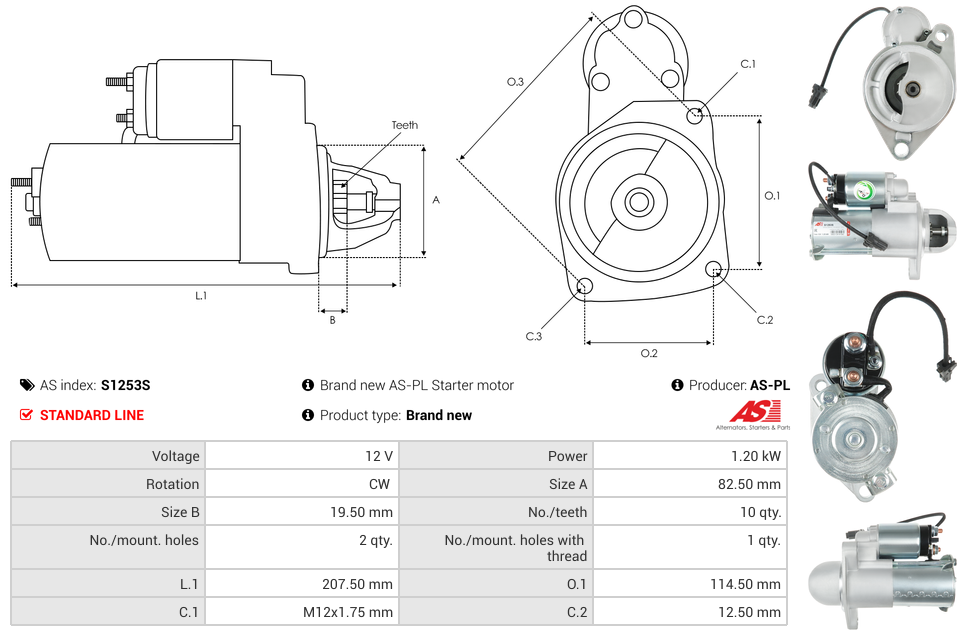

Specifications
Kilowatt | 1.2 kW |
Length (L.1) | 207.5 mm |
Mount Hole Center - Center (O.1) | 114.5 mm |
Mount Hole Diameter (C.1) | M12x1.75 mm |
Mount Hole Diameter (C.2) | 12.5 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 1 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 19.5 mm |
Rotation | CW |
Spigot Diameter (A) | 82.5 mm |
Unit Type | DELCO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CHEVROLET | Captiva 2.4 |
Reference Information
UD19286S S1081R 8000953Video/Publications
UD19286S S1081R 8000953Add Your Number
