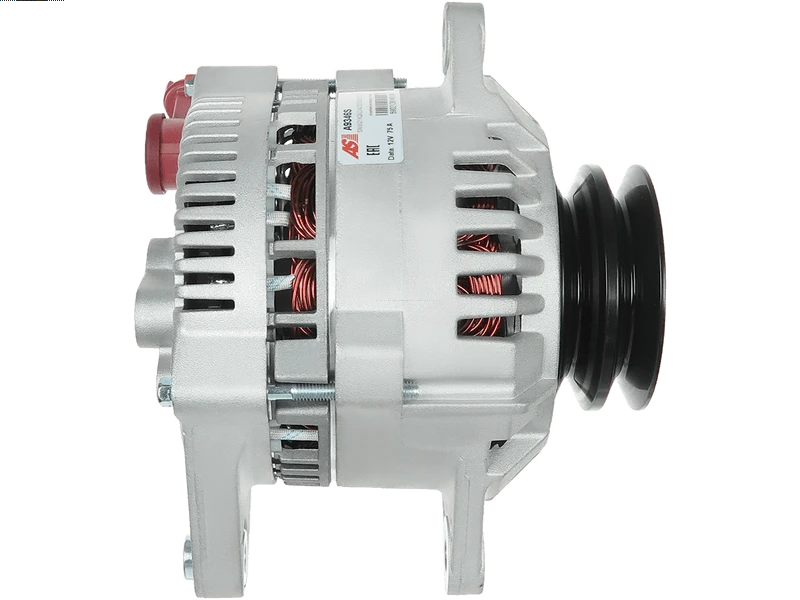

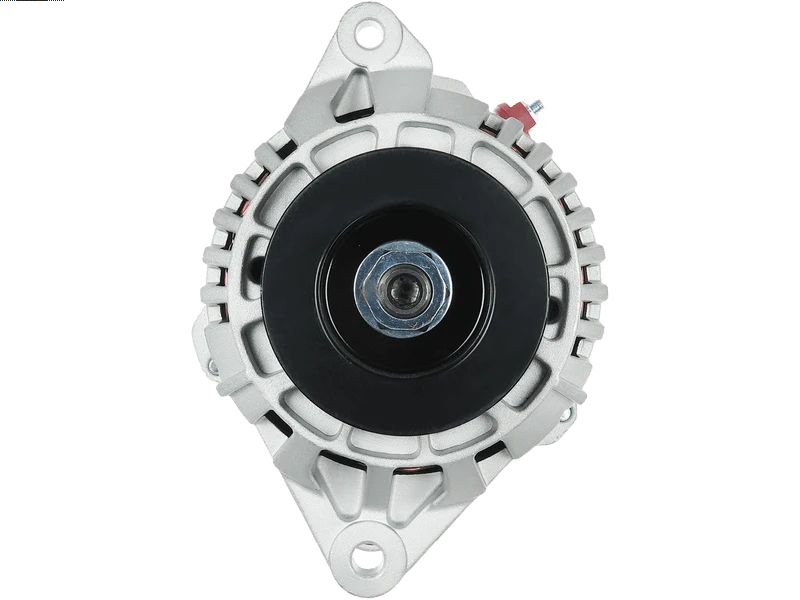

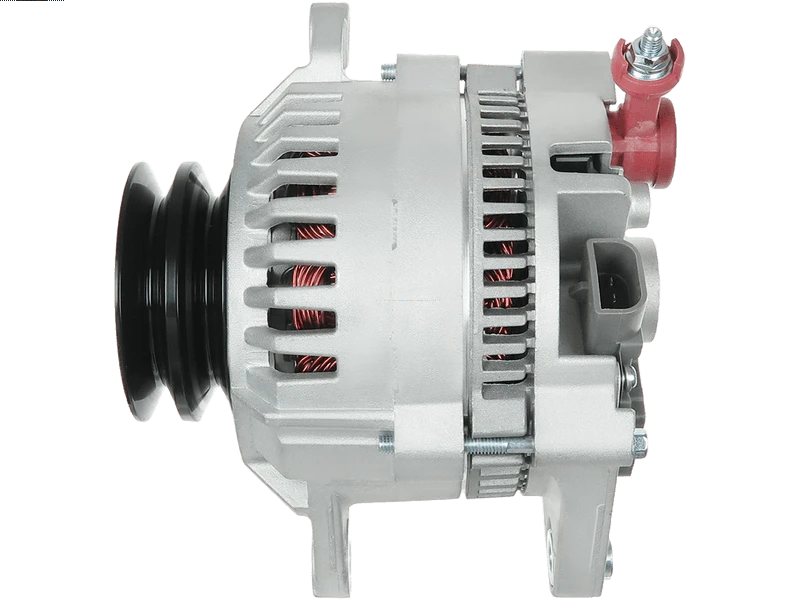

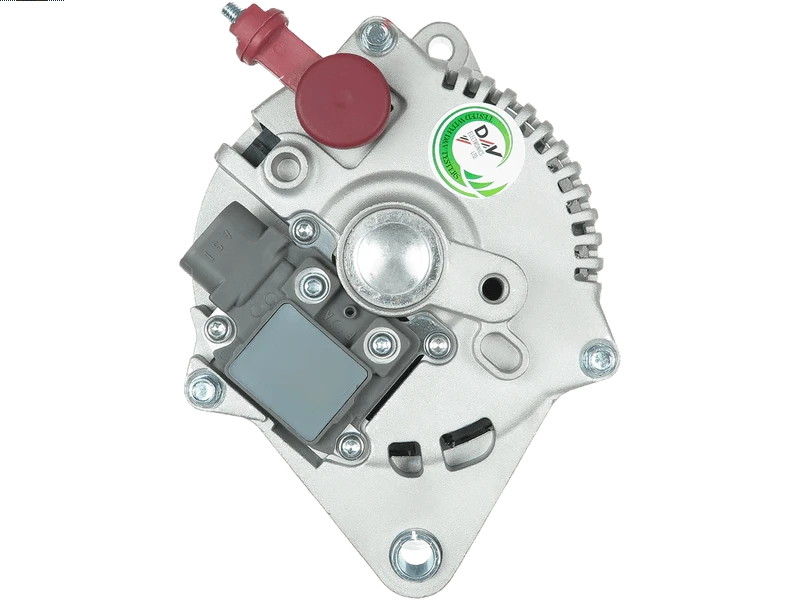

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
FORD
Retail Price:
NZ$ 391.31 including GST
NZ$ 340.27 excluding GST
or four payments of $97.83
with
Learn More
each
A9346S
4
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
- Related Items
Specifications
HAS 3 PIN PLUG
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 12.50 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 166 mm |
| Mount Inside Length or Pad Mount C-C (C) | 67 mm |
| OEM Product | No |
| Plug Code | PL_3101 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 12 mm |
| Pulley Outside Diameter (O.D.1) | 63 mm |
| Pulley Outside Diameter (O.D.2) | 84 mm |
| Pulley to Mount Distance (A) | 41 mm |
| Pulley Type | Solid |
| Unit Type | FORD |
| Voltage | 12 V |
