Associated Numbers
0986CR0996 Bosch ruil 0986UR0996 1012117020 Denso show 1012117020SEL +line 1012117120 12061119 EuroTec 13547 Lester 195558100 PSH 2353441002 DRI 2706046120 Toyota 286688 Elstock 290381 PIC 57582 EAI 90295218 Wilson 9062103F Friesen 933513 EDR 9761211702 AL3266X (USA) ALT6201 Unipoint DRA3513 Remy LRA03578 Lucas TNA063 TWA REFERENCES AC DELCO TOOLS 334-1220 ARROWHEAD AND0117 BOSCH 10464197 DENSO 101211-7020 101211-7120 210-0291 210-0292 9761211-702 J N ELECTRICAL PRODUCTS 400-52295 LESTER LUCAS ELECTRIC TOYOTA 27060-46120 27060-46120-84 27060-46121 dxa4023 anj012 65-8589 ANJ012 12v 100amps ALTERNATOR 1 UNIT Alternator 2706046121 A6659S - Similar A6659S-Similar 2706046170 2706046180 1012117260 1012119710 101211-9710 13748 27060-46180 AL3267X Delco 10464200 334-1300 101211-9711 210-0290 9661219-971 Picture ID 290-373 101211-7790 2706046260Specifications

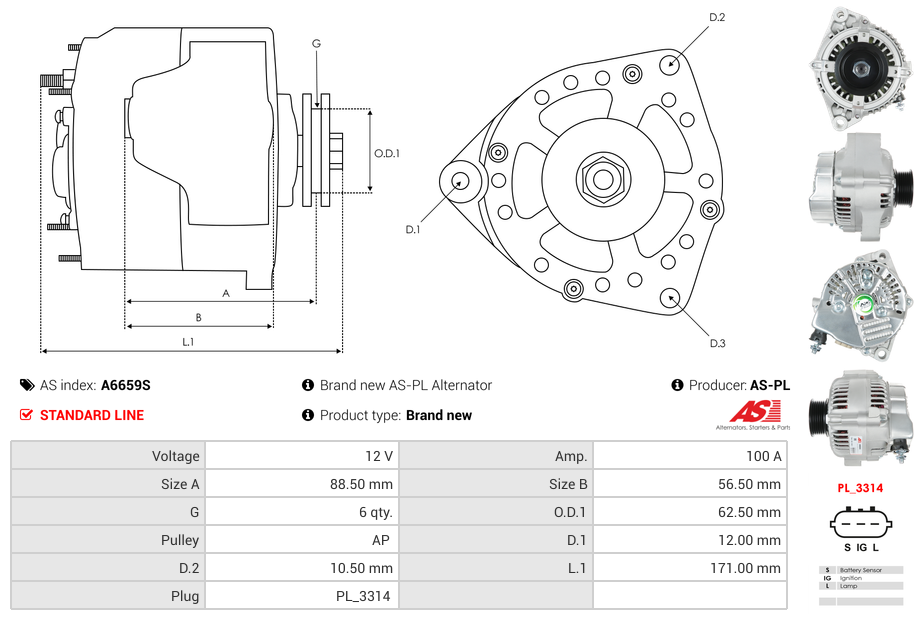

Some applications may need to reuse the original pulley
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 56.5 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 10.5 mm |
| Grooves | 6 qty |
| Length (L.1) | 171 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 62.5 mm |
| Plug Code | PL_3314 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 88.5 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A5 3.0 TDi Quattro | [CDUC] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro | [CKVB] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro | [CKVC] | 10.2011-01.2017 |
| TOYOTA | Avensis 2.0 D-4D | [1CD-FTV] | 01.1999-12.2003 |
| TOYOTA | Corolla 2.0 D-4D | [1CD-FTV] | 01.2002-12.2006 |
| TOYOTA | Previa 2.0 D-4D | [1CD-FTV] | 01.2001-12.2006 |
| TOYOTA | RAV4 2.0 D 4WD | [1CD-FTV] | 01.2001-12.2005 |
| TOYOTA | Supra 3.0 i Bi-Turbo | [2JZ-GTE] | 05.1993-07.2002 |
Reference Information
UD21083A 101211-7020 90-29-5218 101211-7340 MRA62103 40545 57582 9.44391E+11 195.558.100.050 20132841BN 27060-46120 CAL40148AS EAA-221898 A-8435 27060-46121 PRAF599 20132841OE 553337RID ALT30290 2040148 447165 10464197 27060-46270 270604-6280 A6659S 27060-46111 DRA3513 9761211702 ALT0C09 209383 101211-7120 LRA3578 ALT6309 ALN3020 2706046270 27060-46300 13547 89215694 CAL40148GS 2.70605E+11 ALT421480A LRA03578 2040148.1 DA4623 28-3813 13547R 27060-43220 ALT421480 13547N ALTF599 2706046300Video/Publications
UD21083A ALT0C09 ALTF599 PRAF599 CAL40148AS CAL40148GS 40545 DRA3513 DA4623 10464197 101211-7120 101211-7340 13547 A-8435 EAA-221898 57582 28-6688 209383 ALN3020 553337RID LRA03578 LRA3578 944390621030 MRA62103 89215694 195.558.100.050 20132841BN 20132841OE 2040148.0 2040148.1 ALT421480 ALT421480A 27060-46121 27060-46111 270604612084 270604-6280 9761211702 13547N 13547R 90-29-5218 ALT30290 101211-7020 27060-46120Add Your Number
