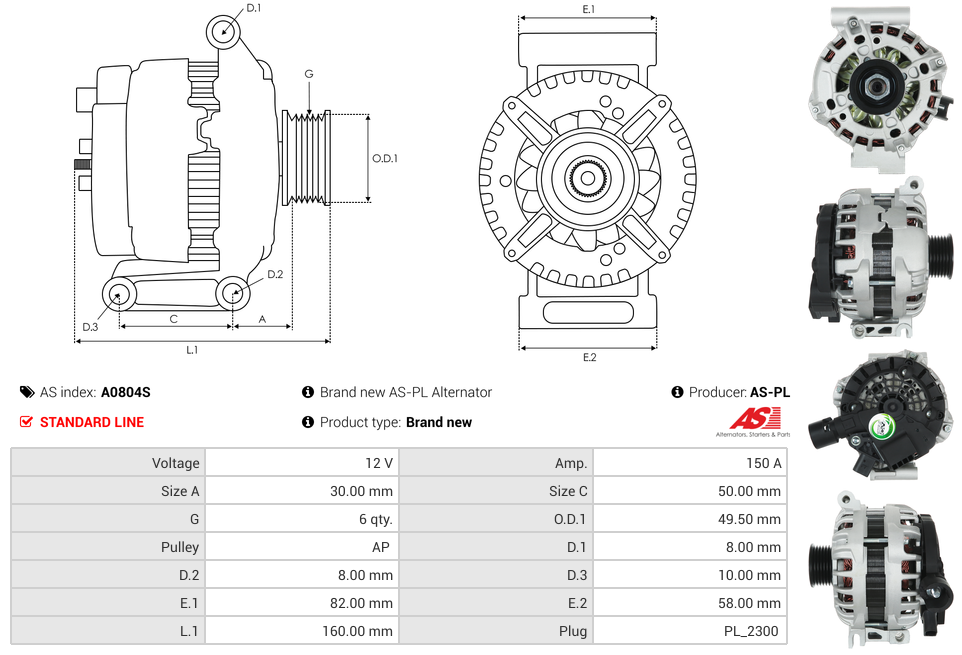

Specifications
| Amp | 150 A |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 10 mm |
| Grooves | 6 qty |
| Length (L.1) | 160 mm |
| Mount Inside Length or Pad Mount C-C (C) | 50 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 49.5 mm |
| Pad mount thickness (E.1) | 82 mm |
| Pad mount thickness (E.2) | 58 mm |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500X 1.6 | [55263842] | 11.2014- |
| FIAT | Tipo 1.6 | [55268036] | 07.2016- |
| FIAT | Tipo 1.6 | [55268036] | 10.2015- |
| JEEP | Renegade 1.6 | (EJH)[55263842] | 07.2014- |
Reference Information
505.914.150.280 40283 0F000BL07M3 LRA4196 UD19325A 0F000BL07M4 2010542.1 505.914.150.210 ALB3473 LRA04196 51942146 F000BL07M4 DRA1594 F000BL07M3 AEG1401 71796437 28-7805 20101245OE CAL10542GS 554525RIBVideo/Publications
71796437 F000BL07M3 F000BL07M4 UD19325A 554525RIB AEG1401 505.914.150.210 505.914.150.280 CAL10542GS 40283 28-7805 51942146 LRA04196 LRA4196 20101245OE 2010542.1 DRA1594 ALB3473Add Your Number
