Associated Numbers
0125711014 0125711040 0125711048 0986082560 11347N 115606 28-6800 31288879 36001497 554291RI 554291RIB 815.538.150 89215547 9423 A-6561 AEK3098 AEK3639 AG1249 ALB1014 ALT2144CP AM5T-10300-SA BOS0125711048 DA2144 DRA1034 EAA-223206 LRA03660 UD13506A
0125711014
BOSCH 0125711040
BOSCH 0125711048
BOSCH 0986082560
BOSCH 8256
FORD AM5T10300SA
LUCAS LRA03660
LUCAS LRA3660
VOLVO 31288879
VOLVO 36001497
ARROWHEADBAL0893N
BOSCH0-125-711-014, 0-125-711-040, 0-125-711-048, AL0893N, AL0893X
FORDAM5T-10300-SA
LESTER11568
LUCAS ELECTRICLRA03660
VOLVO31288879, 36001497
ALTE419 3EFFE
ALTE419B 3EFFE
PRAE419 3EFFE
CGB-86800 AINDE
UD13506A AS-PL
AEK3098 AUTOELECTRO
AEK3639 AUTOELECTRO
0125711014 BOSCHList
0125711040 BOSCHList
0125711048 BOSCHList
0986082560 BOSCH
115606 CARGO
9423 CEVAM
DA2144 DELCO
DRA1034 DELCO
A-6561 DIXIE
EAA-223206 EAA
28-6800 ELSTOCK
AM5T-10300-SA FORDList
AG1249 GHIBAUDI
CA1967IR HC PARTS
ALB1014 KRAUF
554291RI KUHNER
554291RIB KUHNER
LRA03660 LUCAS
LRA3660 LUCAS
89215547 POWERMAX
815.538.150 PSH
ALT2144CP ROLLCO
31288879 VOLVOList
36001497 VOLVOList
11347N WAI / TRANSPO
BOS0125711048 WOODAUTO
0125711014 Bosch
0125711040 Bosch
0125711048 Bosch show
0125711048OR +line
0986082560 Bosch ruil
12090343 EuroTec
286800 Elstock
31288879 Volvo
36001497 Volvo
815538150 PSH
931034 EDR
AL0893N Bosch (USA)
AL0893X Bosch (USA)
AM5T10300SA Electrolog
DRA1034 Remy
F00E100569 Bosch
LRA03660 Lucas
Specifications
Fitted with OEM Regulator and INA Clutch Pulley (if fitted)
| Amp | 150 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9 mm |
| Grooves | 5 qty |
| Length (L.1) | 168 mm |
| Mount Inside Length or Pad Mount C-C (C) | 90.5 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 56 mm |
| Pad mount thickness (E.1) | 33 mm |
| Pad mount thickness (E.2) | 33 mm |

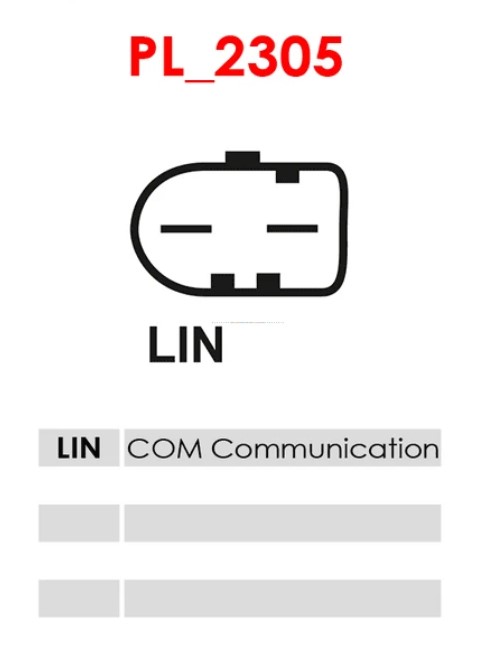

| Plug Code | PL_2305 |
| Product Line | +Plus Line Pro |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | CLUTCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Kuga 2.5 | [HYDB] | 03.2009-11.2012 |
| FORD | Kuga 2.5 | [HYDC] | 03.2009-11.2012 |
| FORD | Kuga 2.5 4x4 | [HYDB] | 02.2008-11.2012 |
| VOLVO | C30 2.0 D3 | [D5204T5] | 03.2007-12.2012 |
| VOLVO | C30 2.0 D4 | [D5204T] | 03.2007-12.2012 |
| VOLVO | C30 2.4 D5 | [D5244T13] | 03.2007-12.2012 |
| VOLVO | C30 2.4 D5 | [D5244T8] | 03.2007-12.2012 |
| VOLVO | C30 2.4 D5 | [D5244T9] | 03.2007-12.2012 |
| VOLVO | C30 2.4 i | [B5244S4] | 03.2007-12.2012 |
| VOLVO | C30 2.5 T5 | [B5254T3] | 03.2007-12.2012 |
| VOLVO | C30 2.5 T5 | [B5254T7] | 03.2007-12.2012 |
| VOLVO | C70 2.0 D3 | [D5204T5] | 10.2010-06.2013 |
| VOLVO | C70 2.0 D4 | [D5204T] | 10.2010-06.2013 |
| VOLVO | C70 2.4 | [B5244S5] | 03.2006-10.2009 |
| VOLVO | C70 2.4 D | [D5244T9] | 03.2007-06.2013 |
| VOLVO | C70 2.4 D5 | [D5244T13] | 03.2006-06.2013 |
| VOLVO | C70 2.4 D5 | [D5244T8] | 03.2006-06.2013 |
| VOLVO | C70 2.4 i | [B5244S4] | 03.2006-10.2009 |
| VOLVO | C70 2.5 T5 | [B5254T3] | 03.2006-02.2007 |
| VOLVO | C70 2.5 T5 | [B5254T7] | 03.2007-10.2009 |
| VOLVO | S40 2.0 D3 | [D5204T5] | 10.2010-12.2012 |
| VOLVO | S40 2.0 D4 | [D5204T] | 10.2010-12.2012 |
| VOLVO | S40 2.4 | [B5244S4] | 01.2004-12.2012 |
| VOLVO | S40 2.4 | [B5244S5] | 01.2004-12.2010 |
| VOLVO | S40 2.4 D5 | [D5244T13] | 03.2006-12.2010 |
| VOLVO | S40 2.4 D5 | [D5244T8] | 03.2006-12.2010 |
| VOLVO | S40 2.5 T5 | [B5254T3] | 01.2004-12.2007 |
| VOLVO | S40 2.5 T5 | [B5254T7] | 03.2007-12.2012 |
| VOLVO | S40 2.5 T5 AWD | [B5254T3] | 04.2004-12.2007 |
| VOLVO | S40 2.5 T5 AWD | [B5254T7] | 03.2007-12.2010 |
| VOLVO | V40 2.0 D3 | [D5204T6] | 03.2012-03.2015 |
| VOLVO | V40 2.0 D4 | [D5204T4] | 03.2012- |
| VOLVO | V40 2.0 T5 | [B5204T9] | 03.2013-12.2015 |
| VOLVO | V50 2.0 D3 | [D5204T5] | 10.2010-12.2012 |
| VOLVO | V50 2.0 D4 | [D5204T] | 10.2010-12.2012 |
| VOLVO | V50 2.4 | [B5244S4] | 04.2004-12.2010 |
| VOLVO | V50 2.4 | [B5244S5] | 04.2004-12.2010 |
| VOLVO | V50 2.4 D5 | [D5244T13] | 03.2006-12.2010 |
| VOLVO | V50 2.4 D5 | [D5244T8] | 03.2006-12.2010 |
| VOLVO | V50 2.4 TDi | [D5244T9] | 05.2007-12.2010 |
| VOLVO | V50 2.5 T5 | [B5254T3] | 04.2004-12.2007 |
| VOLVO | V50 2.5 T5 | [B5254T7] | 03.2007-12.2012 |
| VOLVO | V50 2.5 T5 AWD | [B5254T3] | 04.2004-12.2007 |
| VOLVO | V50 2.5 T5 AWD | [B5254T7] | 03.2007-12.2010 |
Reference Information
0125711014 0125711040 0125711048 0986082560 11347N 115606 28-6800 31288879 36001497 554291RI 554291RIB 815.538.150 89215547 9423 A-6561 AEK3098 AEK3639 AG1249 ALB1014 ALT2144CP AM5T-10300-SA BOS0125711048 DA2144 DRA1034 EAA-223206 LRA03660 UD13506AAdd Your Number
