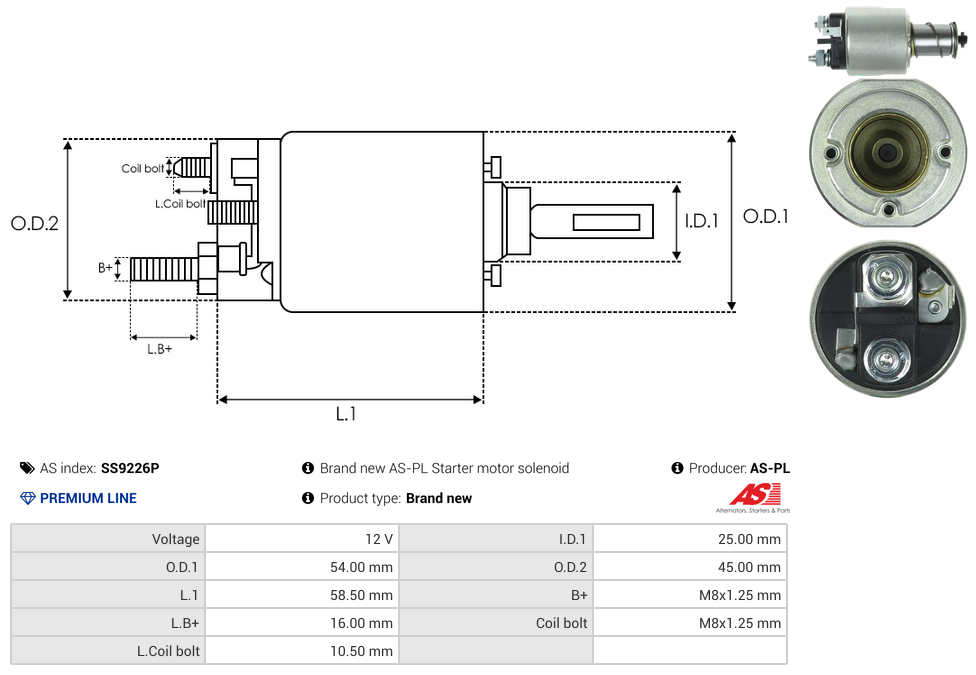

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 10.5 mm |
| Inside Diameter (I.D.1) | 25 mm |
| L.B+ | 16 mm |
| Length (L.1) | 58.5 mm |
| Outside Diameter (O.D.1) | 54 mm |
| Outside Diameter (O.D.2) | 45 mm |
| Type | Solenoid |
| Unit Type | DELCO |
| Voltage | 12 V |
Reference Information
SS9226P SOLX067 ZM6491Video/Publications
SS9226P 24518889 ZM6491Add Your Number
