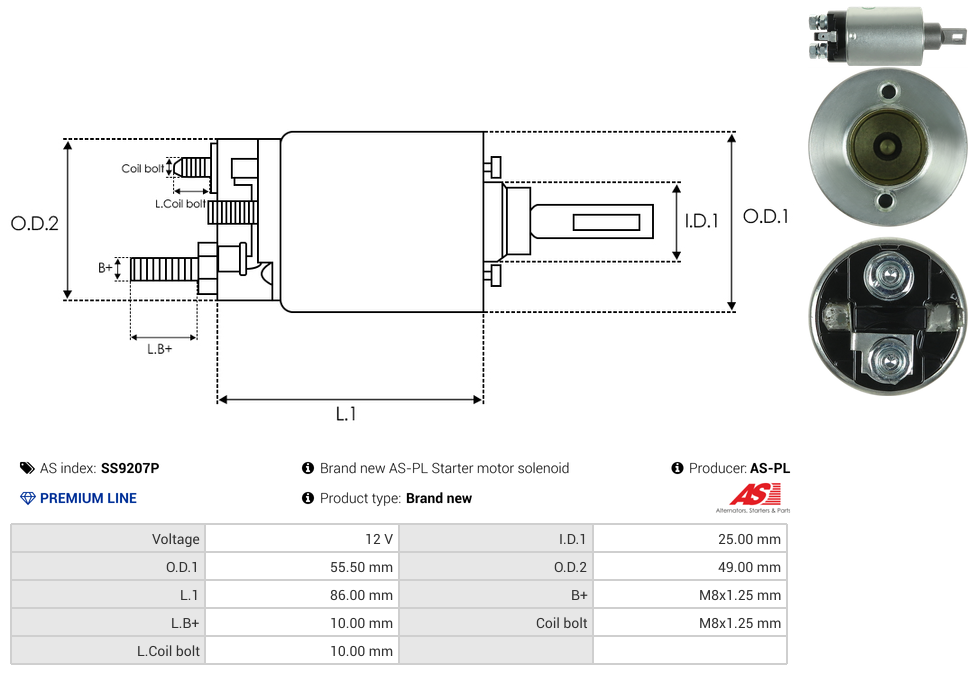

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 10 mm |
| Inside Diameter (I.D.1) | 25 mm |
| L.B+ | 10 mm |
| Length (L.1) | 86 mm |
| Outside Diameter (O.D.1) | 55.5 mm |
| Outside Diameter (O.D.2) | 49 mm |
| Type | Solenoid |
| Unit Type | HYUNDAI / KIA |
| Voltage | 12 V |
Reference Information
SS9207P 227131 ZM1891Video/Publications
SS9207P 227131 MG122565 OK60118400 OK60A18400 ZM1891Add Your Number
